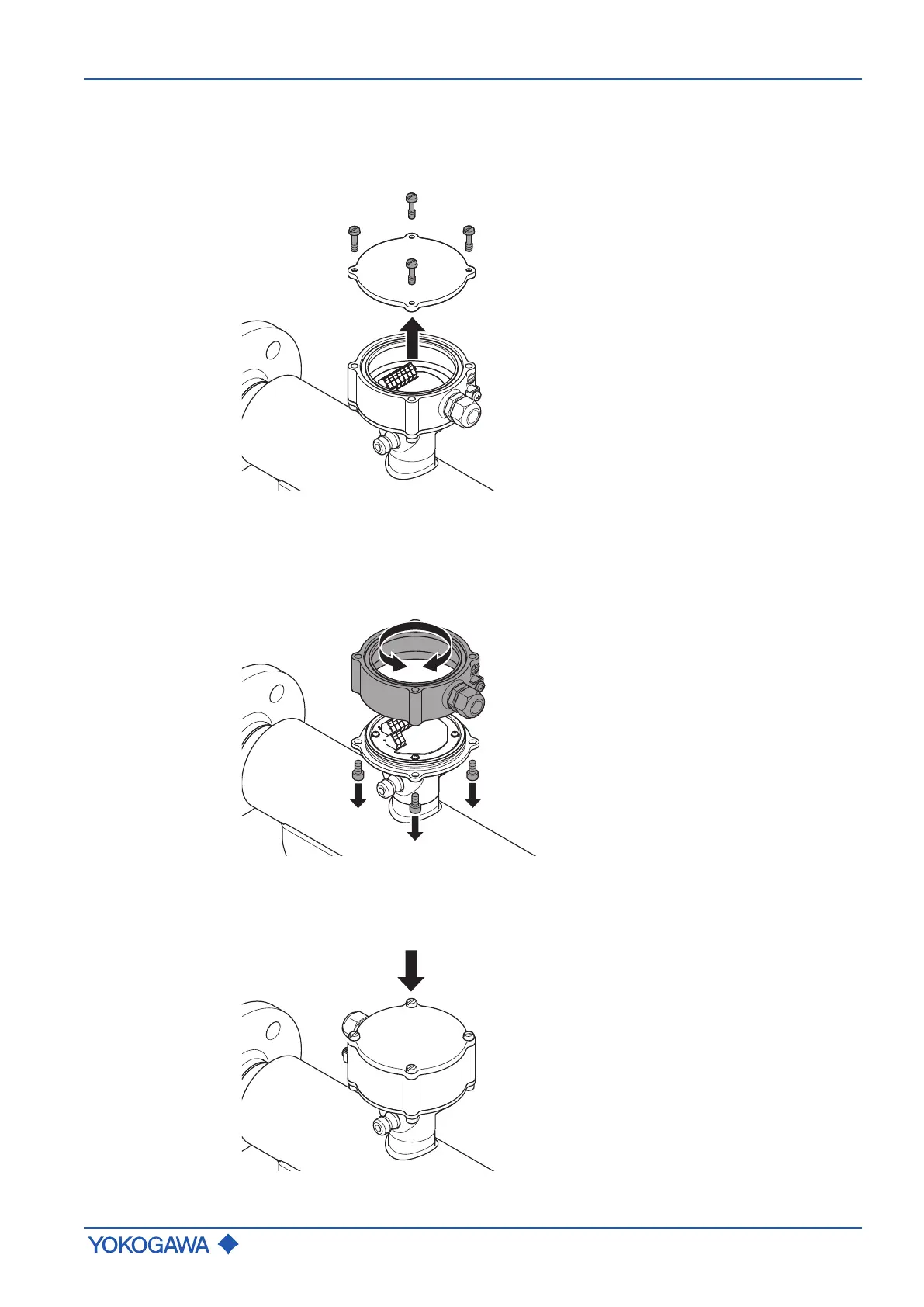

7.2.3.3 Rotating the terminal box (remote type)
The terminal box can be installed in any one of four orientations.
1. Loosen the four fixing screws and remove the cover.
2. Remove the cables so that none of the cables inside can accidentally become
trapped and damaged.
3. By using an Allen wrench, remove the bottom fixing screws and rotate the terminal
box at an angle of 90°, 180° or 270°.
4. Place the terminal box and tighten the bottom fixing screws using a minimum torque
of 7.4Nm.
5. Attach the cover and tighten the fixing screws using a minimum torque of 7.4Nm.
