Quick Reference Instruction Manual for Spare
Transmitter replacement
Dismantling of the defective transmitter
32 / 76
IM01U10A01-00EN-R, 1
st
edition, 2019-12-09

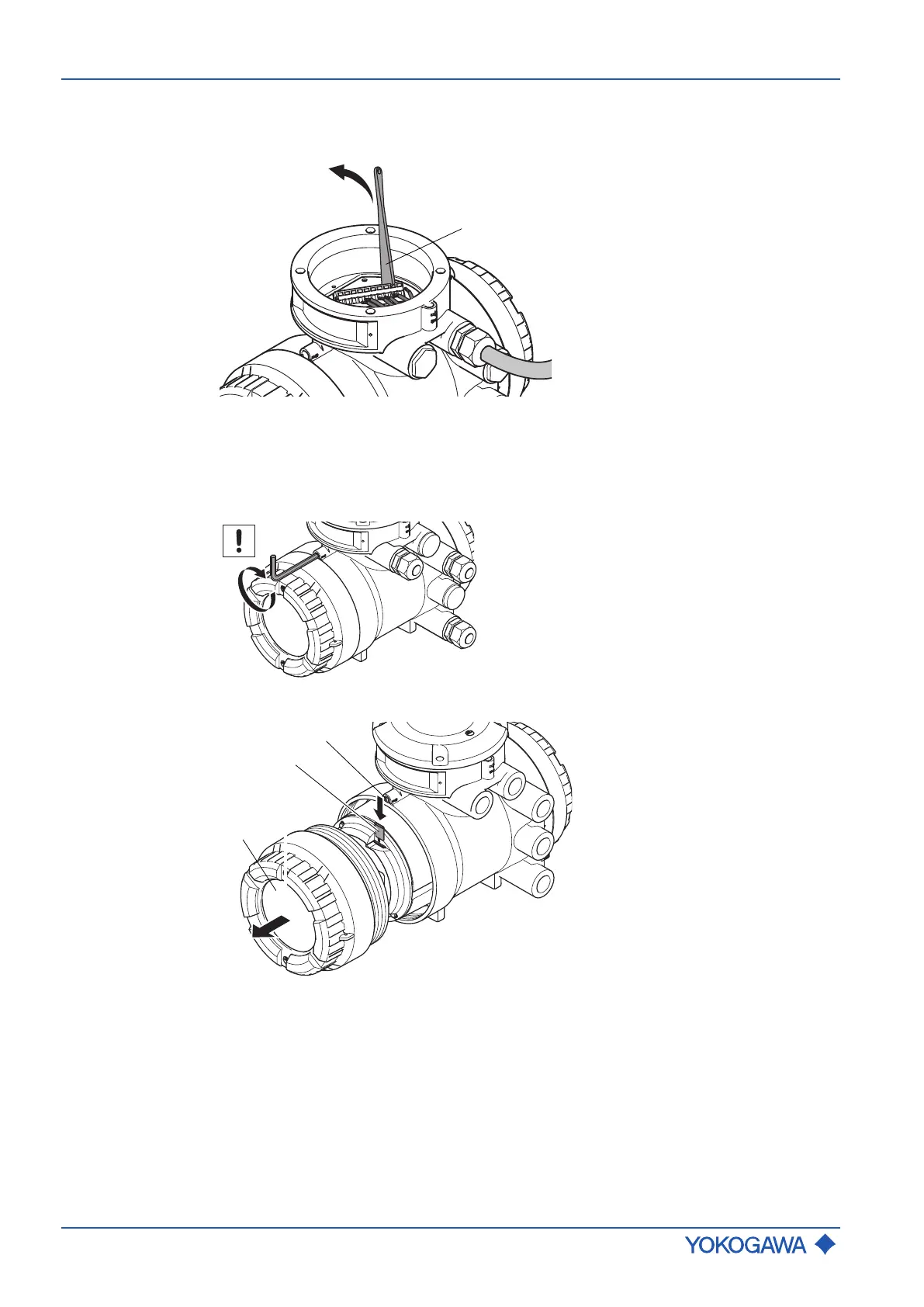

4. Disconnect all wires from the transmitter with the operating tool.
7.1.5 Remove microSD card (transmitter with display only)
In case of defective transmitter with display the microSD card can be used to set up the
Spare transmitter by following the procedure after removal of transmitter:
1. Remove locking screw of the front cover
2. Unscrew the front cover and remove the microSD card
1 Front cover
2 microSD card
3 Locking screw
