Dismantling of the defective transmitter
Quick Reference Instruction Manual for Spare
Transmitter replacement
IM01U10A01-00EN-R, 1
st
edition, 2019-12-09
31 / 76

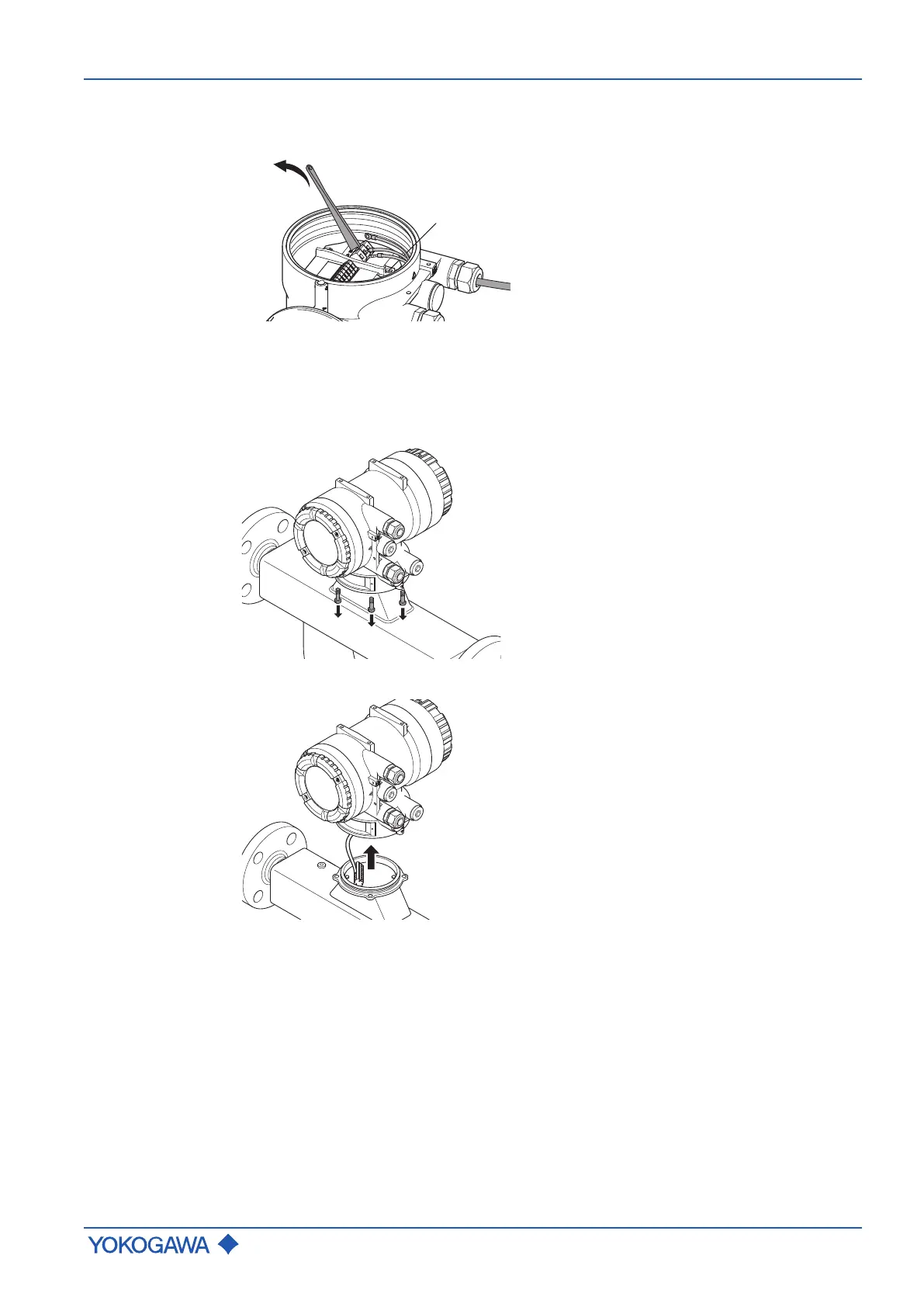

4. Disconnect the power cables from L/+ and N/- “Power supply connection terminals”.
5. Remove “Grounding screw for connecting grounding conductor”.
6. Remove potential equalization from “Grounding terminal for potential equalization” (if
used).
Remove defective
transmitter and
disconnect from
sensor
1. After disconnection the transmitter is removed by unscrewing the four clamping bolts.
2. Lift the transmitter housing:
3. Turn the transmitter housing around for disconnection.
