7 Transmitter replacement
7.1 Dismantling of the defective transmitter
The defective Rotamass Total Insight transmitter has to be dismantled. The dismantling
flow depends on the flow meter type (integral or remote).
The rules according to the Explosion Proof Type Manual IM 01U10X0 ˽ -00 ˽ ˽ -R apply,
especially the chapter “Operation, maintenance and repair”.
7.1.1 Connecting interfaces
Transmitter
1
2
6
5
3
4

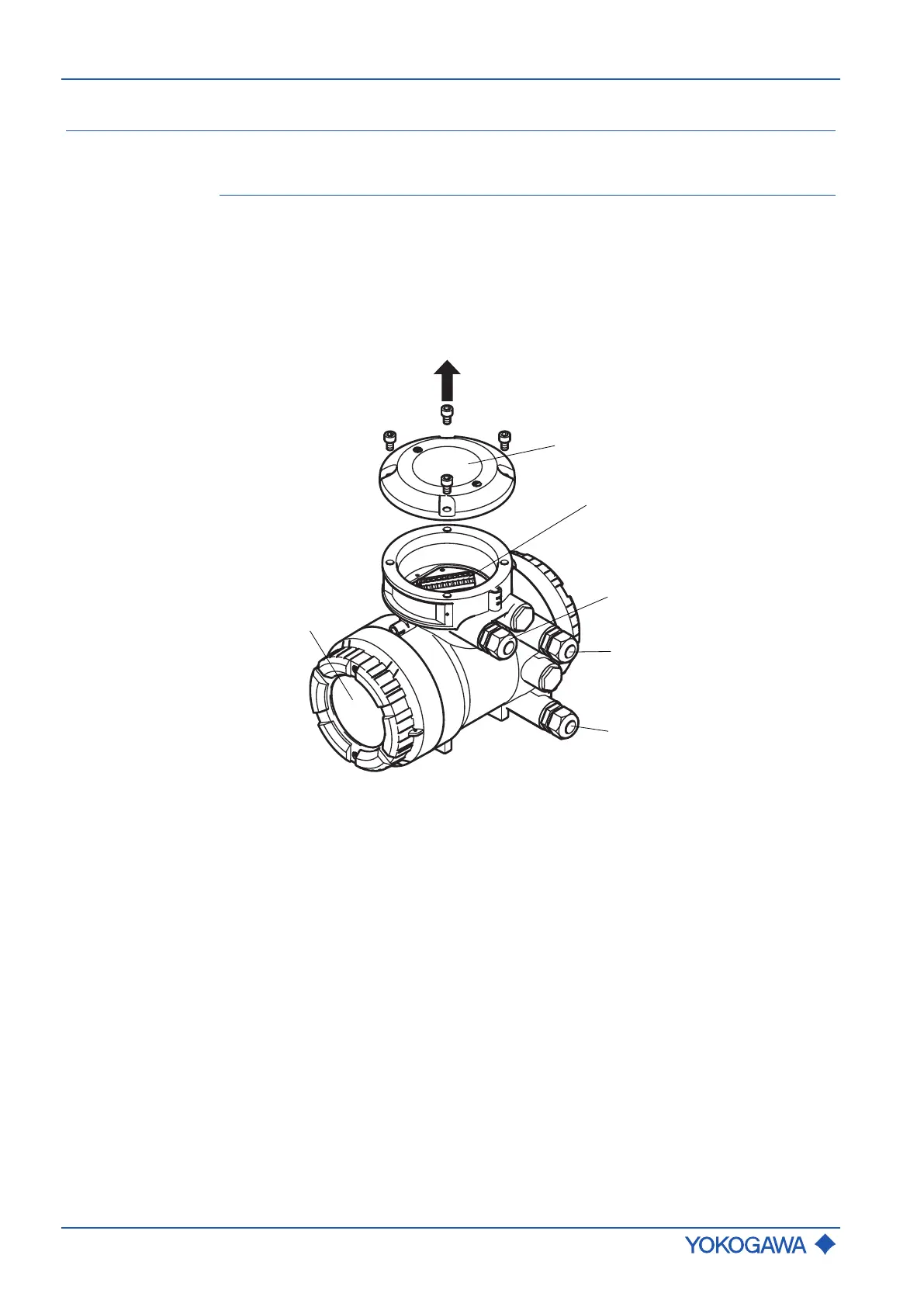

Fig.18: Connecting interfaces on transmitter
1 Terminal box cover (remote type only)
2 Terminal box sensor connection
3 Sensor communication cable entry (remote type only)
4 Communication cable entry
5 Power supply cable entry
6 Display, if available
