YOKOGAWA ROTAMASS Total Insight - 6.6 Installation check list

Installation of the Spare transmitter
Quick Reference Instruction Manual for Spare
Transmitter replacement
IM01U10A01-00EN-R, 1
st
edition, 2019-12-09
41 / 76

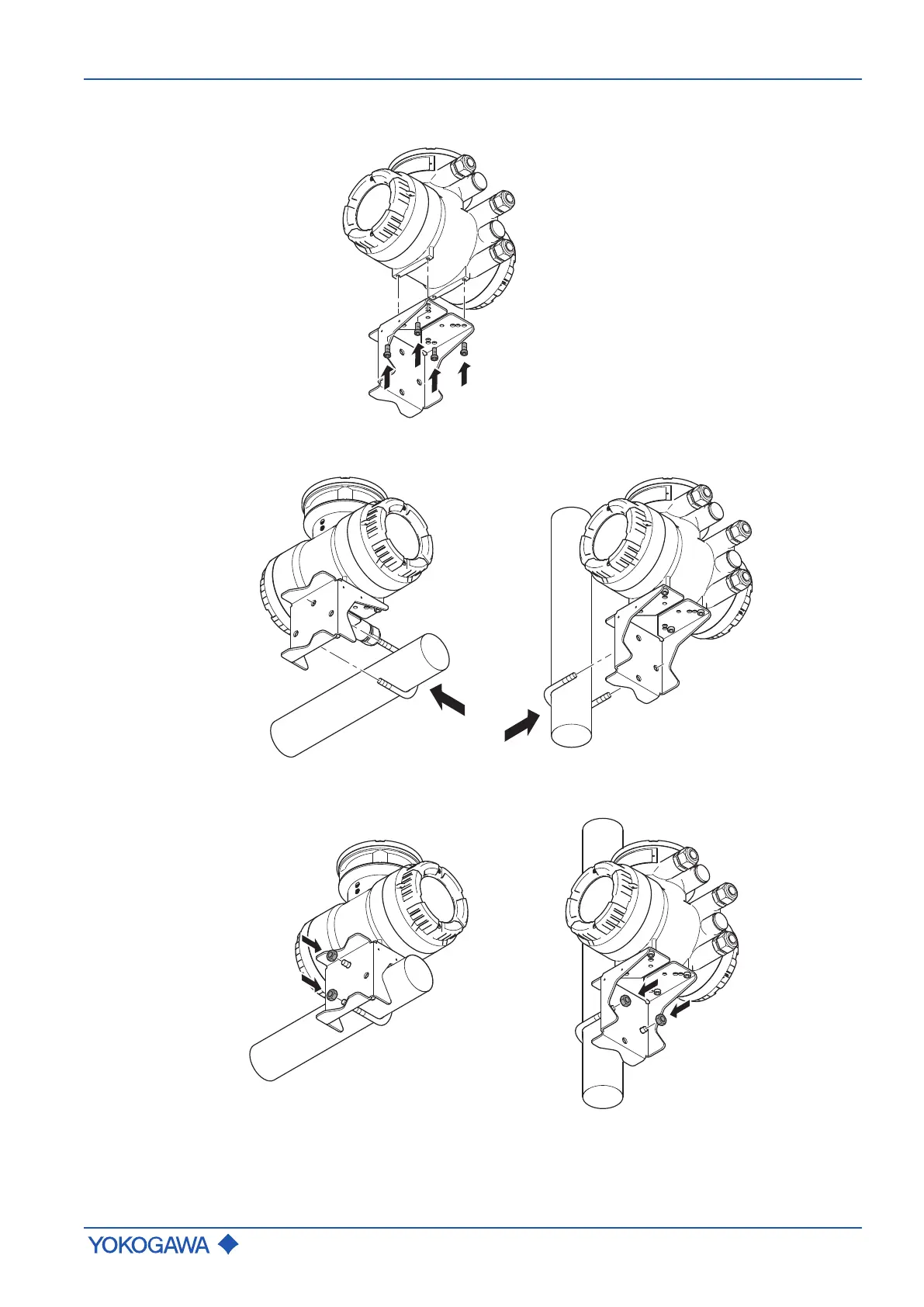

1. Screw angle bracket to bottom of transmitter.
2. Place retaining clip around pipe and slide through drill holes on angle bracket.
3. Fasten retaining clip to bracket using the nuts.
