Safety Requirement Standards
EN61010-1, C22.2 No.61010-1
• Altitude of installation site:
Max. 2,000 m above sea level
• Installation category: I
(Anticipated transient overvoltage 330 V)
• Pollution degree: 2
• Indoor/Outdoor use
EN61010-2-030, C22.2 No.61010-2-030
• Measurement category: O (Other)
(Measurement Input voltage: 150mVdc max)
EU RoHS Directive
Applicable standard: EN 50581
Applicable production sites is shown below.
The production sites of the RoHS compliant
product are conrmed by the serial number
shown in the frame of “NO.” in the name plate of
the product.
Serial numbers (9 letters): NNYMnnnnn
NN: Identication code of production site.
Use “C2 or U1”
Y: Year of production
2015: Use “R” 2016: Use “S”
2017: Use “T” 2018: Use “U”
2019: Use “V”
M: Month of production
January to September: Use “1” to “9”
(January: 1, September: 9).
October: Use “A”. November: Use “B”.
December: Use “C”.
nnnnn: 5-digit number assigned sequentially
in each production date by the production
site.
 Normal Operating Condition
(Optional features or approval codes may affect
limits.)
Ambient Temperature Limits
–40 to 85°C (–40 to 185°F)
–30 to 80°C (–22 to 176°F) (with indicator
model)
Ambient Humidity Limits
0 to 100% RH at 40°C (104°F)
Supply Voltage Requirements
HART and BRAIN Type
10.5 to 42 V DC for general use and
ameproof type
10.5 to 32 V DC for lightning protector (option
code /A)
10.5 to 30 V DC for intrinsically safe and
non-incendive type
Minimum voltage limited at 16.6 V DC for
digital communications HART and BRAIN
With 24 V DC supply, up to a 550Ω load can
be used. See graph below.
E-10.5
0.0244
(Ω)
Power supply voltage E (V)
600
250
R
10.5 16.6
25.2 42
External
load
resistance
Digital
Communication
range
HART and BRAIN
R=
F0701.ai

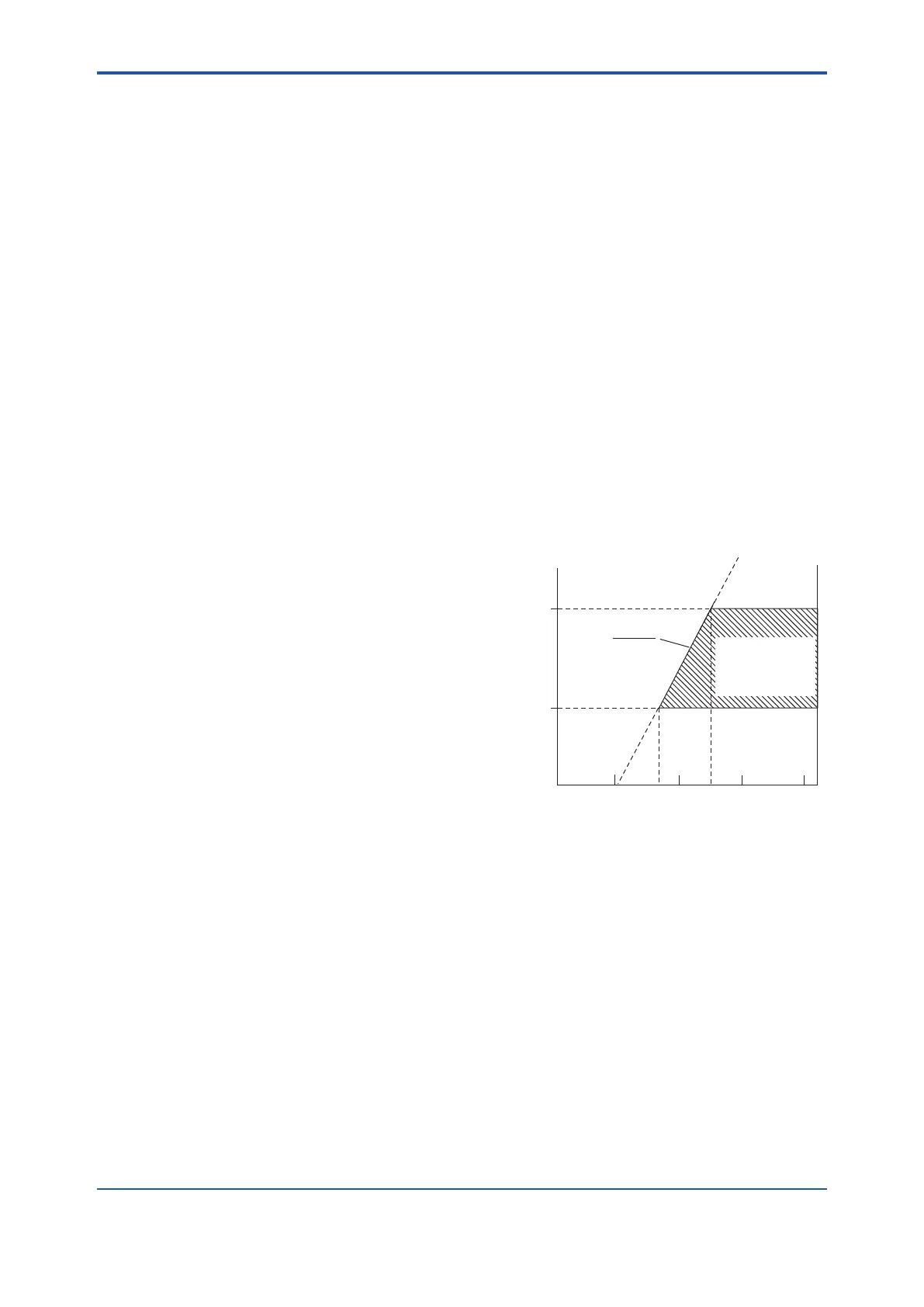

Figure 7.1 Relationship Between Power Supply
Voltage and External Load Resistance
Fieldbus Type
9 to 32V DC for general use, ameproof
type, and non-incendive type
9 to 30 V DC for intrinsically safe type
9 to 17.5 V DC for FISCO eld device
Communication Requirements
Supply Voltage: 9 to 32 V DC
Current Draw:
Steady state: 15 mA (max)
Software download state: 24 mA (max)
