York YCIV Series - Isolator Information for Units Shipped before June 15, 2008

JOHNSON CONTROLS
156
FORM 201.23-NM2
ISSUE DATE: 09/25/2020
SECTION 6 - TECHNICAL DATA
SLRS SEISMIC ISOLATOR SPECIFICATIONS
ISOLATOR INFORMATION FOR UNITS SHIPPED BEFORE JUNE 15, 2008
PIN 54 = S
*WEIGHT RANGE (LB) *WEIGHT RANGE (KG) VENDOR P/N COLOR YORK P/N
Up to 358 Up to 162 SLRS-2-C2-420 Red 029-24585-006
358–442 162–201 SLRS-2-C2-520 White 029-24585-007
443–581 201–264 SLRS-2-C2-660 Black 029-24585-008
582–782 264–335 SLRS-2-C2-920 Blue 029-24585-009
783–1037 335–471 SLRS-2-C2-1220 Green 029-24585-010
1038–1496 471–679 SLRS-2-C2-1760 Gray 029-24585-011
1497–2057 679–933 SLRS-2-C2-2420 Silver 029-24585-012
2058–2618 933–1188 SLRS-2-C2-3080 Gray w/ Red 029-24585-013
2619–3179 1188–1442 SLRS-2-C2-3740 Silver w/ Red 029-24585-014
* Value is de-rated by 15%

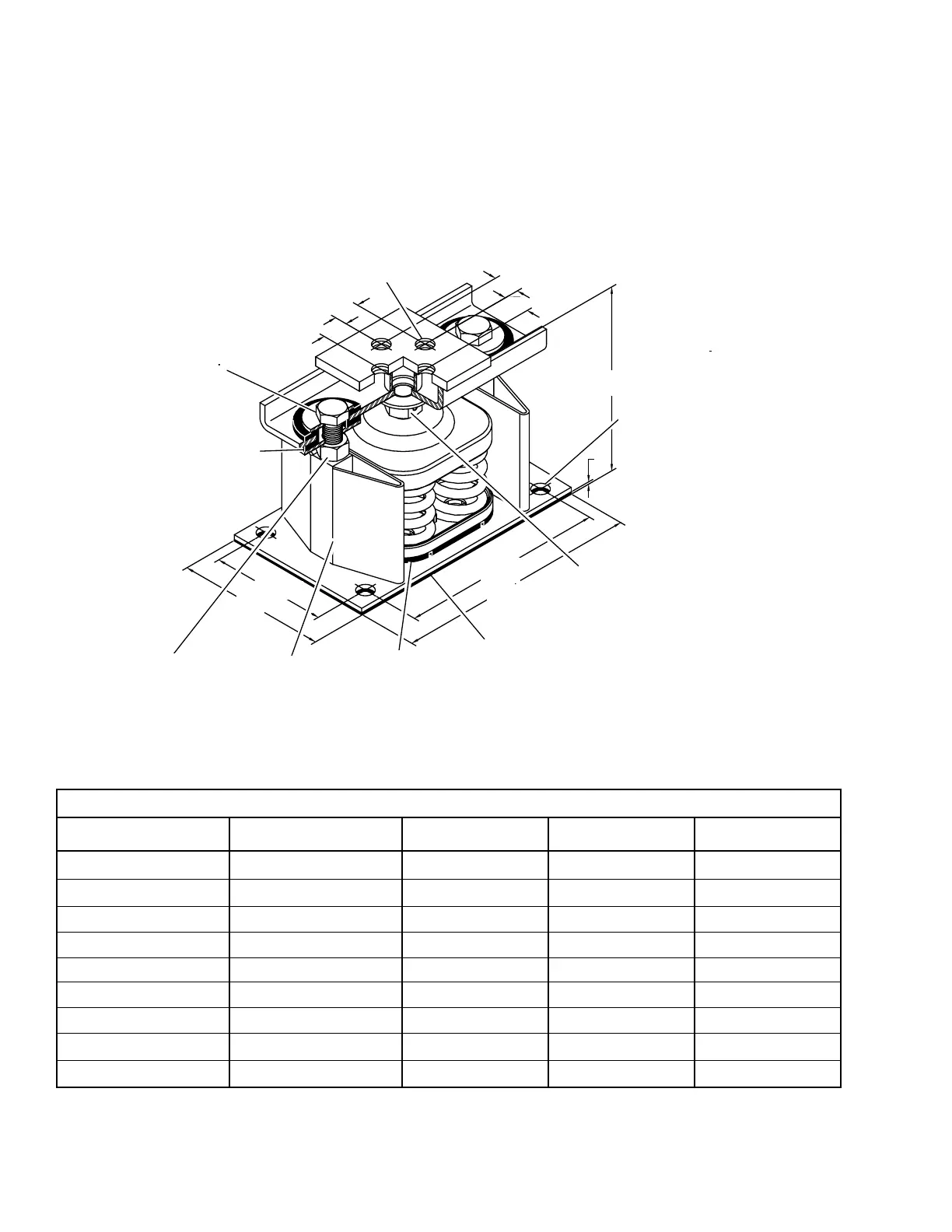

Notes: Illustration above shows a SLRS-4-C2 (4 Springs). SLRS-8-2 and C2 have one spring, and SLRS-2-C2 has two springs.
SLRS-6-C2 has six springs and SLRS-9-C2 has nine springs.
E
E
E
E
H
T
HCW
W
L
HCL
"D" Tap - 4 Holes unless
otherwise requested
Adjustment
Bolt
Vertical Limit
Stops-Out of
contact during
normal operation
Non-Skid Neoprene Pad-
Pad can be removed if
mounts are welded
into position.
Enclosed
Steel
Housing
Internal
Neoprene
Acoustical
Pad
Lower
Restraining
Nut
Rubber
Snubbing
Collar
MBD -Max
Bolt
Diameter
LD10509
“D” Tap - 4 Holes unless
otherwise requested.
Vertical Limit Stops-Out
Of Contact During Normal
Operation
Rubber Snubbing
Collar
Lower
Restraining
Nut
Enclosed Steel
Housing
Internal Neoprene
Acoustical Pad
Adjustment Bolt
MDB - Max Bolt
Diameter
Non-skid Neoprene
Pad - Pad can be
removed if mounts are
welded into position.
L
W
E
E
H
T
E
E
HCL
HCW
UNITS SHIPPED BEFORE JUNE 15, 2008
