ZAON PCAS XRX - Controls & Functions; Carry Case

Customer Service 800-496-9430 | www.zaon.aero
SETUP10

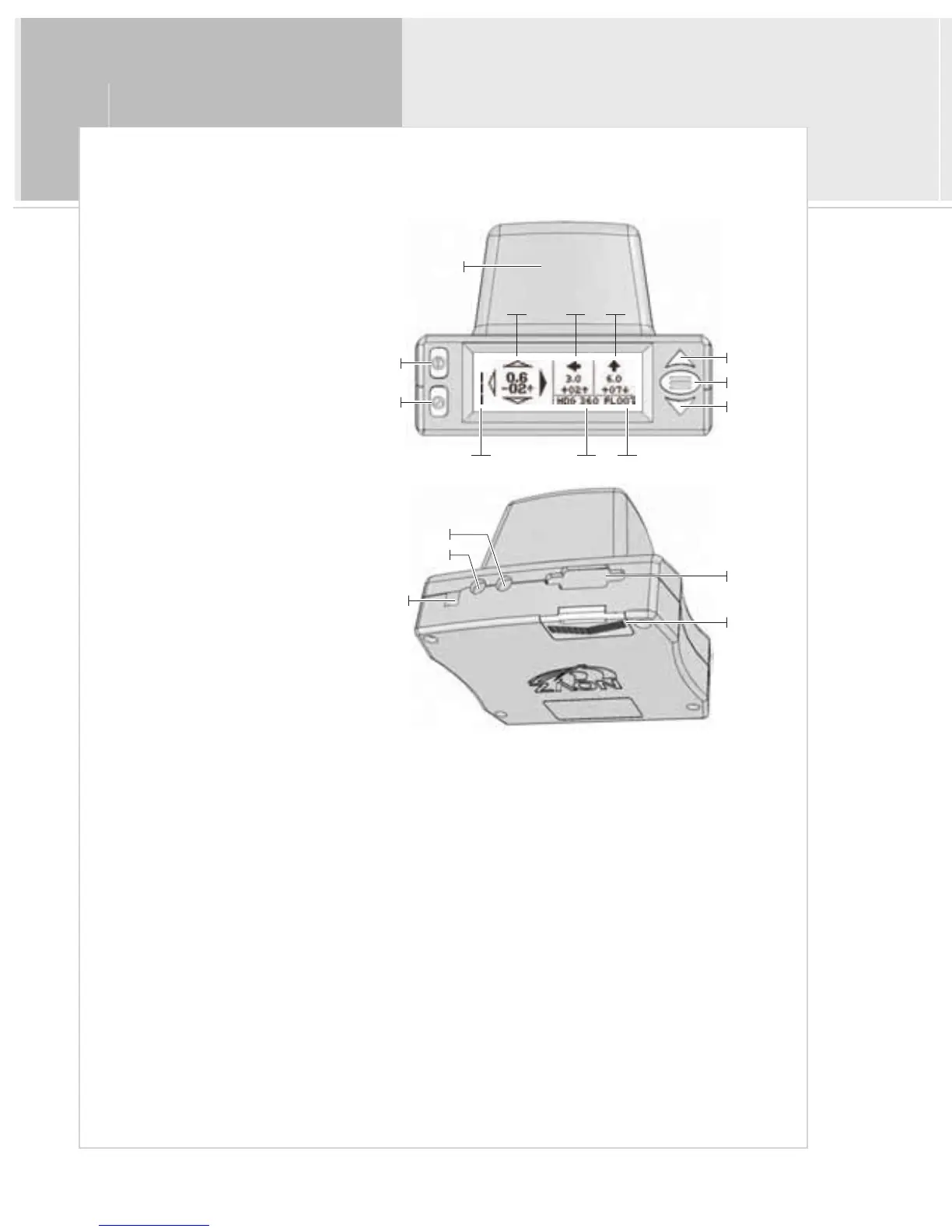

Controls & Functions
Description Page
1 > Directional antenna array 8
2>Power button 37
3 > Mute button 37
4>Primary Aircraft 12
5 > Secondary Aircraft #1 12
6>Secondary Aircraft #2 12
7 > Up button 37
8>Menu button 37
9 > Down button 37
10 > Volume level indicator 37
11 > Local Heading 14
12 > Local Altitude 14
13 > Power Input (12-40 VDC) 5
14 > Audio Out 7
15 > Audio In 6
16 > RS-232 Connection 42, 59
17 > Config. switches hatch 59
Carry Case
A hard carrying case is included for your XRX. This case is designed to carry all of your accessories and to protect your
XRX from damage and the elements. The carrying case is not waterproof. Care is needed when leaving the case
exposed to the elements.
To clean the carrying case, use a towel and a minor detergent solution or glass cleaner. Do not use harsh abrasives or
chemical solutions as this will damage the case.
4 5 6
10
7
8
9
16
17
2
1
3
11 12
13
14
15
Front View
Rear / Bottom View
