AF6ZP0CA – COMBIAC0 & ACE0 2uC – User Manual Page – 153/155

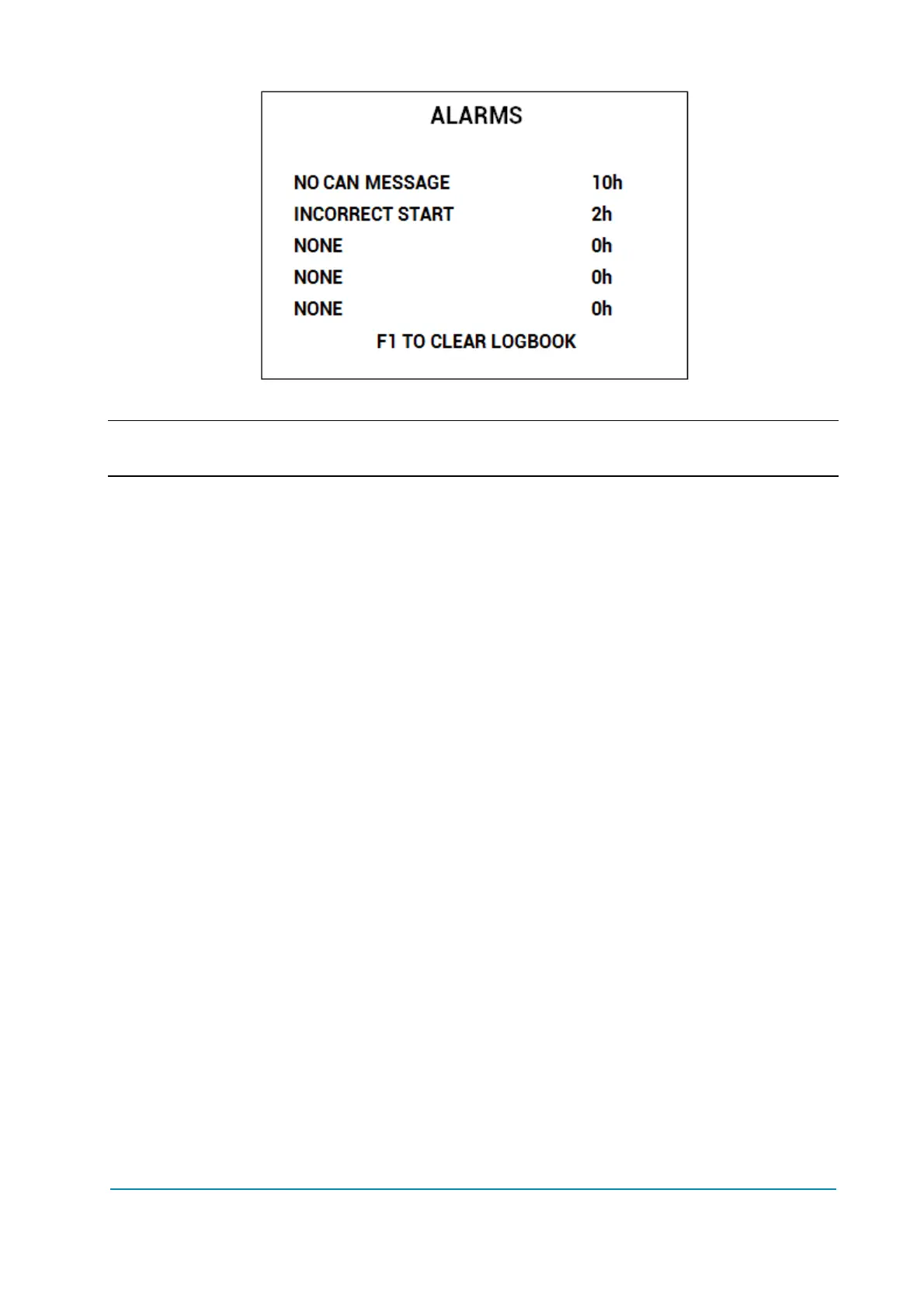

4 Five is the maximum number of alarm codes which is stored inside the controller.
Colors are used to separate recurrent alarm codes from rare events. In order of
increasing frequency, alarm names can be:
White: up to 5 occurrences.
Yellow: up to 20.
Orange: up to 40.
Red: more than 40.
Use UP/DOWN to select a certain alarm in the list: if OK is pressed, additional
information about that alarm will be displayed.
Press F1 to cancel the alarm logbook of the controller: once pressed, the console
will ask for confirmation.
13.2.11 Download parameter list to USB stick
When Smart Console is connected to a controller, it has the possibility to
download all parameters inside a USB stick.
To use this function, enter the menu SAVE PARAMETER USB in the MAIN
MENU.
File format
The complete list of parameters is saved as a .csv file in order to be opened with
Microsoft Excel® or any other spreadsheet generator tool.
The file is formatted in the same way as if it has been created with the PC CAN
Console. Thus it contains the whole list of parameter and, for each parameter,
various kinds of information are available, in particular:
Parameter value as it is saved within controller (“Value” column)
Parameter value as it is shown by console or similar tools (“Scaled Value”
column)
Name of the menu where parameter is placed tools (“Name menu”
column)
File name is generated as a hexadecimal code of the time and date of save.
This codification prevents any overwrite of previously saved files.
