2-Slot WT6000/RS6000 Charging Cradle
The 2-Slot WT6000/RS6000 Charging Cradle:
• provides 5.4 VDC (nominal) power for operating the WT6000 and RS6000.
• provides USB communication with a host computer

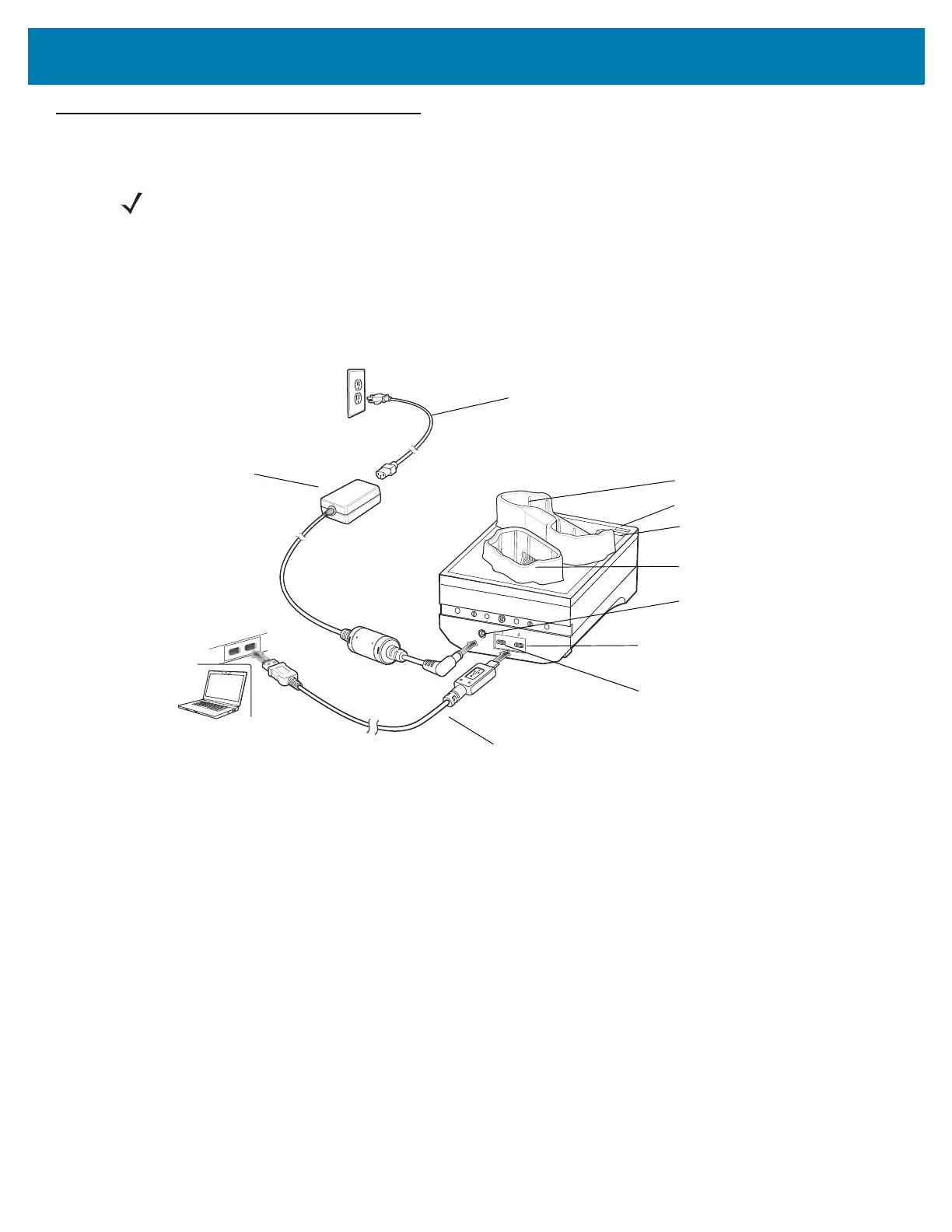

Figure 12 2-Slot WT6000/RS6000 Charging Cradle Setup
Charging the WT6000
1. If charging a WT6000 with a standard battery, insert either end of the WT6000 into the WT6000 charging slot.
NOTE: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 154.
AC Line Cord
Power Supply
USB Cable
Power Input
WT6000 USB Port
RS6000 Charging LED
RS6000 Charging Slot
WT6000 Charging Slot
WT6000 Charging LED
RS6000 USB Port
