Accessories
61
4-Slot Battery Charger Wall Installation
Use the Rack/Wall Mount Bracket to mount four 4-Slot Battery Chargers a cradle on a wall. When installing on a
wall, first assemble the bottom tray, install the bottom tray on the wall and then assemble the top tray.
Use mounting hardware (screws and/or anchors) appropriate for the type of wall mounting the bracket onto. The
Mount Bracket mounting slots dimensions are 5 mm (0.2 in.). Fasteners must be able to hold a minimum of 20 Kg
(44 lbs.)
For proper installation consult a professional installer. Failure to install the bracket properly can possibly result in
damage to the hardware.
Bottom Tray Assembly
See steps 1 through 5 on page 52 for instructions.
Bracket Wall Mounting
1. Drill holes and install anchors according to the template supplied with the bracket.
2. Install two screws for bottom of bracket. The screw heads should protrude 2.5 mm (0.01”) from the wall.

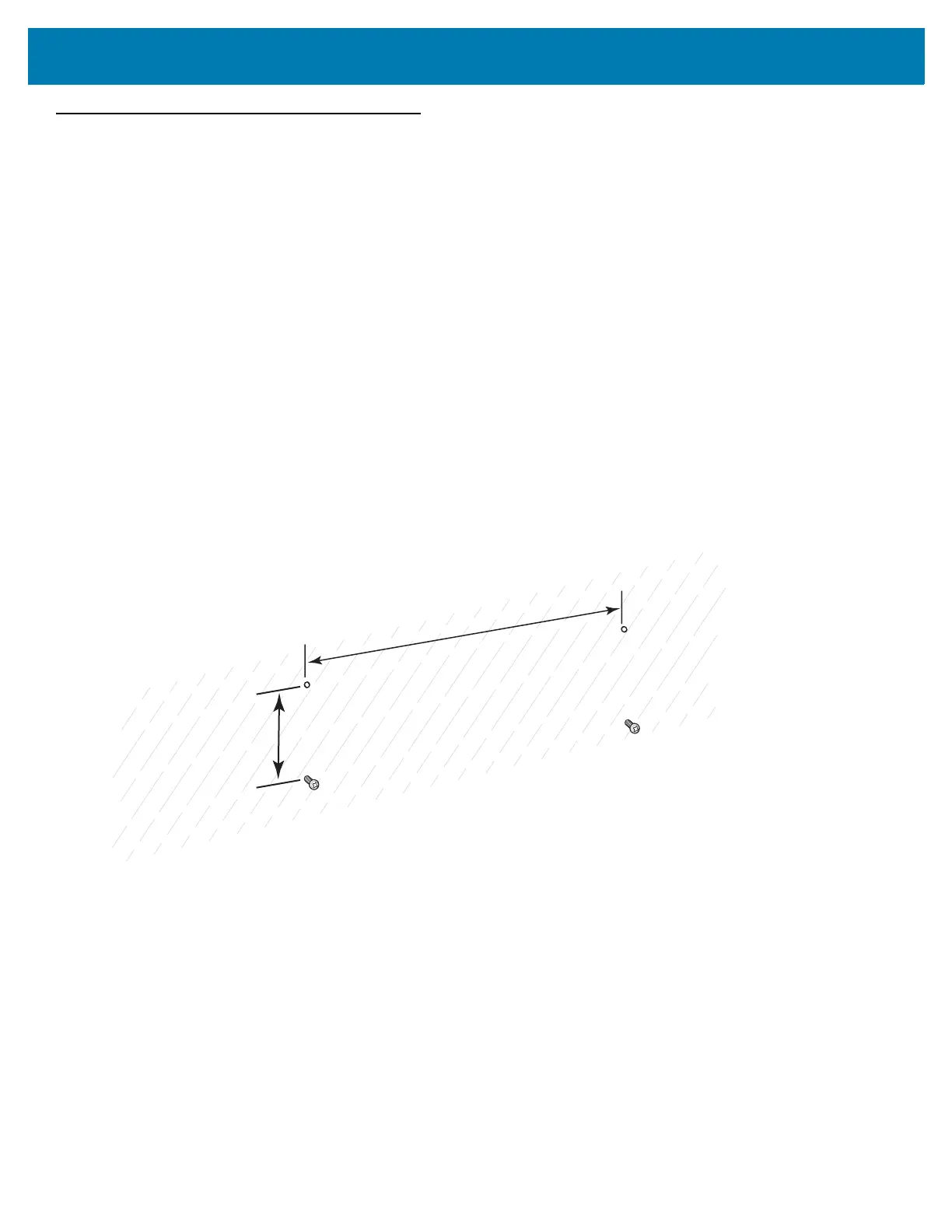

Figure 63 Horizontal Mounting Template
3. Align the mounting bracket’s bottom mounting key holes with the screws.
4. Hang the bracket on the screws.
