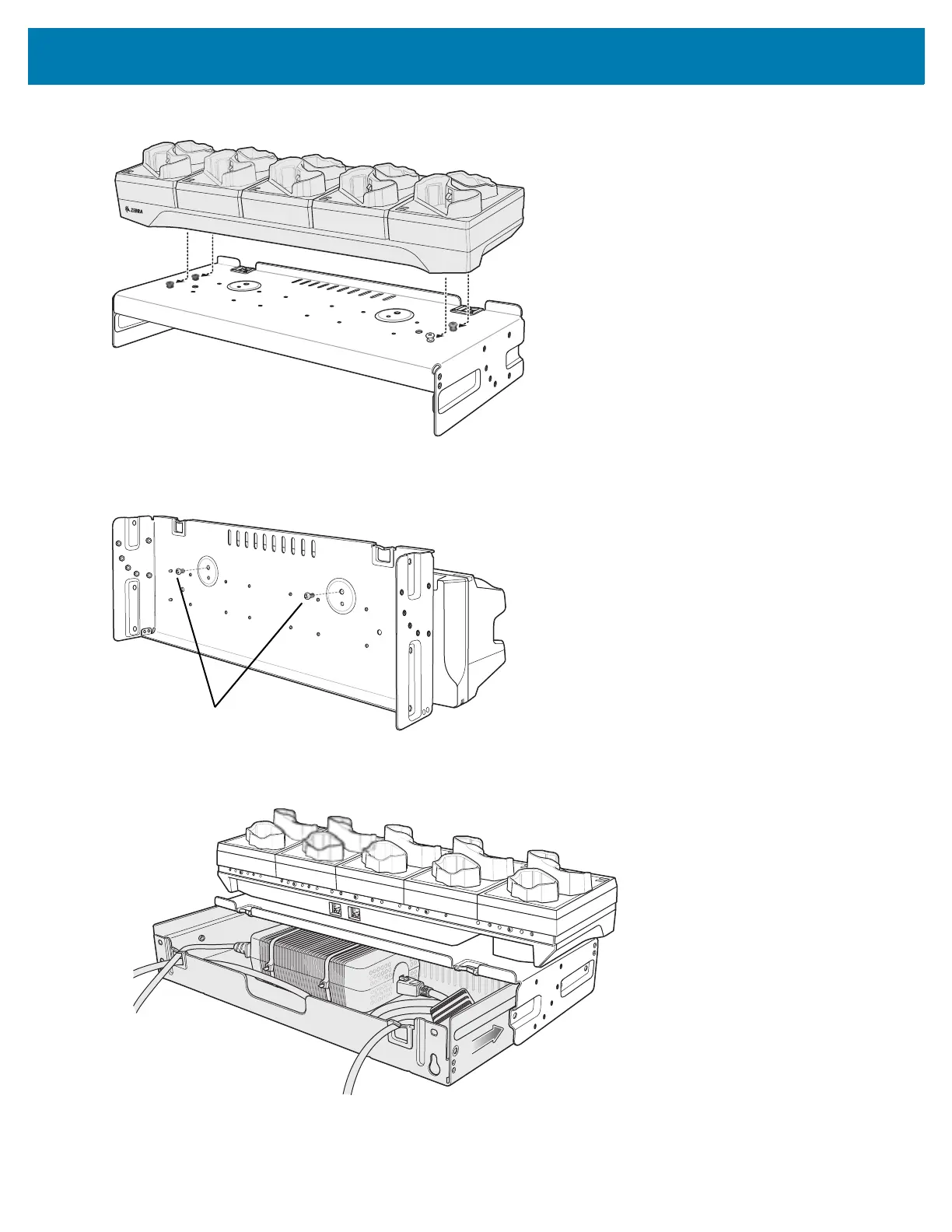

Figure 45 Align Cradle on Studs
8. Secure cradle to top tray with two M2.5 safety screws.
Figure 46 Secure Cradle
9. Slide top tray onto bottom tray.
Figure 47 Slide Top Trap onto Bottom Tray
10. Connect cables to cradle.
Safety Screws(2)
