Zebra Z Series User Manual

Routine Maintenance
Routine Maintenance for the Rewind Option
112
79695L-002 Rev. A Z Series
®
/RZ™ Series User Guide 6/6/08
Adjust Media Alignment for Rewind Option
The instructions below apply only if the printer has a Rewind option. The liner should be
installed flush against the backplate of the rewind spindle to prevent the media/backing from
winding too loosely.
Perform the adjustments in the order given. Do only what is needed to solve the problem.
To adjust the media alignment for printers with the Rewind option, complete
these steps:

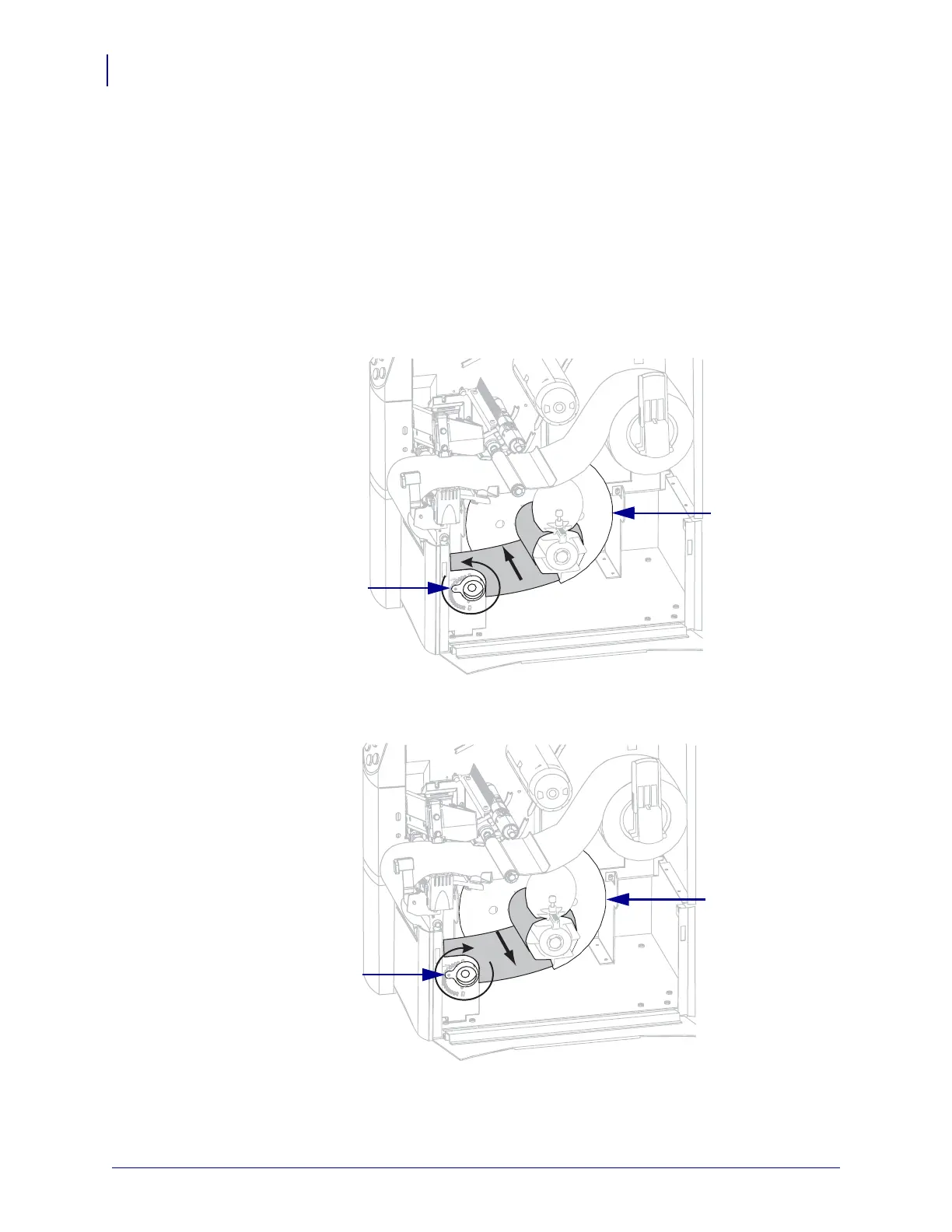

1. Turn the adjustment dial (1) clockwise to move the media toward the backplate (2).
2. Turn the adjustment dial (1) counter clockwise to move the media away from the
backplate (
2).
1
2
1
2

Zebra Z Series Specifications

General

Print Method	Thermal Transfer or Direct Thermal
Max Print Width	4.09 in./104 mm (depending on model)
Max Print Length	39 in./991 mm (with 203 dpi)
Connectivity	USB, Serial (depending on model)
Supported Media Types	Wristbands
Media Width	1.0 inch (25.4 mm)
Operating Temperature	40°F to 104°F (5°C to 40°C)
Storage Temperature	-40° F/-40° C to 140° F/60° C
Resolution	203 dpi or 300 dpi (depending on model)
