Zebra Z Series User Manual

Printer Setup
Connect the Printer to a Power Source
32
79695L-002 Rev. A Z Series
®
/RZ™ Series User Guide 6/6/08
Power Cord Specifications
Depending on how your printer was ordered, a power cord may or may not be included. If one
is not included or if the one included is not suitable for your requirements, see Figure 6 and
refer to the following guidelines:
• The overall cord length must be less than 9.8 ft. (3 m).
• The cord must be rated for at least 10 A, 250 V.
• The chassis ground (earth) must be connected to ensure safety and reduce electromagnetic
interference.

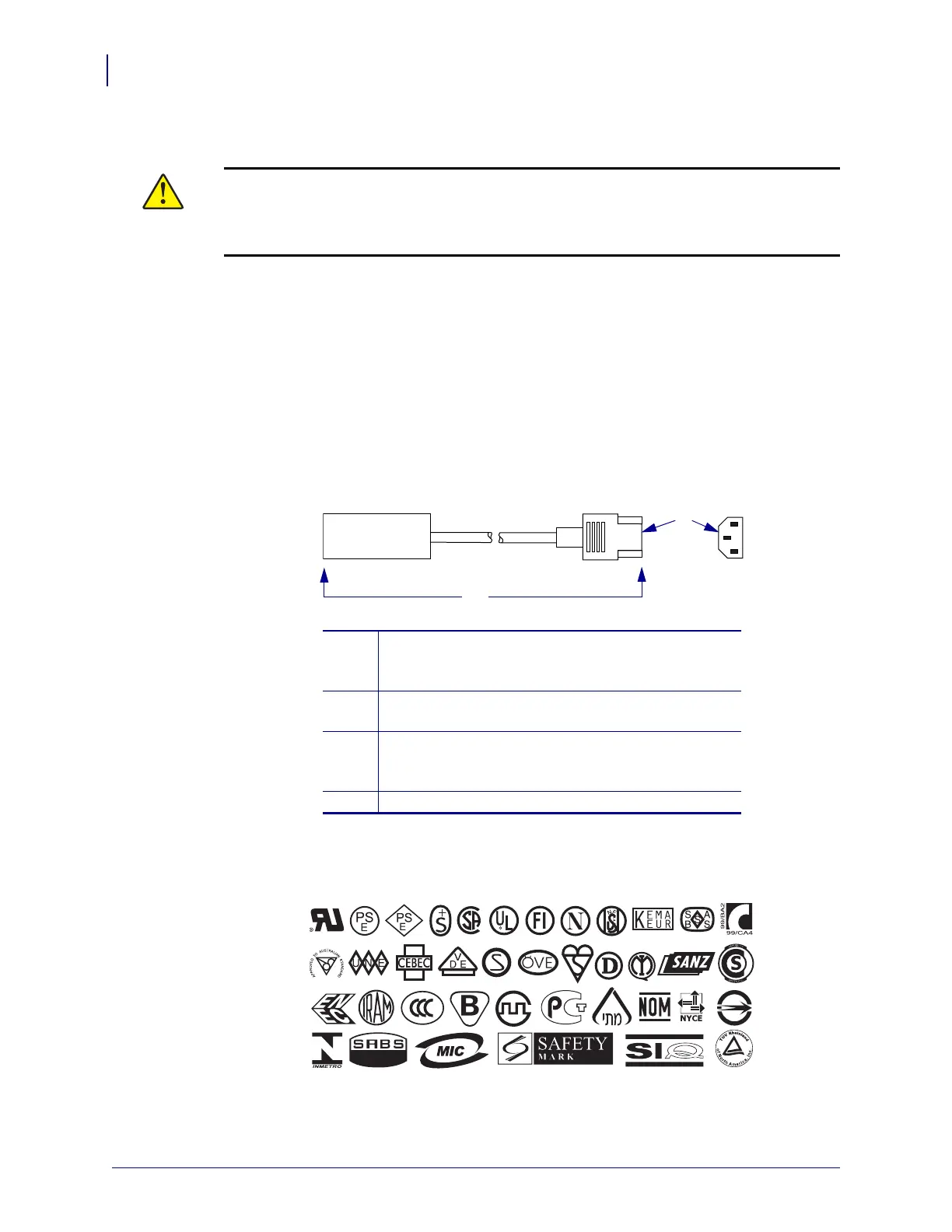

Figure 6 • Power Cord Specifications
Figure 7 • International Safety Organization Certifications
Caution • For personnel and equipment safety, always use an approved three-conductor
power cord specific to the region or country intended for installation. This cord must use an
IEC 320 female connector and the appropriate region-specific, three-conductor grounded
plug configuration.
1
AC power plug for your country—This should bear
the certification mark of at least one of the known
international safety organizations (Figure 7).
2
3-conductor HAR cable or other cable approved for
your country.
3
IEC 320 connector—This should bear the
certification mark of at least one of the known
international safety organizations (Figure 7).
4
Length ≤ 9.8 ft. (3 m). Rating 10 Amp, 250 VAC.
3
1
2
4

Zebra Z Series Specifications

General

Print Method	Thermal Transfer or Direct Thermal
Max Print Width	4.09 in./104 mm (depending on model)
Max Print Length	39 in./991 mm (with 203 dpi)
Connectivity	USB, Serial (depending on model)
Supported Media Types	Wristbands
Media Width	1.0 inch (25.4 mm)
Operating Temperature	40°F to 104°F (5°C to 40°C)
Storage Temperature	-40° F/-40° C to 140° F/60° C
Resolution	203 dpi or 300 dpi (depending on model)
