Load Media
46
79695L-002 Rev. A Z Series
®
/RZ™ Series User Guide 6/6/08

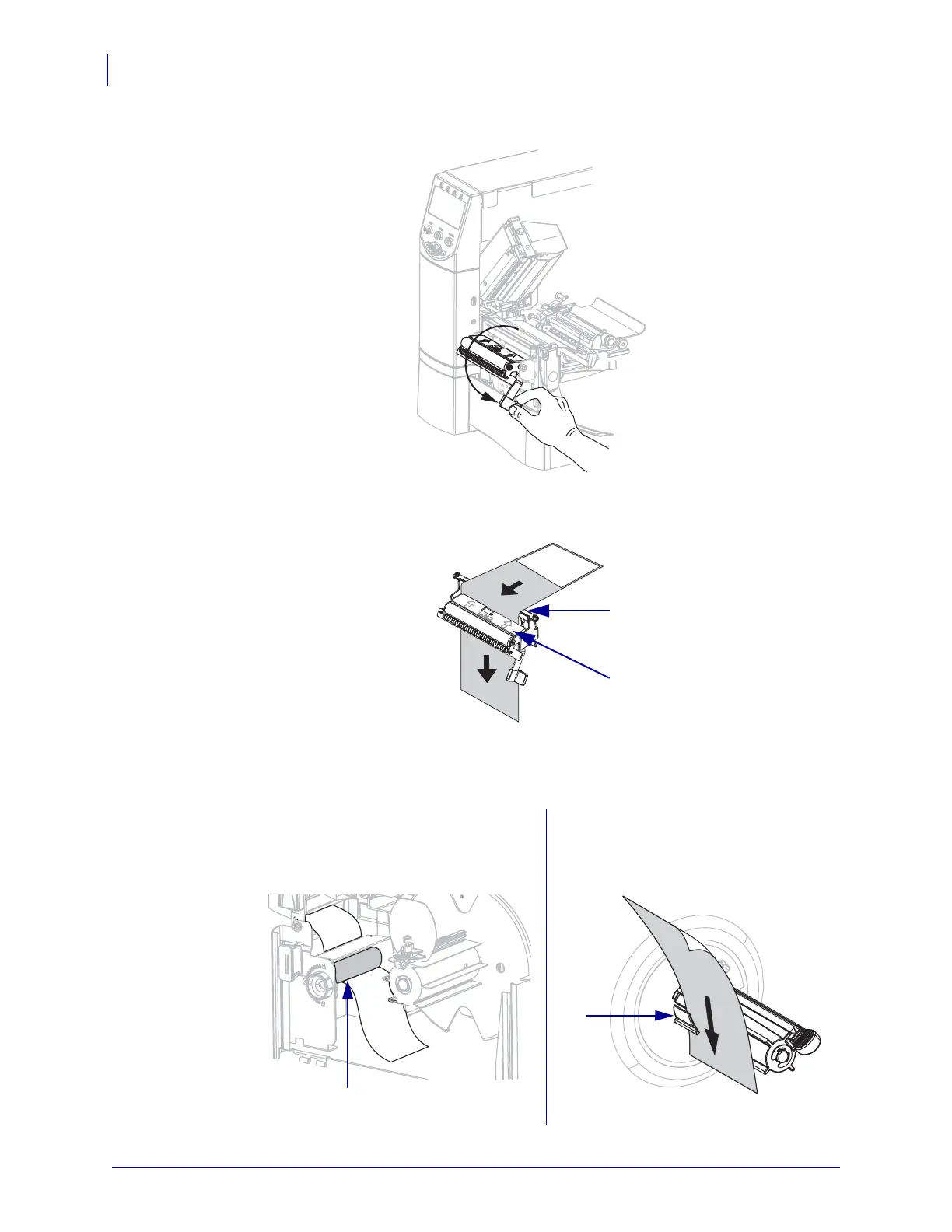

3. Push down the peel-off mechanism release lever to open the peel assembly.
4. Feed the liner over the tear-off/peel-off bar (1) and behind the peel assembly (2). Make
sure that the end of the liner falls outside of the printer.
5. Complete this step only if you want to use Peel-Off mode with liner take-up. Your printer
must have the Liner Take-Up option or the Rewind option installed. Follow the
instructions for your printer option.
Rewind Option Liner Take-Up Option
a. Feed the liner under the media
alignment roller (
1).
a. Slide the liner into the slot in the
liner take-up spindle (
1).
1
2
1
1

Zebra Z Series Specifications

General

Print Method	Thermal Transfer or Direct Thermal
Max Print Width	4.09 in./104 mm (depending on model)
Max Print Length	39 in./991 mm (with 203 dpi)
Connectivity	USB, Serial (depending on model)
Supported Media Types	Wristbands
Media Width	1.0 inch (25.4 mm)
Operating Temperature	40°F to 104°F (5°C to 40°C)
Storage Temperature	-40° F/-40° C to 140° F/60° C
Resolution	203 dpi or 300 dpi (depending on model)
