ZQ220 User Guide

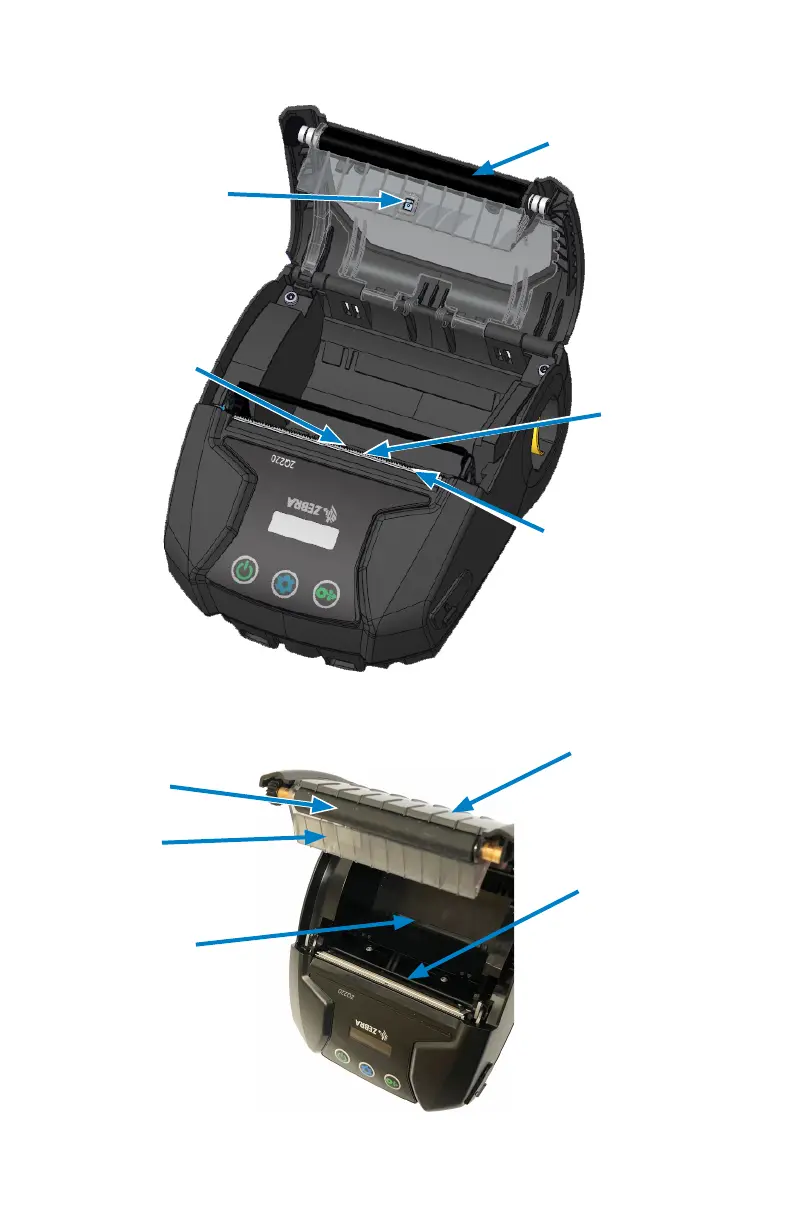

Figure 19 • Cleaning (Linered)
Platen
Roller
Front Side
Sensor
Back Side
Sensor
Printhead
Elements
Tear Bar
Figure 20 • Cleaning (Linerless)
Scraper
Platen
Holder
Platen
Roller
Printhead
Elements
Media
Compartment
