Start-up
Carl Zeiss Screwing in objectives, Inserting eyepieces Axiostar plus
2-10 B 40-815 e 12/01
2.4 Screwing in objectives
• Remove dust caps (2-6/2) according to the
number of objectives and screw objectives
(2-6/3) into nosepiece (2-6/1) clockwise one
by one, starting with the lowest
magnification.
☞
Place dust caps on the unused objective
openings in the nosepiece.
1 4- or 5-position nosepiece
2Dust cap
3Objective

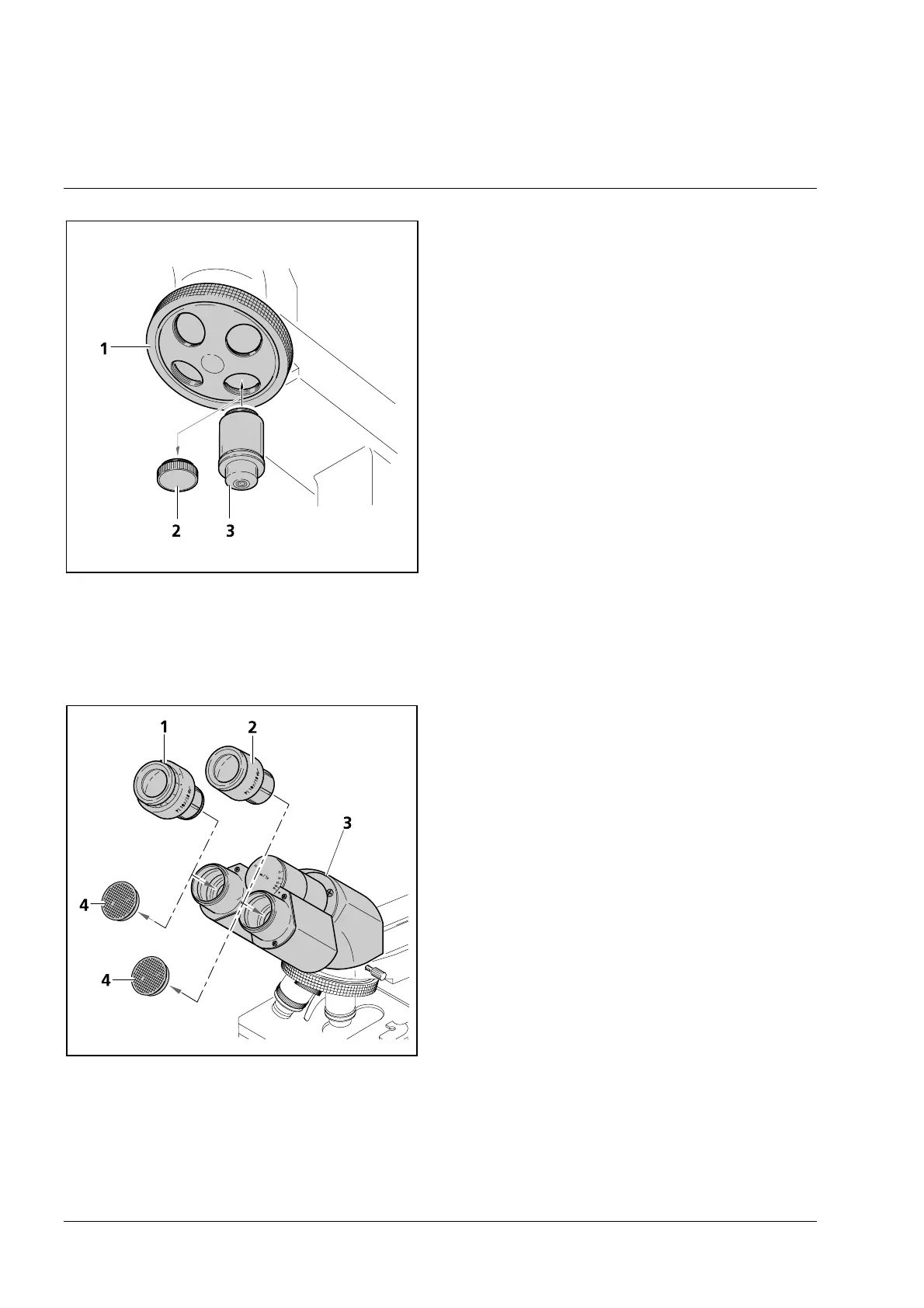

Fig. 2-6 Screwing in objectives
1 Focusing eyepiece
2 Fixed eyepiece
3 Binocular tube
4 Dust caps
Fig. 2-7 Inserting eyepieces
2.5 Inserting eyepieces
• Remove both protection caps (2-7/4) from
the binocular tube (2-7/3).
• Insert the fixed eyepiece, e. g. PL 10×/18 Br.
(2-7/2), into the right tube and the
focusing eyepiece PL 10×/18 Br. foc. (2-7/1)
into the left tube.
☞
The focusing eyepiece is used to compensate
for ametropia of the eyes.
