Start-Up
Carl Zeiss Attaching epi-fluorescence illuminator Axiostar plus
2-22 B 40-815 e 12/01
130° ICS Tube
2 Epi-fluorescence illuminator
3 Filter stop carrier 2
4 Filter stop carrier 1
5 Hexagonal screw (on stand)
6 Clamping screw
7 Clamping screws (back)

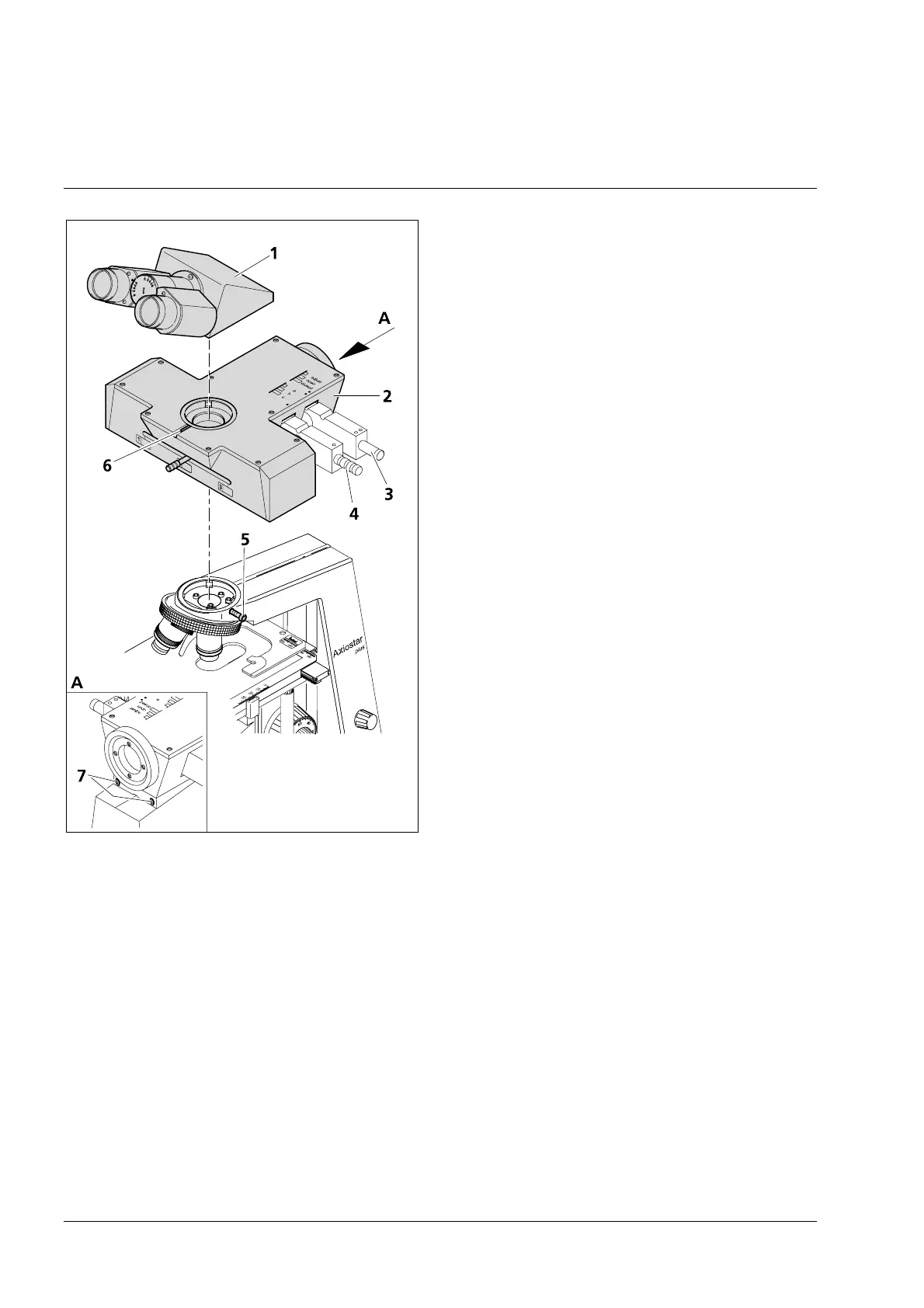

Fig. 2-20 Attaching epi-fluorescence illuminator
2.11 Attaching epi-fluorescence
illuminator
The epi-fluorescence illuminator can be used
only in conjunction with a binocular
tube/phototube 30°.
• If necessary, remove the 45° tube or 30°
tupe and adapter for 30° tubes.
• Replace knurled screws on the stage mount
with hexagonal screws (2-20/5).
• Press epi-fluorescence illuminator (2-20/2)
at a slight angle to the right into the spring
of the stand mount.
• Then press the epi-fluorescence illuminator
into the dovetail mount of the stand by
lowering the left side.
• Align epi-fluorescence illuminator to the
outer contours of the stand.
• Loosen the two back clamping screws
(2-20/7) on the epi-fluorescence illuminator.
• First tighten the hexagonal screws (2-20/5)
and then the two back clamping screws
(2-20/7) to hold the illuminator in position.
• Place 30°
ICS tube (2-20/1) with ring mount
in the epi-fluorescence illuminator opening
(2-20/2), align to the outer edges and
tighten the clamping screws (2-20/6) on the
epi-fluorescence.
