Axiostar plus Connecting the instrument to the line Carl Zeiss
B 40-815 e 12/01 2-33
2.12 Connecting the instrument to
the line
The microscope can be operated using line
voltages of 100 - 240 V without conversion.
• Connect the line cable with connector
(2-32/2) to the instrument socket (2-32/1)
and connect the earth-contact plug (2-32/3)
to the line.
• Switch on the instrument via the on/off
switch (2-32/4) on the left-hand side of the
instrument.
• The green LED integrated into the on/off
switch lights up to indicate that the
instrument is ready for operation (switch in
"I" position). The integrated halogen lamp
6 V, 20 W must also be on.
1 Instrument socket
2 Line connector
3 Line plug
4 On/off switch

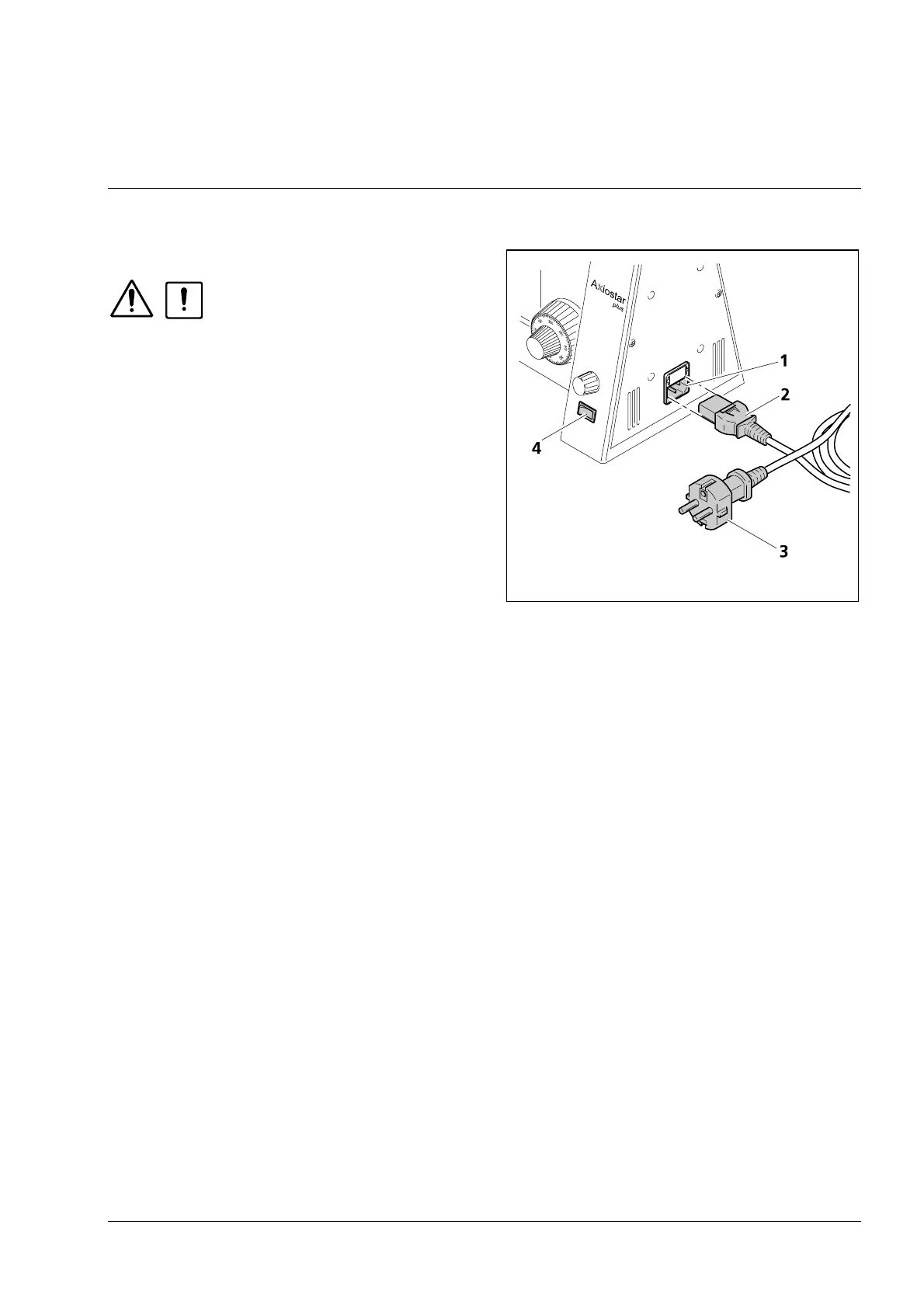

Fig. 2-32 Connecting the instrument to the line
