OPERATION
Carl Zeiss Basic instrument as compact version with stand C Stemi DV4 / DR
3-2 B 40-003 e 08/00
3.1.2 Operation and function controls
1 Connector for changeable optical components and accessories (outer mount dia.: 53 mm, internal thread M50x0.75)
2 Eyepieces W-PL 10x/20 Br. foc., screwed-in, with folding eyecups
3 Carrier handle
4 Magnification changing knob with engraved numbers indicating the set overall magnification
(basic configuration without changeable optical components)
5 Focusing knob to enable focusing of the object
6 Illumination control (see detailed description on page 3-3)
7 Integrated reflected-light illuminator, 12 V / 20 W
8 Clamping screw (socket head SW 3 mm) to fix the microscope body in stand C
9 Integrated transmitted-light illuminator, 12 V / 10 W
10 Insert plate (dia. 84 mm) for object mounting
11 Ball-headed screwdriver (SW 3 mm) in the stand base

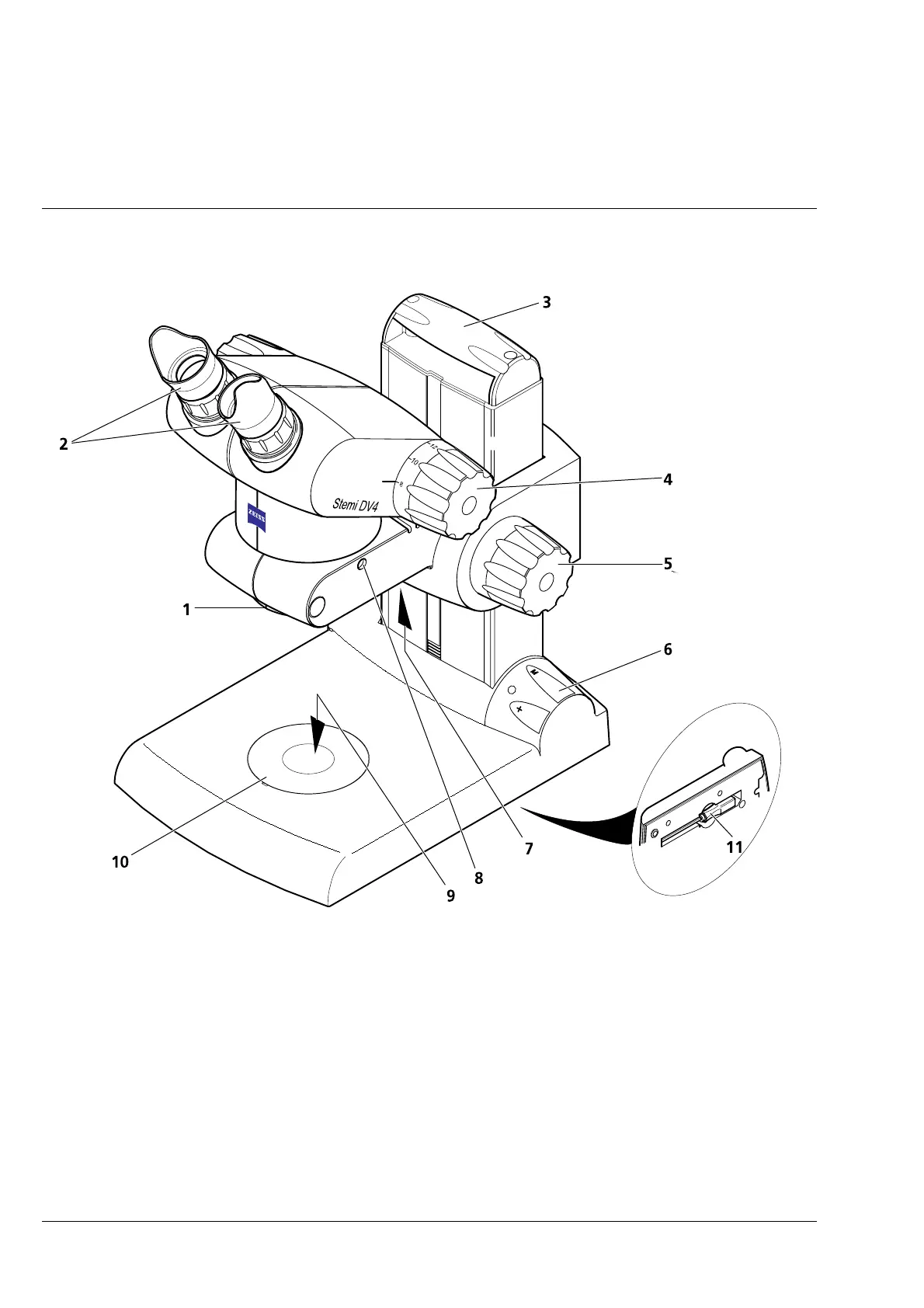

Fig. 3-2 Operation and function controls on the Stemi DV4 / DR
