OPERATION
Stemi DV4 / DR Basic instrument as compact version with stand C Carl Zeiss
B 40-003 e 08/00 3-7
3.1.5 Lamp change
3.1.5.1 Change of reflected-light lamp
Disconnect the power unit from the
line before the lamp change and allow
the lamp to be changed to cool down
for at least 15 minutes.
• Loosen clamping screw (using SW 3 mm ball-
headed screwdriver) and remove microscope
body from the Stemi carrier in upward
direction.
☞
The ball-headed screwdriver is
contained in the stand base.
• Pull defective lamp out of the lamp base in axial
direction.
• Insert the new lamp into the lamp base with its
two pins and press it into the base until stop.
Make sure not to touch the lamp front with
your bare fingers. The lamp is aligned
automatically.
• Insert microscope body again, align it and
tighten the clamping screw.

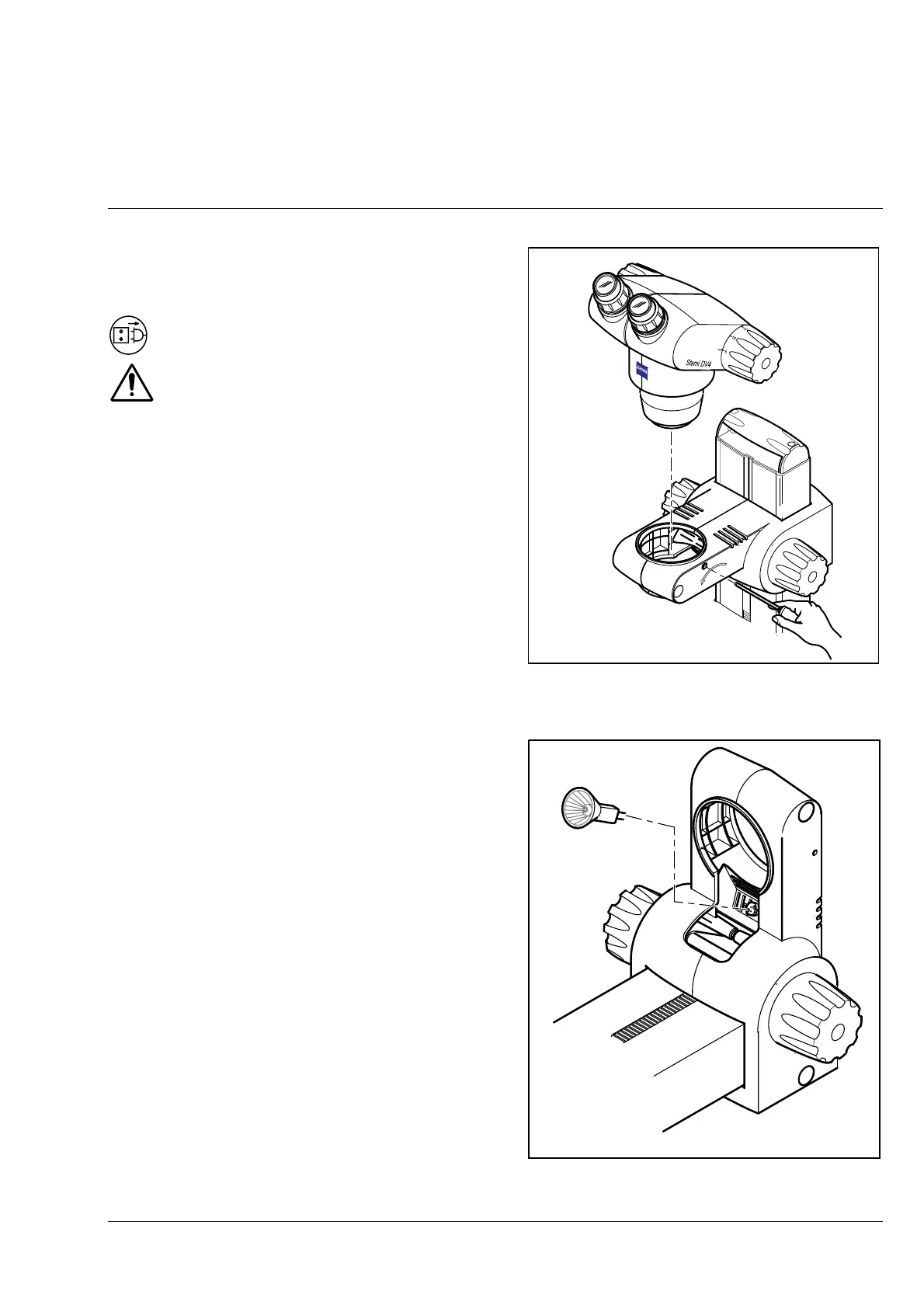

Fig. 3-5 Changing the lamp (reflected light)
Fig. 3-6 Changing the lamp (reflected light)
