OPERATION
Carl Zeiss Core accessories Stemi DV4 / DR
3-12 B 40-003 e 08/00
3.2.3 Documentation of microscopic images
☞
The various eyepiece adapters are inserted into an eyepiece tube instead of the eyepiece!
Adaptation must be made to the eyepiece tube which is not covered by the camera.
3.2.3.1 SLR camera
• Unscrew eyepiece (3-15/5) from one of the
eyepiece tubes.
• Attach suitable T2 adapter (3-15/2) to the SLR
camera (3-15/1).
• Screw eyepiece adapter 2.5x T2 (3-15/3) into
the T2 adapter.
• Insert complete unit consisting of SLR camera,
T2 adapter and eyepiece adapter into the
eyepiece tube until stop and slightly tighten the
retainer ring (3-15/4) of the eyepiece adapter.
• Align the camera and tighten the retainer ring.
• Connect the cable release (if required) to the
SLR camera.

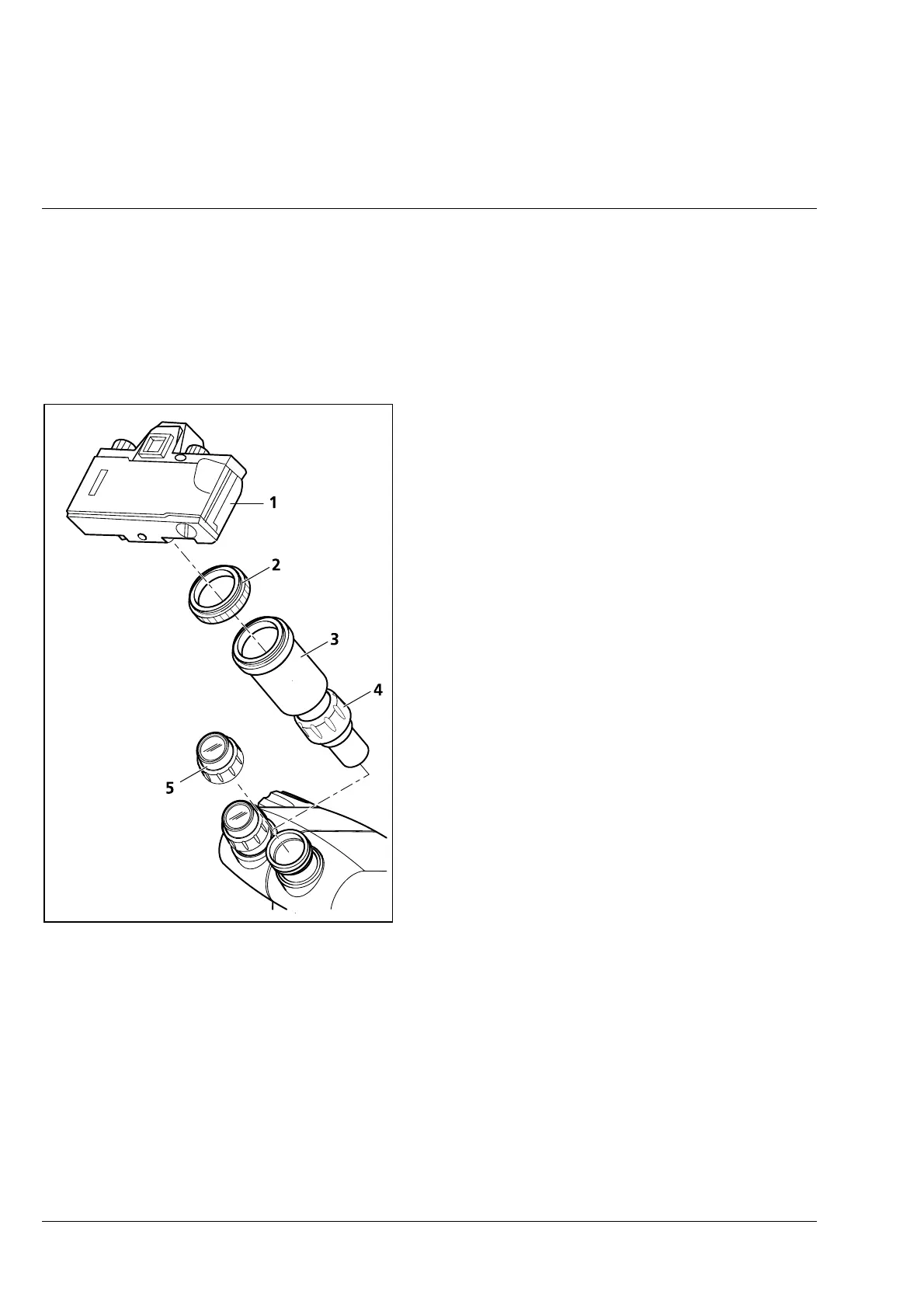

Fig. 3-15 Attachment of SLR camera
