OPERATION
Carl Zeiss Basic instrument as compact version with stand C Stemi DV4 / DR
3-8 B 40-003 e 08/00
3.1.5.2 Change of transmitted-light lamp
Disconnect the power unit from the
line before the lamp change and
allow the lamp to be changed to cool
down for at least 15 minutes.
• Tilt glass plate by pressing on its rear edge
(North) and remove it from the stand base.
• Pull defective lamp out of the lamp base in
forward direction.
Make sure not to touch new lamps
with your bare hands.
• Cut open the plastic cover of the new lamp on
the edge where the pins are positioned and pull
back the cover until the pins protrude.
• Hold new lamp on the plastic cover and insert
both pins into the lamp base.
• Press lamp into the base until stop and remove
the plastic cover.

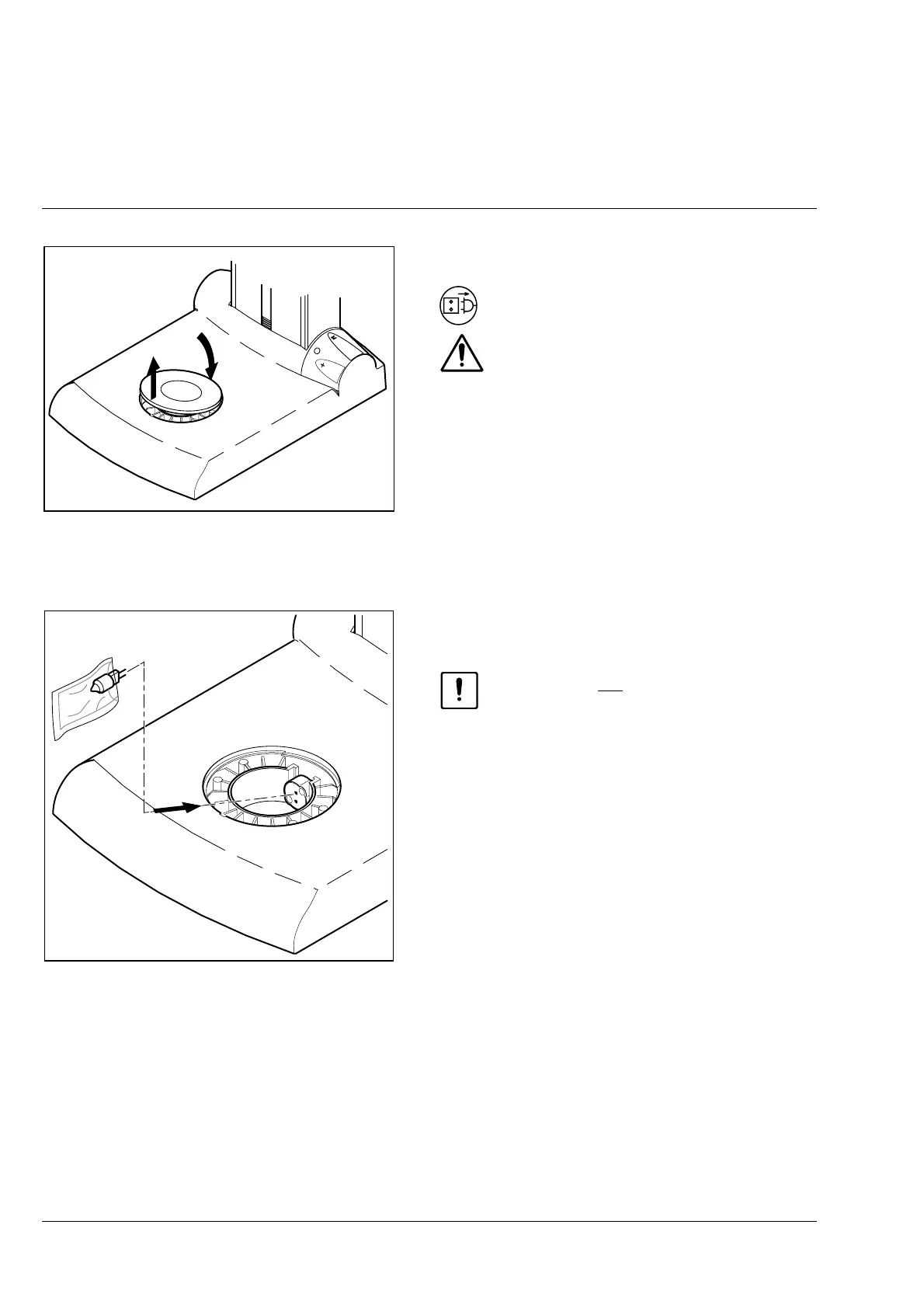

Fig. 3-7 Removing the glass plate
Fig. 3-8 Changing the lamp (transmitted
light)
