5.3.4 Install Hub 2000
5.3.5 Install Microinverter
Tips:
• Please install the Hub 2000 in a place out of direct sunlight.
• The length of our solar cables are 3 meter（need to be purchased
additionally）, so before conrming the location of the Hub 2000's
installation, please measure the distance from MC4 connector of solar
panel to MC4 connector of Hub 2000.
• The Hub 2000 does not come with a Wi-Fi antenna installed. Please
install the Wi-Fi antenna on the Smart PVHub before mounting it on the
wall.
• In order to less connections, it is recommended that Microinverter is
installed between Hub 2000 and home socket, close to the PV Hub.
• Ensure a distance of at least 50mm between the Hub 2000 and the
Microinverter to dissipate heat.
2
1
3
4
2
1
3
4
2
3
1
4
2
1
3
1
1
2
2
4
1 2
6
3
4 5
1

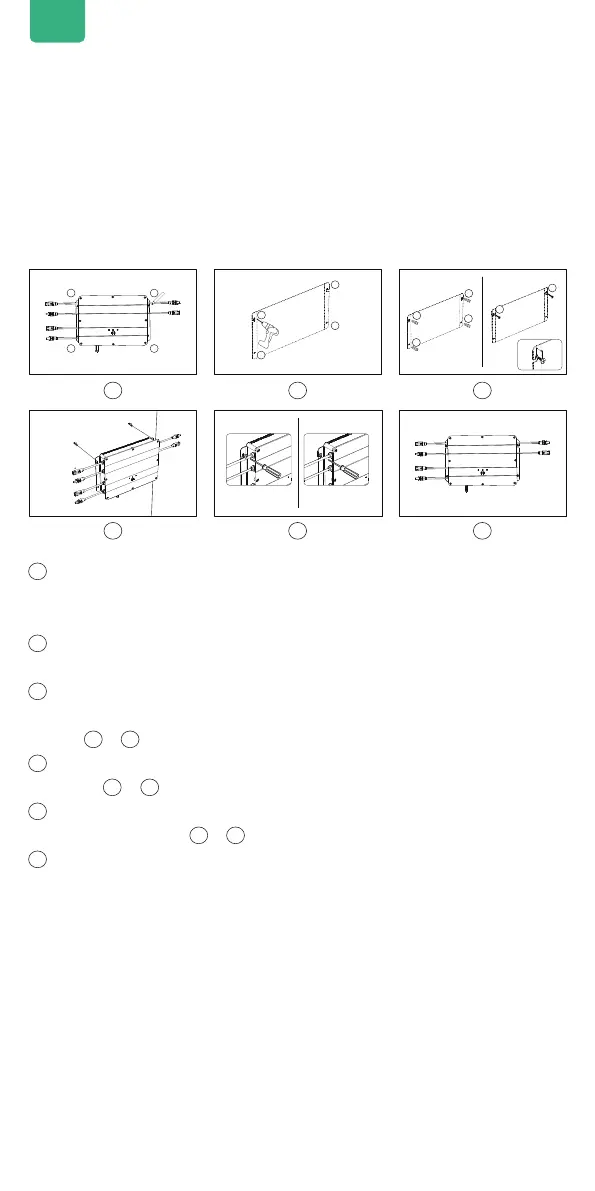

Mark Location, Find a wall you plan to install, one person xes the
Hub 2000 on the wall with his hands, and the other person marks the
positions of the four screw holes of the Hub 2000 with a marker.
2
Drilling,drill four diameter 8mm mounting holes at the four marked
positions.
3
Installing screws,rst Respectively Install the yellow plastic expansion
screw tube into the 4 holes which step 3 drilling,then screw 2/3 of
the
1
&
2
screws into the yellow plastic expansion tube.
4
Hang Hub 2000, please hang the Hub 2000 on exposed part of the
screw
1
&
2
.
5
One person xes the Hub 2000 with both hands, and the other one
screws the rest of
1
&
2
screw into the wall completely.
6
Install another two screws, screw 3 and 4 into the yellow plastic
expansion tube and completely into the wall.In this way, you have
completed the installation of Hub 2000.
The method of assembly is subject to the instructions of the
Microinverter.
Tips:
