ZF AV 110 - Page 108

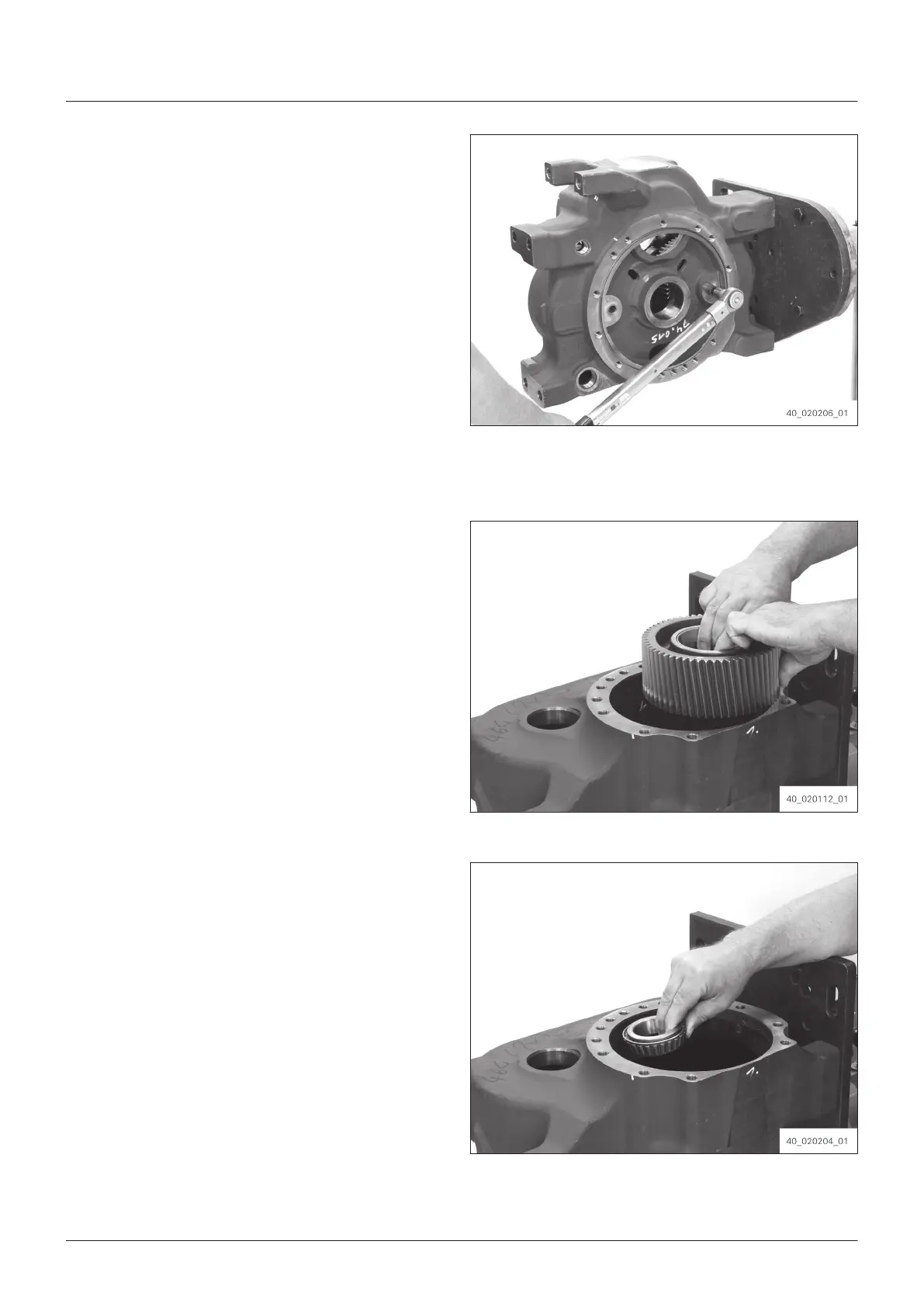

22. Fix bearing bolt with a cylindrical screw.
T
ightening torque: 185 Nm
Fig. 211
23. Set the bearing of the second intermediate gear as illustrated.
24. Insert the tapered roller bearing into the
portal housing.
25. Insert the intermediate gear into the portal
housing.
Fig. 212
26. Insert the tapered roller bearing into the
int
ermediate gear.
27. Place intermediate gear and tapered roller
bearing onto a bush (thrust washer) in the
portal housing.
Fig. 213
Assembly
108
EN 4472.751.001 - 2015-11
