Section 2 Ventilation
Command Centre width

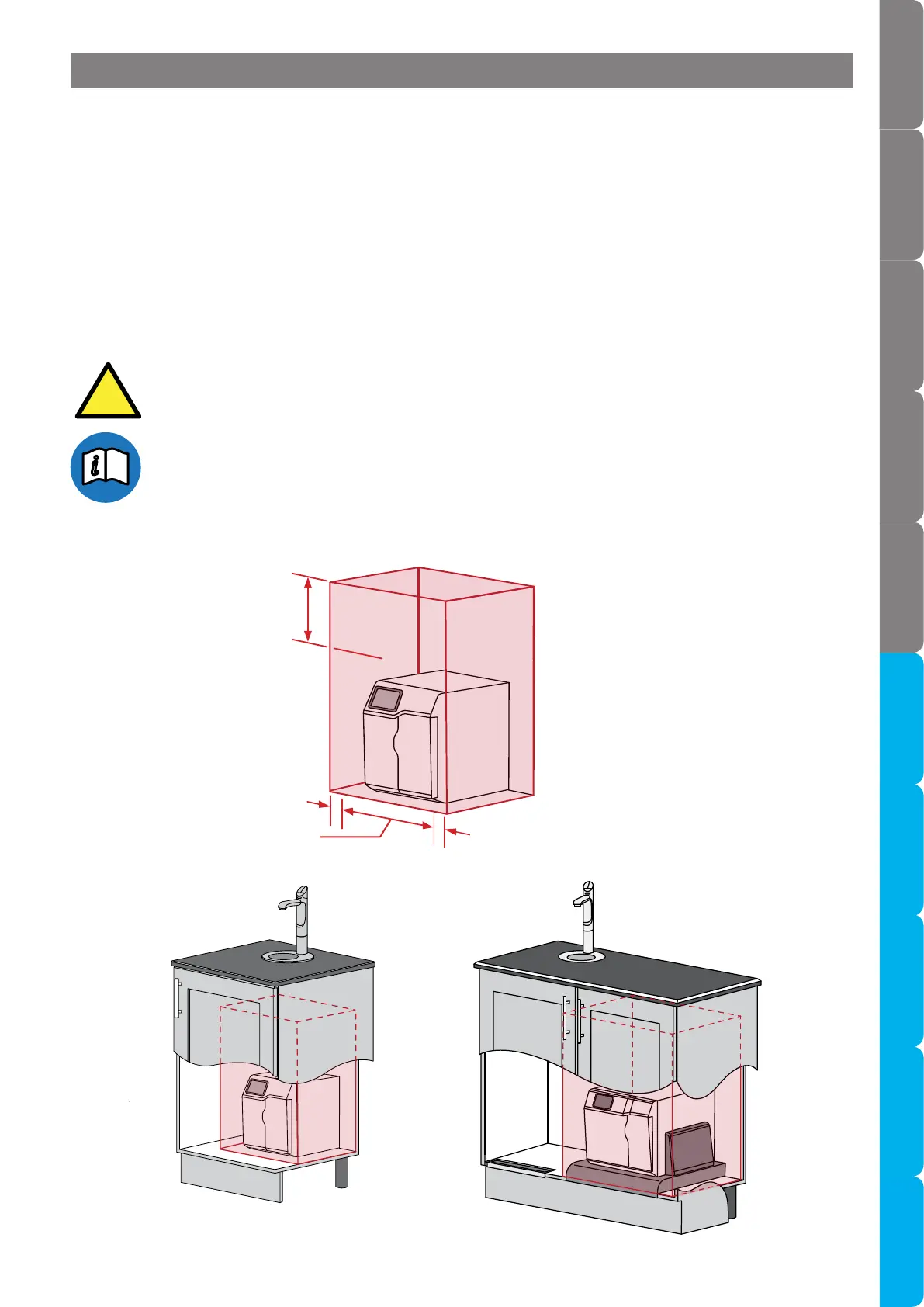

A clearance envelope around all Command Centres must be provided to allow ventilation for
the safe and effective use of the HydroTap system.
200mm
50mm
50mm
Read and use the instructions and safety information supplied with individual kit components
for a safe installation.
2.1 Generic requirements
Clearance envelope
• The system must be provided with adequate ventilation and air circulation in order to operate efficiently.
• An exhaust outlet is necessary to provide a safe exhaust for refrigerant gas in the unlikely event of a leak.
• It is important to ensure that cool air is provided within the cabinet where the HydroTap is installed, under
a forced ventilation system, to support removal of heat.
• Ventilation of hot air out of the cabinet is necessary to ensure the ambient temperature in the cabinet
remains below 35°C.
• Continued operation at a higher temperature will affect the function and reduce the lifespan of internal
components and increase the likelihood of failure.
• Should the temperature within the cabinet rise above 35°C, additional ventilation is required. Contact your
local service provider for options (including additional vents and fan kit).
