INSTALLATION
GUIDE
Rating Unit
Nominal power rating 2.2 kW
Nominal current 10 A
Electricity supply 50Hz AC 230 V
Electrical flex, white - 0.6m nom. length 13 A
Fixed flow rate 1.2 L/min
Mount base
horizontally

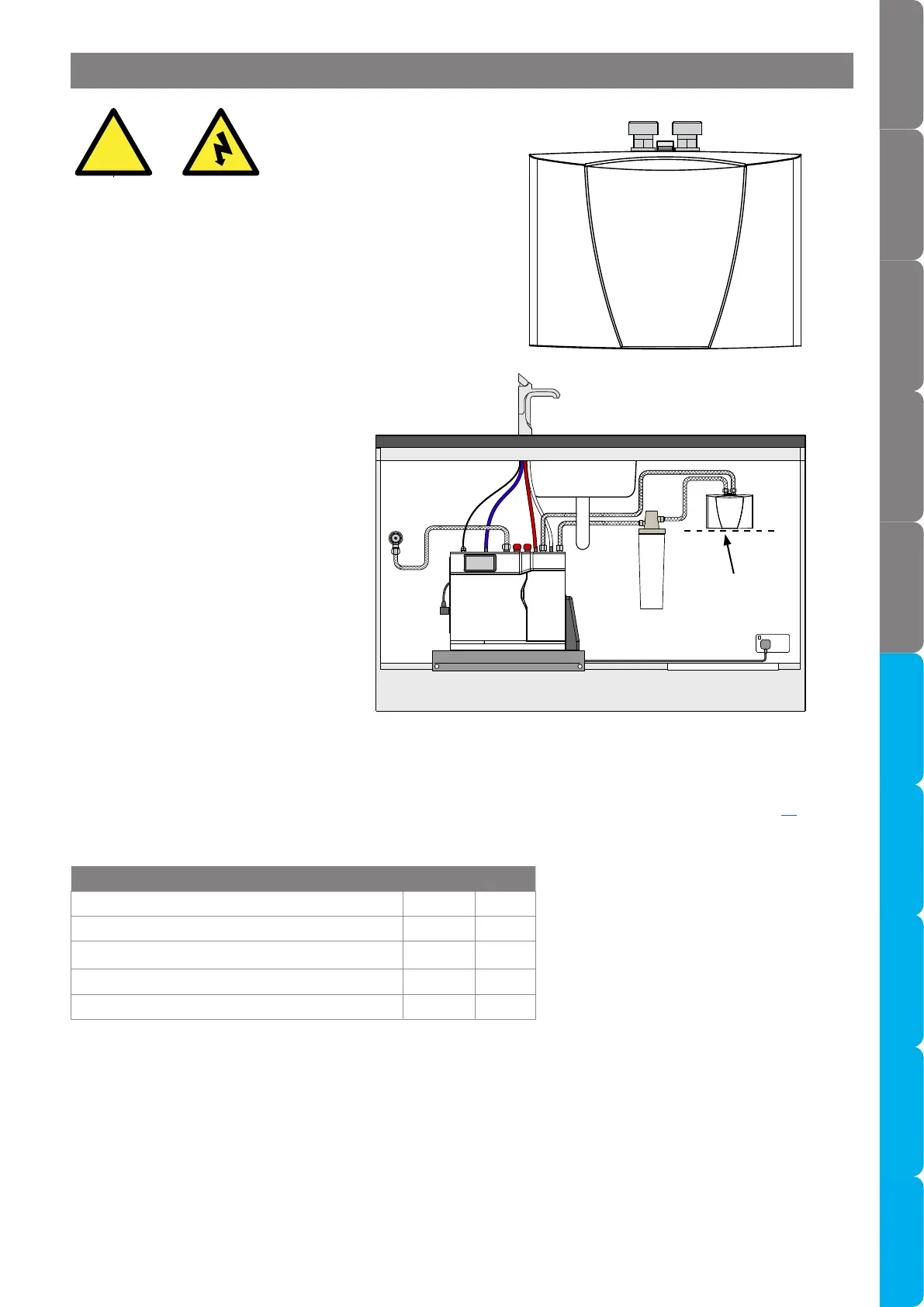

3.6.1 Booster description
The booster system is a compact electronically
controlled auxiliary water heater. It is intended
to provide pre-heating of water before it enters
the Zip HydroTap G5 boiling tank. If the booster is
used the boiling water output will be increased.
Note 1 Water connection blue cap -
water in
red cap - water out.
The braided hoses cannot be
lengthened.
Note 2 The electrical cable length is
0.6m.
Note 3 Position the booster within
reach of the fixed hose lengths,
keeping the booster as close as
possible to the Command Centre inlet
/ outlet connections.
Note 4 Ensure the booster
is mounted in an upright position (as
shown) with a horizontal base.
Booster
An external booster heater is supplied, or may be purchased
as an upgrade to increase Boiling capacity, with selected
commercial boiling models.
Note 5 Before you install a booster, determine whether an external water filter / softener is required. If an
external water filter / softener is required, the external bypass valve must be set correctly, see page 22.
Booster specifications
Section 3.6 Booster system installation
Booster connections
• Cold water into Booster, connect to Command Centre BYPASS OUT.
• Hot water out of Booster, connect to Command Centre BYPASS IN.
!
