EC16 Elevator Control Panel & DEX16 Elevator Floor Extension Board User Manual
P a g e | 9 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
2 Overview
System Introduction
The elevator control system is a digital management system that controls access to elevators for
personnels. This elevator control system introduced by ZKTeco mainly consists of the EC16 master
elevator controller, DEX16 floor expansion board, QR600 series reader and D147 card issuer and other
auxiliary equipment. Each elevator controller can be connected to up to seven floor expansion boards,
which can control up to 128 floors. After entering the elevator, users must swipe the card, QR code or
password inside the elevator to pass the authentication before they are authorized to press the
designated floor button and finally reach the corresponding floor.
Package C Enclosure Introduction
EC16 elevator master controller is a bare board, which can be installed and fixed to Package C enclosure, and
the DEX16 expansion board supports stacking and fixing on the master control board.

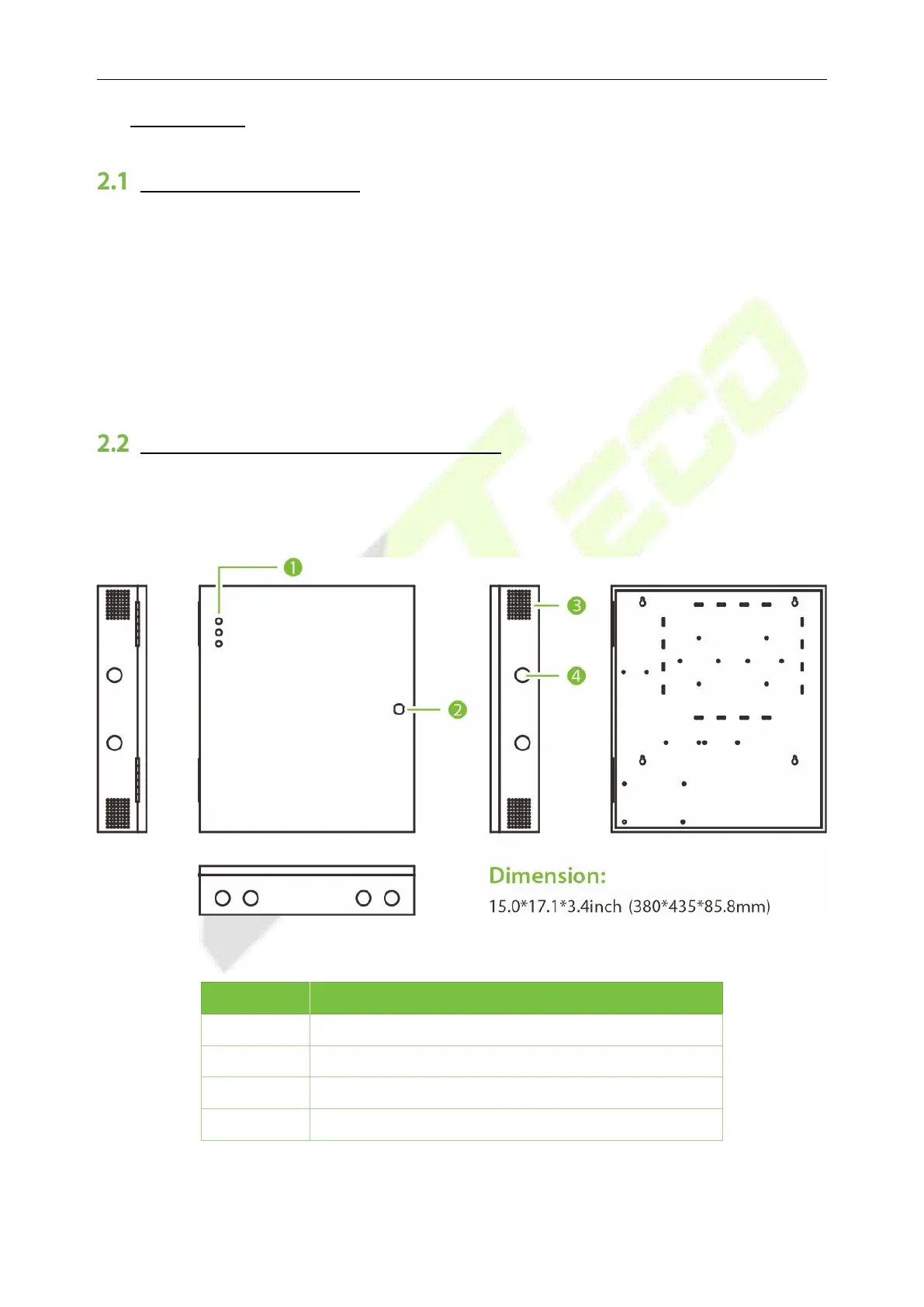

Figure 1-1 Package C Enclosure Appearance
Status Indicator (Includes PWR, COMM, RUN)
