5.1.4 Add Expansion Board on the Software

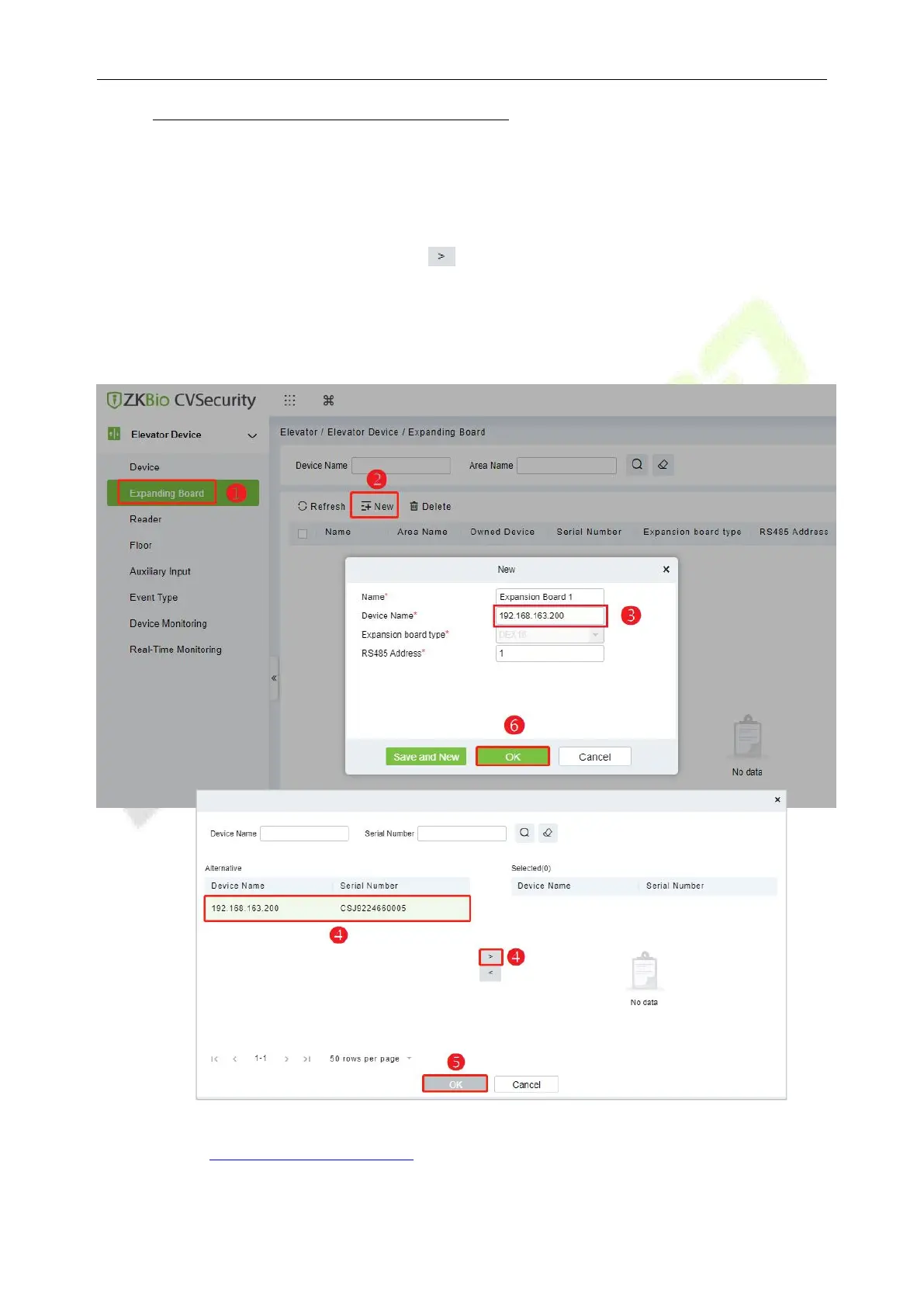

1. Click [Elevator] > [Elevator Device] > [Expanding Board] to enter the setting interface.
2. Click[New] to add a expanding board.
3. Click [
Device Name
] and select the expansion board in the pop-up window.
4. Select the expansion board and then click to move it to the selected column on the right.
5. Click [
OK
] to confirm and exit.
6. After setting all parameters, click [OK] on the New page, when the pop-up "The operation
succeeded!" prompt means add extension board is completed.
Note: The RS485 address is input according to the dip switch setting of the expansion board, check the dip
switch setting in 4.6 Wiring of Expansion Board for details.
