EC16 Elevator Control Panel & DEX16 Elevator Floor Extension Board User Manual
P a g e | 16 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Connection Power Supply
This device uses the adapter matched with the Package C enclosure to supply power to the elevator
controller, providing a 12V power supply which takes into account the power consumption of the
elevator controller itself, the power consumption of up to seven DEX16 expansion boards and the

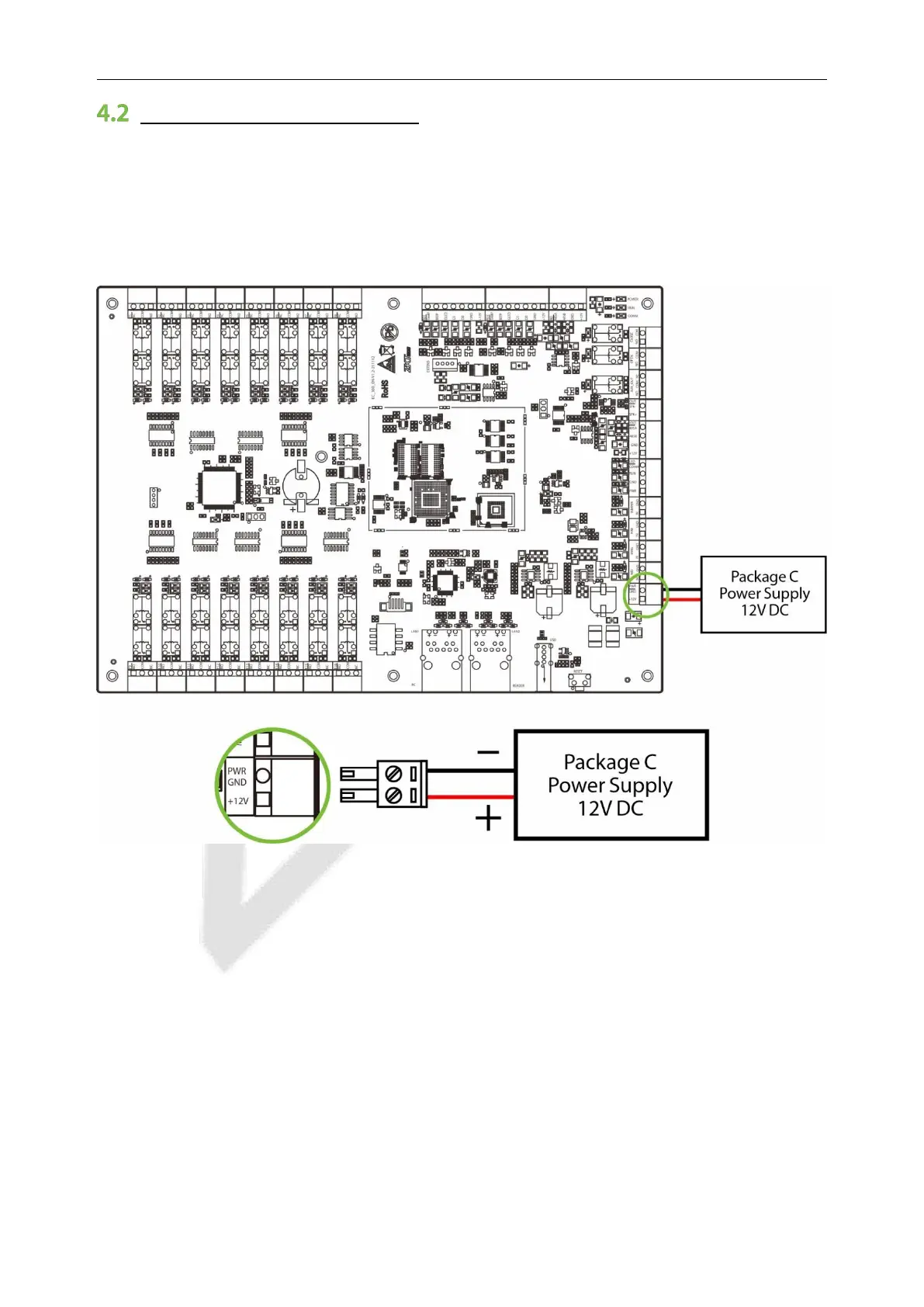

output power consumption of the RS-485 reader. The wiring is shown in the following diagram.
Figure 4-2
Power wiring diagram
