EC16 Elevator Control Panel & DEX16 Elevator Floor Extension Board User Manual
P a g e | 18 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

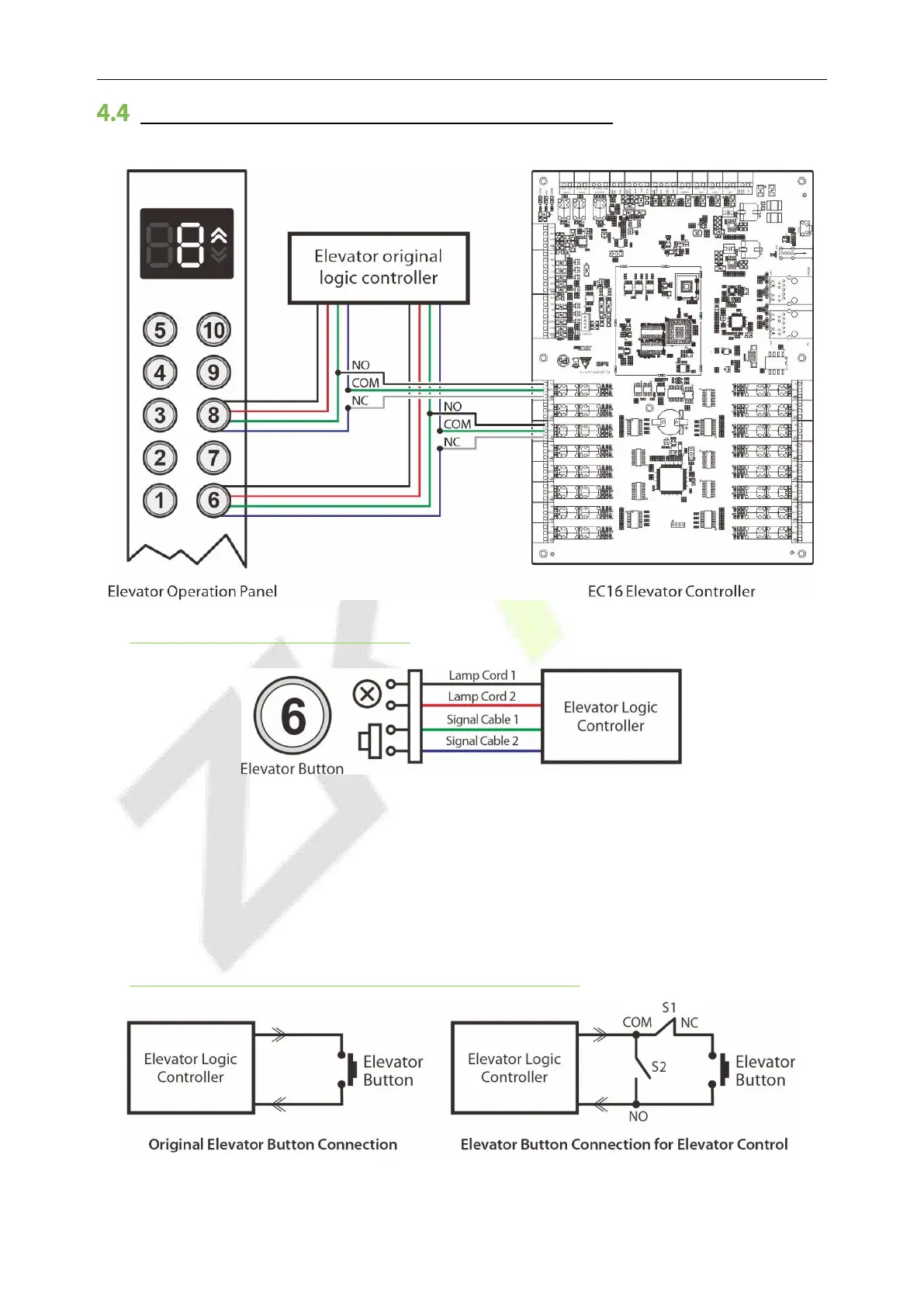

Elevator Control and Elevator Button Wiring
 Elevator Button Wiring Description
Figure 4-4 Elevator button wiring schematic
Instruction:
Connect Signal Cable 1 to the NO terminal on the corresponding floor of the elevator logic controller. After
Signal Cable 2 is disconnected, COM and NC terminals are connected to the COM and NC terminals of the
corresponding floor respectively.
 Wiring for swipe to select floor and direct floor selection
Figure 4-5 Swipe card to select the floor and direct selection of floor wiring diagram
