EC16 Elevator Control Panel & DEX16 Elevator Floor Extension Board User Manual
P a g e | 21 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Real-time pushing of "fire button short circuit" information and
one alarm sound
Real-time pushing of "fire button break" information and one
alarm sound
Note: The alarm can be cancelled by restarting the device on the software side.
No information push and no alarm sound.
Real-time pushing of "tamper alarm" information and one
alarm sound

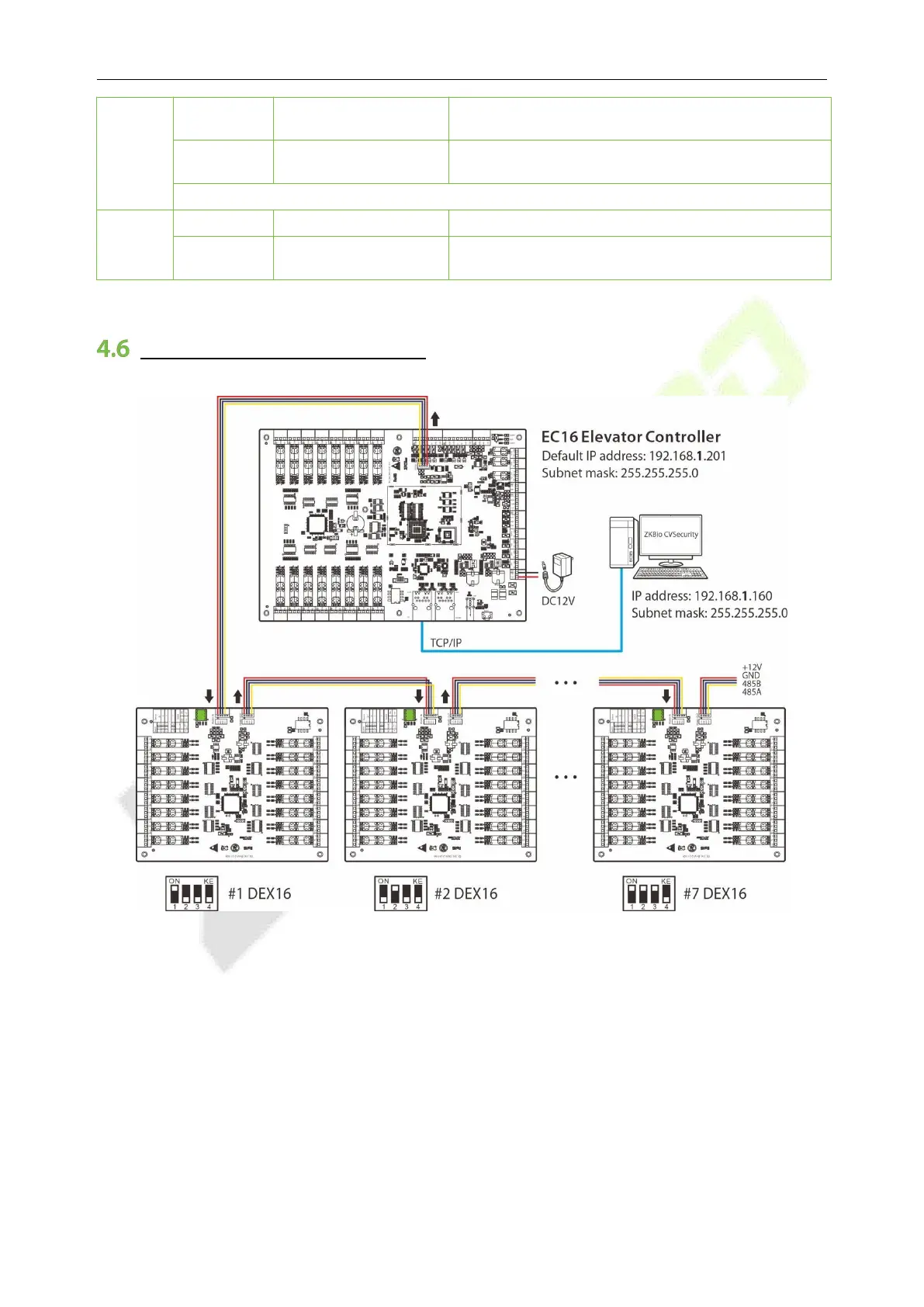

Wiring of Expansion Board
Figure 4-7 MO, EMG, FIRE, TAMPER interface wiring diagram
Note:
1. Use the software setup after connecting the DEX16 module to the EC16 master controller.
2. A maximum of seven DEX16 extended boards can be connected to one EC16 controller.The total can be
expanded to 128 layers at most.
3. Before power is supplied, use the DIP switch to set the RS-485 addresses of the DEX16s, following the
order in which each DEX16 is connected.
4. The DIP switch needs to be set with the control board powered off and takes effect after restart. After
setting, the DIP switch does not need to be set back to its original position.
