Installation of Elevator Management System
The elevator management system consists of two parts, which are the management workstation (PC)
and the elevator controller. The management workstation and elevator controller adopt TCP/IP
communication mode. The communication line is as far away from the high-voltage electric line as
possible, and should not be wired in parallel with the power line, let alone bundled together.
The management workstation is a PC connected to the network, and the elevator manager can realize
various remote management functions, including adding/removing users, viewing various event
records, entering/exiting elevators and monitoring the status of each elevator in real time, etc. just by
running the elevator control management software on it.
The following diagram shows the installation of EC16 elevator controller system.

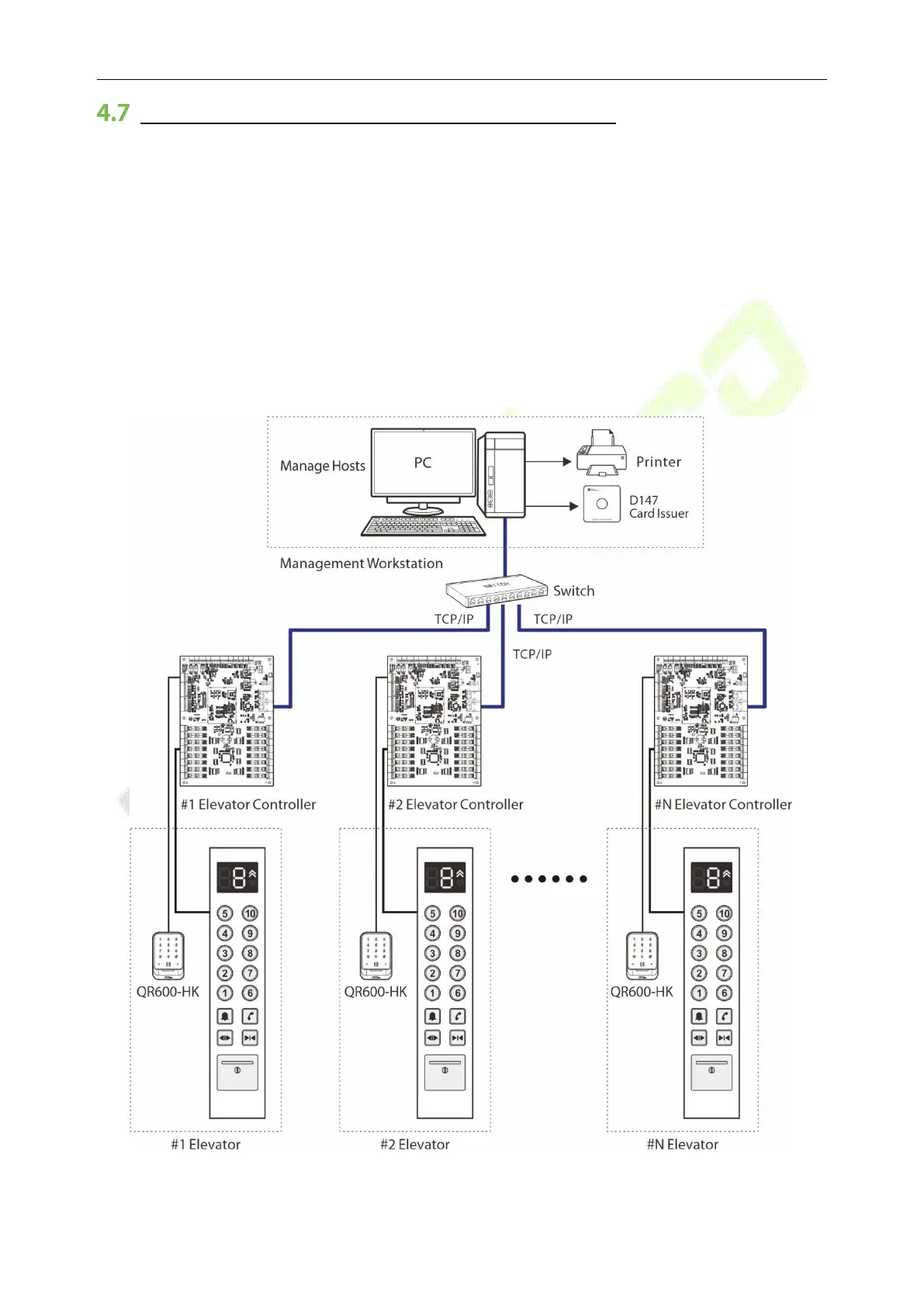

Figure 4-8 Diagram of elevator management system
