LED Indicators Description
LED indicators on the EC16
When the EC16 elevator controller is powered on, the LED indicators under normal circumstances will
show the following.

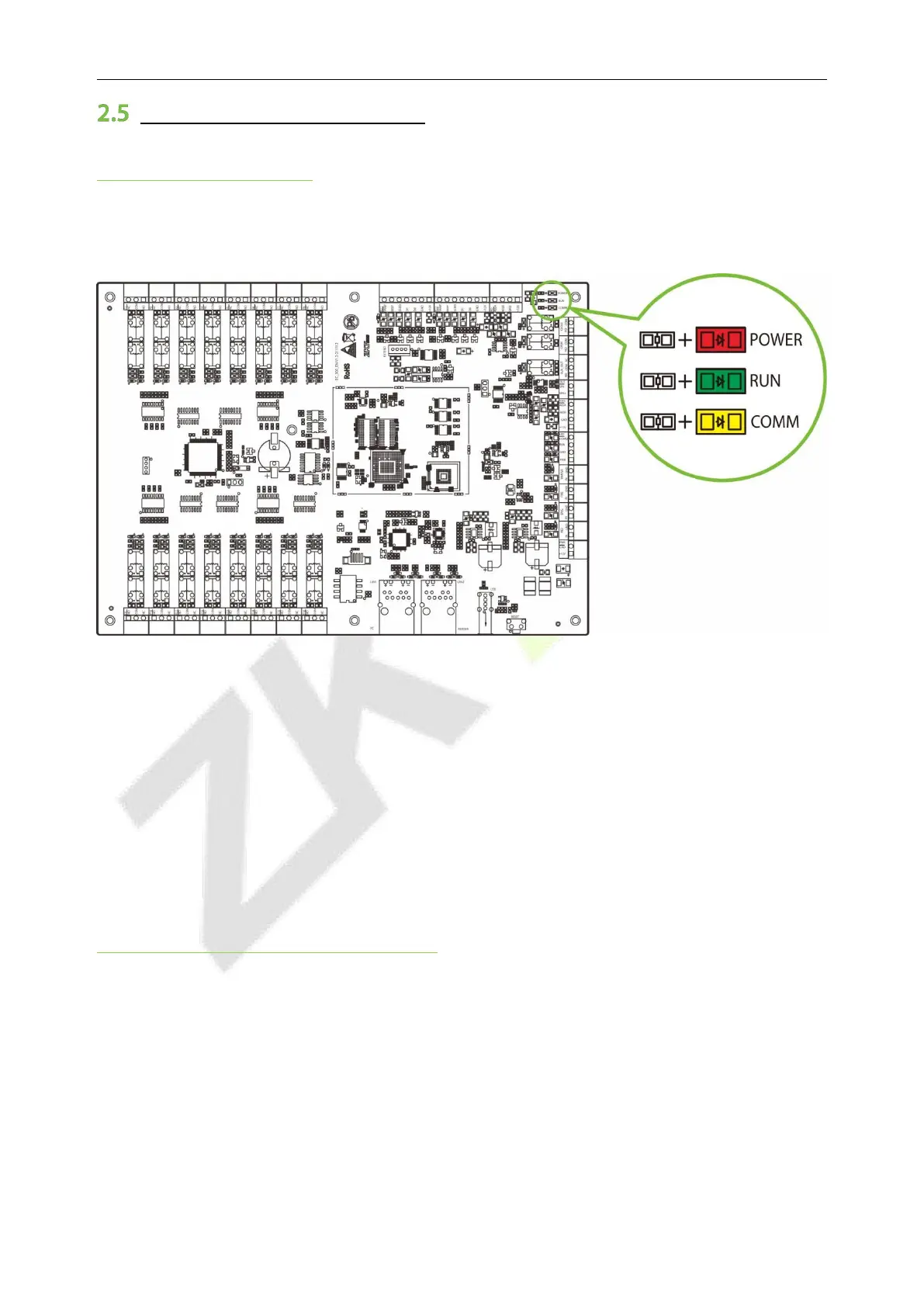

Figure 1-3 LED indicator diagram of the elevator controller
 POWER indicator (Red):
Solid Red LED indicates normal energization.
 RUN indicator (Green):
Slowly flashing Green LED indicates normal working status of the system.
 COMM indicator (Yellow):
Slowly flashing Yellow LED indicates data communication is in progress.
LED indicators on the Package C Enclosure
 PWR indicator (Red):
Solid Red LED indicates normal energization.
 COMM indicator (Yellow):
Slowly flashing Yellow LED indicates data communication is in progress.
 RUN indicator (Green):
Slowly flashing Green LED indicates normal working status of the system.

ZKTeco EC16 Specifications

General

Brand	ZKTeco
Model	EC16
Category	Computer Hardware
Language	English
