EC16 Elevator Control Panel & DEX16 Elevator Floor Extension Board User Manual
P a g e | 30 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
maximum current for each reader is calculated (
Note:
the instantaneous current of the device at the
time of start-up is the largest, which can be more than twice the normal work, and this situation must
be considered when calculating). In addition, if the reader shares power with the device, it is
recommended that the RS-485 communication terminal and the RS-485 reader should not be
connected to more than 3937 ft (100m), otherwise it is recommended that a separate power supply be
used.
Note: For devices with high power consumption, it is recommended to use separate power supply to ensure
stable operation of the device.
5.1.5.2 Connect Wiegand Reader via Wiegand
EC16 elevator controller can connect two Wiegand readers.
The elevator controller provides Wiegand interface for the readers, which can be connected to
different types of readers. If your reader uses a voltage other than DC 12V, an external power supply
device is required. The reader should be installed about
55 inches (1.4m)
from the ground and
0.1
inches to 0.2 inches (30 to 50mm) from the door edge frame.

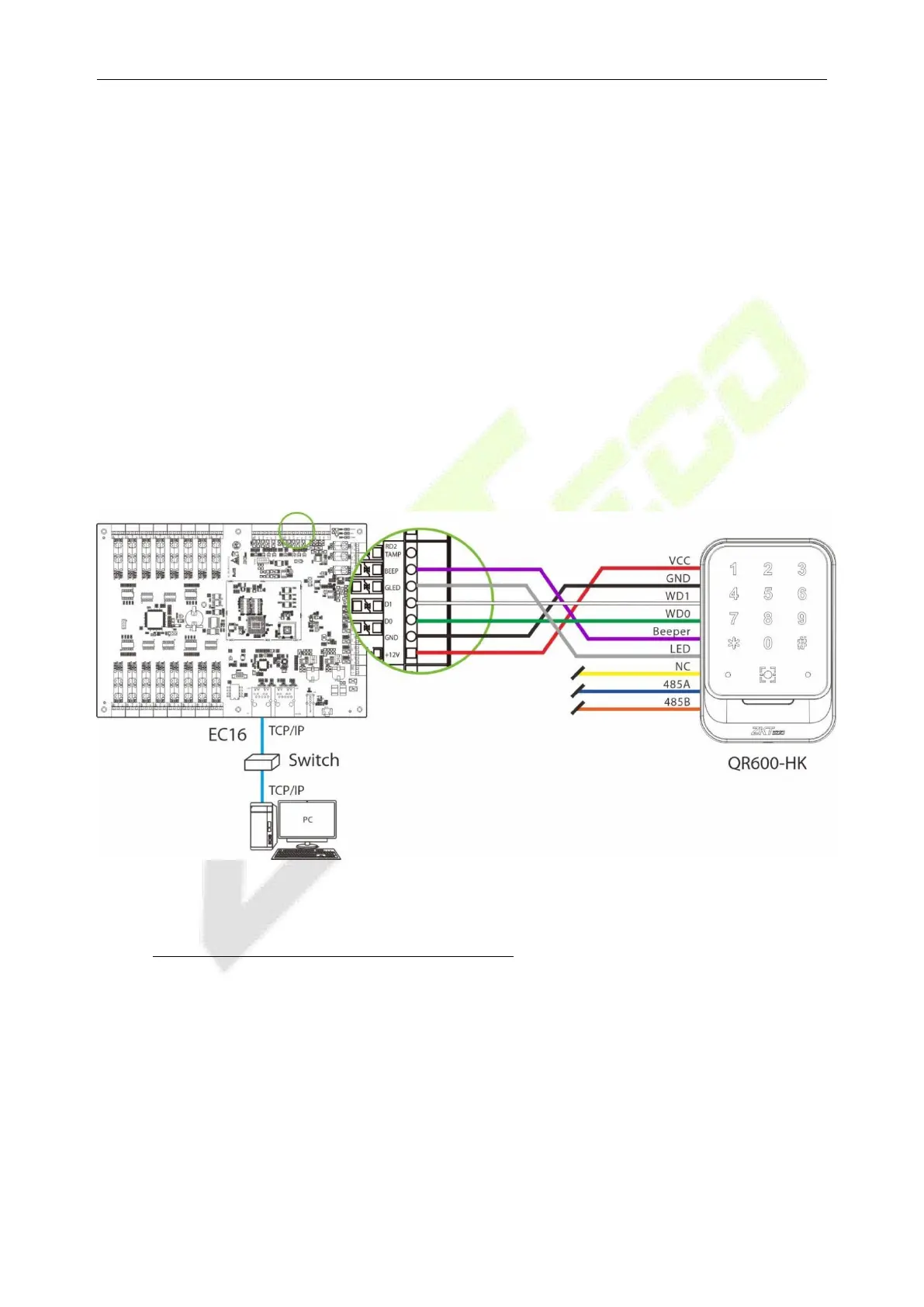

Figure 5- 3 Wiring Diagram of EC16 Elevator Controller and Wiegand Reader
5.1.6 Set Elevator Control Rules on Software
Note that when setting elevator control rules, when the "Direct Selection Set" function is set, other
floor permissions such as those set in "Elevator Levels", "Set Access By Levels", "Set Access By Person",
"Set Access By Department" will be invalid, when the "Direct Selection Set" function is canceled, the
floor permissions set will be valid again.
Note:
Elevator Levels, Set Access By Levels, Set Access By Person and Set Access By Department function are mainly
used as visitor authority.
