Ethernet Connection to the Computer
Connect the elevator controller and the computer software via Ethernet cable. The wiring is shown in
the following diagram.

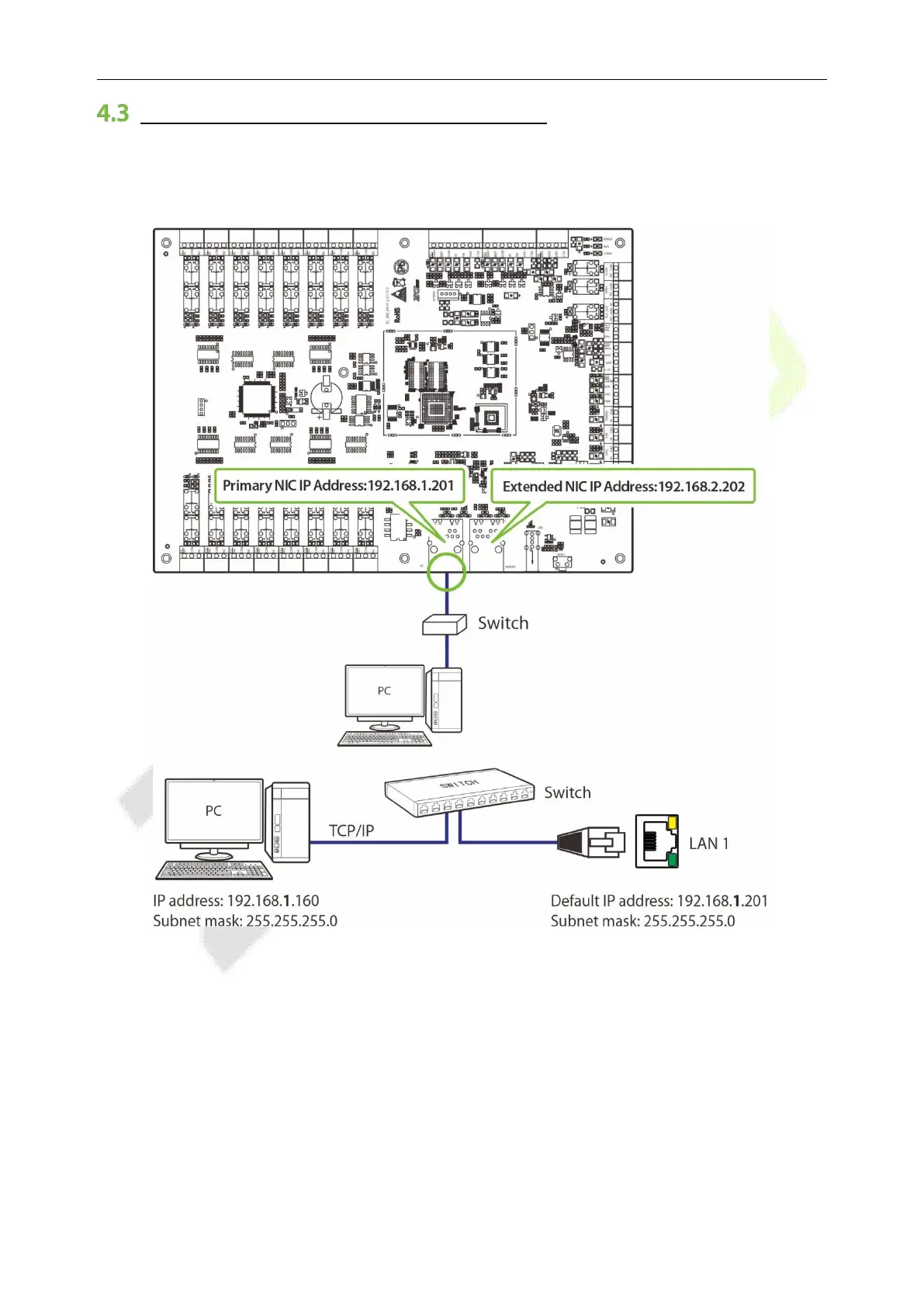

Figure 4-3 Ethernet wiring diagram
Note:
1. IP addresses can cross network segments, but they must belong to the same subnet, and the gateway
and IP address must be in the same network segment.
2. Dual Ethernetinterfaces:thedefaultIPaddress192.168.1.201forthe primaryNICand 192.168.2.202 for the
expansion NIC.
3. The IP address of the primary NIC can be set by yourself, and the network segment of the expansion NIC
must be 192.168.2.(1 to 253).
