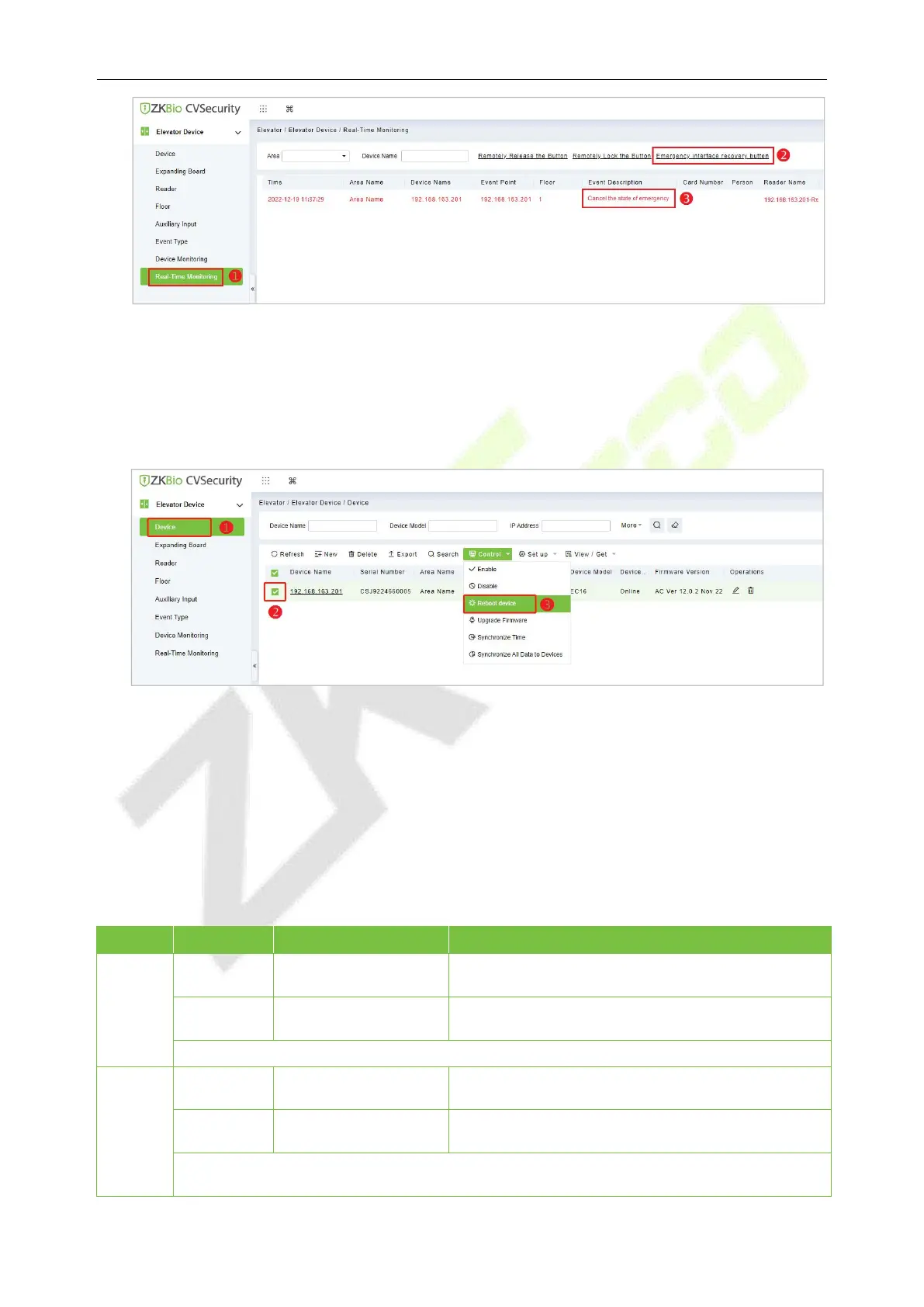

3. When the FIRE interface becomes a short circuit, all the keys of the elevator cannot be lit normally. If
you want to cancel the "fire" function, please log in ZKBio CVSecurity software, click [Elevator] >
[Elevator Device] > [Device] and then check the equipment that needs to restart, select [Control] >
[Restart device] to complete the restart of the elevator control equipment, see the following figure for
detailed steps.
4. When the TAMPER interface becomes a broken circuit, the system will push the tampering alarm
information in real time and send an alarm sound.
5. Fire and emergency functions require no software setup, just a hardware connection for use.
6. In this elevator controller system, the fire interface has the highest level, followed by the emergency
interface, and finally the manual interface.
7. When an alarm is connected to the auxiliary output of the controller, the status of the alarm and the
event description of the software side after the interface is short circuit or broken circuit are as follows.
Event description on the software
Real-time pushing of "manual button short circuit" information
and one alarm sound
Real-time pushing of "manual button short circuit" information
and one alarm sound
Note: The alarm can be canceled by disconnecting the "manual" interface of the elevator control equipment.
Real-time pushing of "emergency button short circuit"
information and one alarm sound
Real-time pushing of "emergency button short circuit"
information and one alarm sound
Note: The alarm can be cancelled by clicking the [Emergency Interface Recovery] button or by restarting the
device on the software side.
