EC16 Elevator Control Panel & DEX16 Elevator Floor Extension Board User Manual
P a g e | 44 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

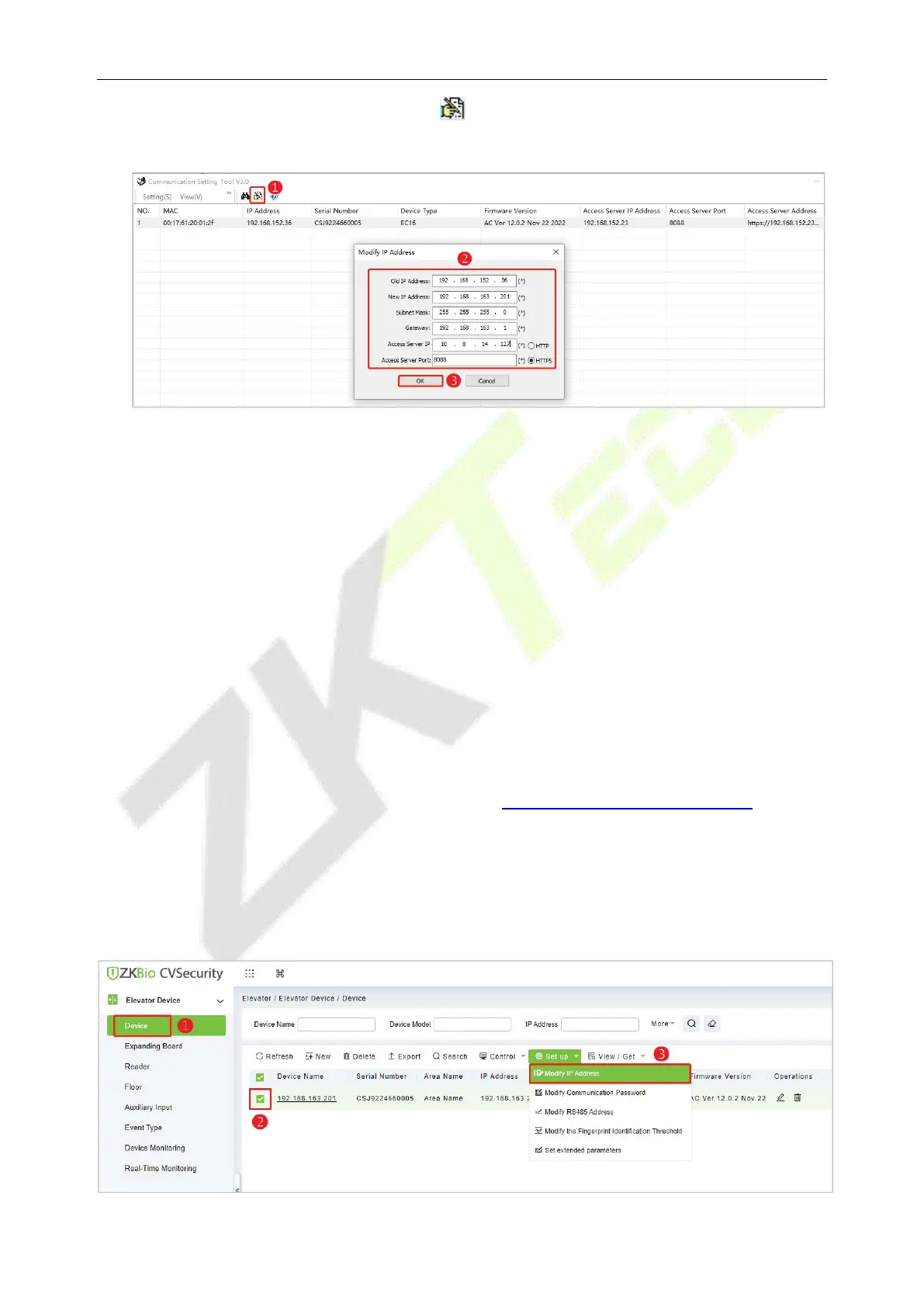

3. Select the device to be modified, click the icon to modify the IP address of the device, click
[
OK
] after setting the parameters, as the following figure shows.
Old IP Address: The IP address of the device. The factory default IP address of the device is:
192.168.1.201.
New IP Address:
The new IP address of the device.
Note: The IP address of the device and the IP
address of the computer must be in the same network segment.
Subnet Mask:
Default subnet mask 255.255.255.0, can be modified as needed.
Gateway:
Default gateway address 0.0.0.0, can be modified as needed.
Note: The gateway and
the IP address must be in the same network segment.
Access Server IP: The IP address of the ZKBio CVSecurity software server.
Access Server Port:
Enter the communication terminal number of the current system, which is
indicated under the "Search" pop-up window.
Modify the IP Address in the software
After adding devices successfully in the software (see 5.1.2 Add Device on the Software), you can
change the IP address in the device list field.
1. Click [
Elevator
] > [
Elevator Device
] > [
Device
] to enter the setting interface.
2. Check the added device in the device list.
3. Click [Set up] > [Modify IP address] to bring up the settings window.
