ZXR105900ESeriesCongurationGuide(IPv4Routing)

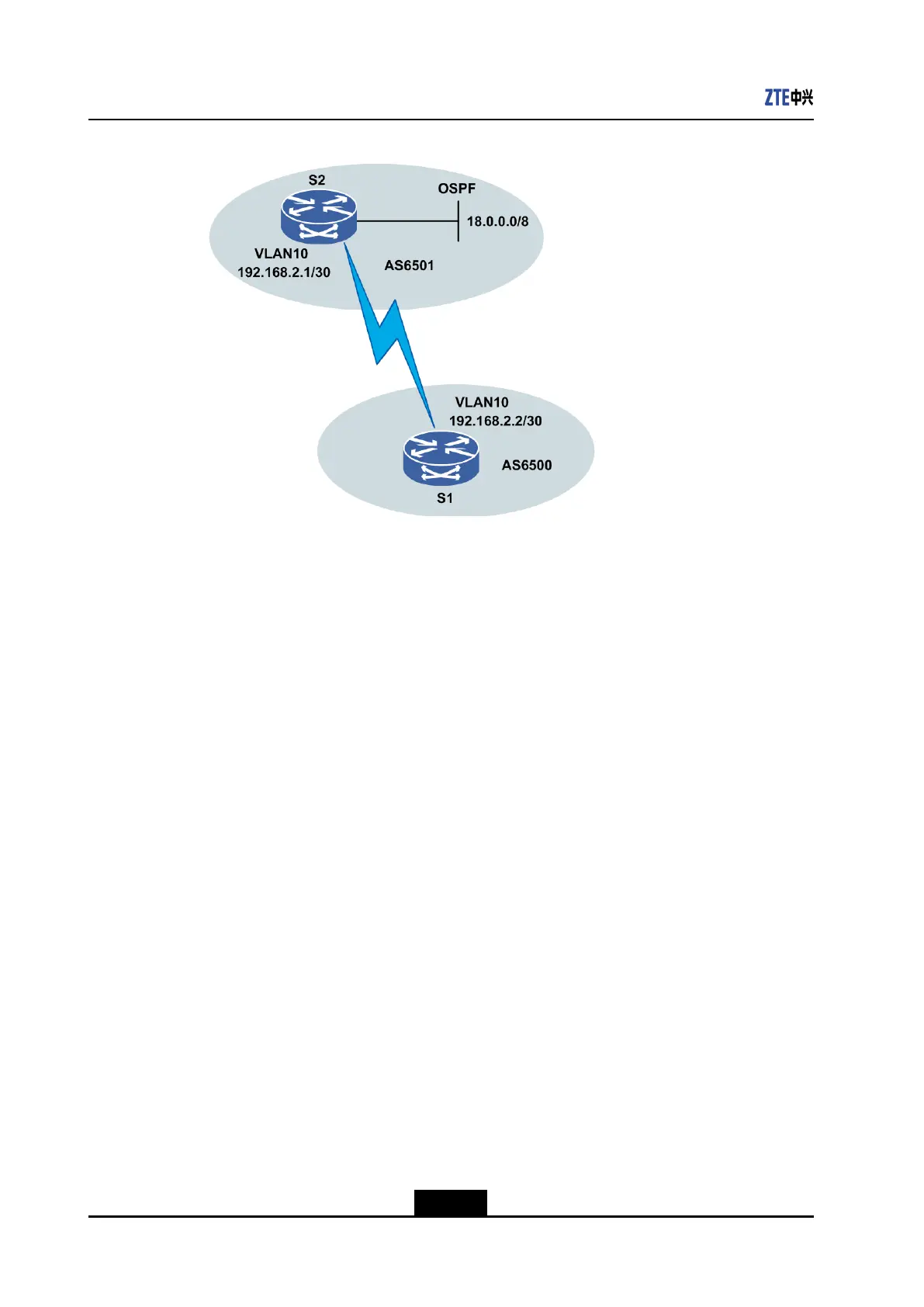

Figure5-7RedistributeOSPFRoutesbyUsingredistributeCommand
CongurationonS2:
S2#configterminal
S2(config)#interfacevlan10
S2(config-if-vlan10)#ipaddress192.168.2.1255.255.255.252
S2(config-if-vlan10)#exit
S2(config)#routerospf1
S2(config-ospfv2)#network18.0.0.00.0.0.255area0
S2(config)#exit
S2(config)#routerbgp65001
S2(config-bgp)#neighbor192.168.2.2remote-as65000
S2(config-bgp)#redistributeospf-int
S2(config-bgp)#redistributeconnected
S2(config)#exit
UseshowipbgproutetoviewBGProutingtableofS1.
S1#showipbgproute
Statuscodes:*-valid,>-best,i-internal,s-stale
Origincodes:i-IGP,e-EGP,?-incomplete
NetworkNextHopMetricLocPrfRtPrfPath
*>18.0.0.0/8192.168.2.12065001?
AddtheOSPFexternalroutetoS2andsetthemetricvalueas5.
S2#configterminal
S2(config)#interfacevlan10
S2(config-if-vlan10)#ipaddress192.168.2.1255.255.255.252
S2(config-if-vlan10)#exit
S2(config)#routerospf1
S2(config-ospfv2)#network18.0.0.00.0.0.255area0
5-20
