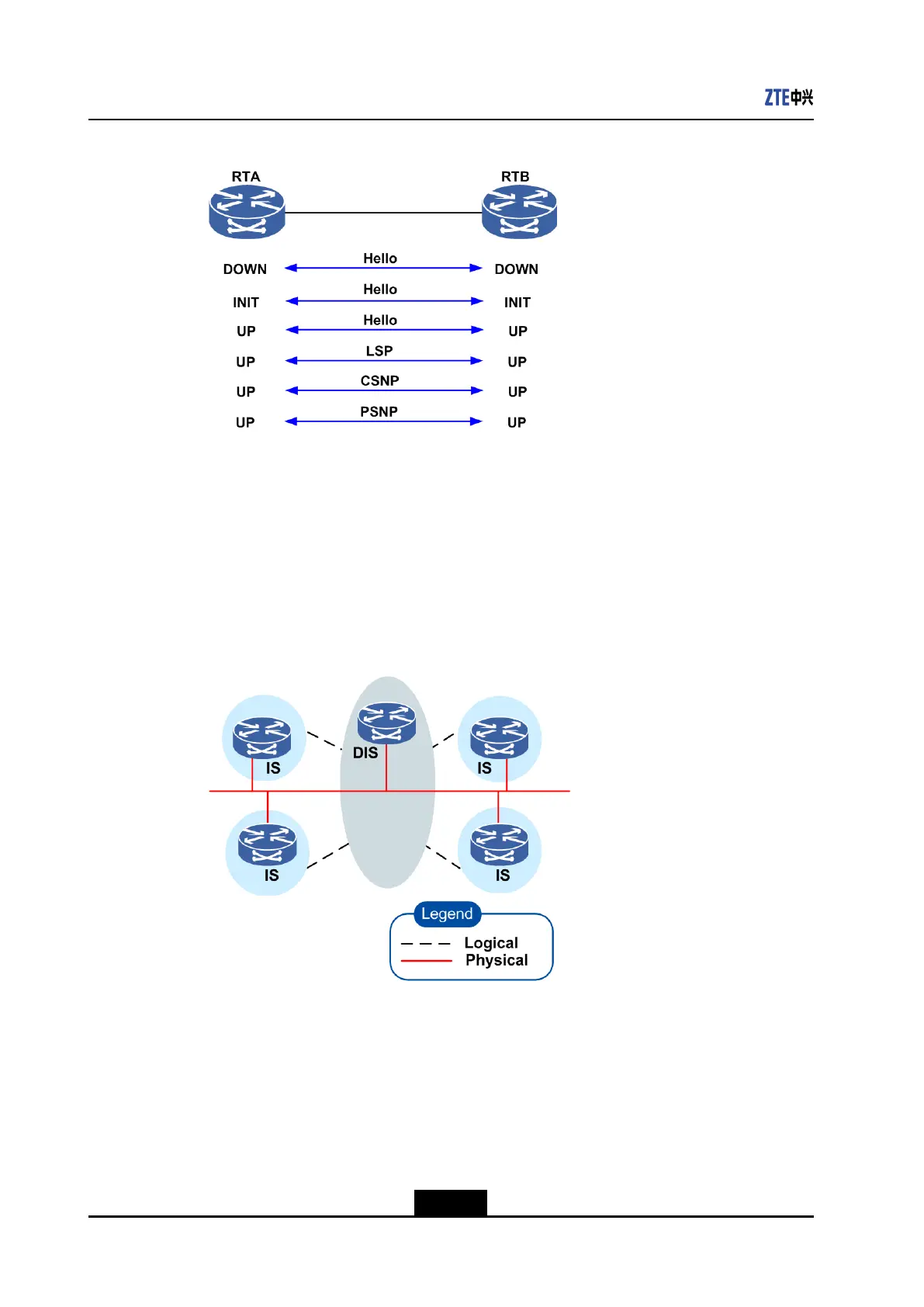

Figure4-4NeighborEstablishmentonaBroadcastNetwork
lDISelectiononabroadcastlink
TheIS-ISprotocolselectsaspeciedDesignateIS(DIS)toreducetheneighbor
informationcarriedintheLSPsentonthebroadcastnetworkandsimplifythenetwork
architecture.TheIS-ISprotocolconsidersthenetworkasaDISorapseudo-node.
Eachintermediatesystem,includingtheDISadvertiseslinkstothepseudo-node.The
DISalsoadvertisesalinktoallintermediatesystemsthatareconnectedwithitself,
seeFigure4-5.
Figure4-5DISonaBroadcastNetwork
ADISisthesystemthathasthehighestpriorityonabroadcastnetwork.Ifthepriorities
ofallintermediatesystemsarethesame,theintermediatesystemwiththegreatest
MACaddressistheDIS.Generally,eachnetworkhastwoDISs:theL1DISandthe
L2DIS.
TheconditionsforelectingaDISareasfollows:
àWhentheIS-ISprocessisstartedonarouter,theDISelectionisperformedafter
threeHellopacketsaresent
