P-660HW-T v2 User’s Guide
Chapter 12 Static Route 175
CHAPTER 12
Static Route
This chapter shows you how to configure static routes for your ZyXEL Device.
12.1 Static Route
Each remote node specifies only the network to which the gateway is directly connected, and
the ZyXEL Device has no knowledge of the networks beyond. For instance, the ZyXEL
Device knows about network N2 in the following figure through remote node Router 1.
However, the ZyXEL Device is unable to route a packet to network N3 because it doesn't
know that there is a route through the same remote node Router 1 (via gateway Router 2). The
static routes are for you to tell the ZyXEL Device about the networks beyond the remote
nodes.

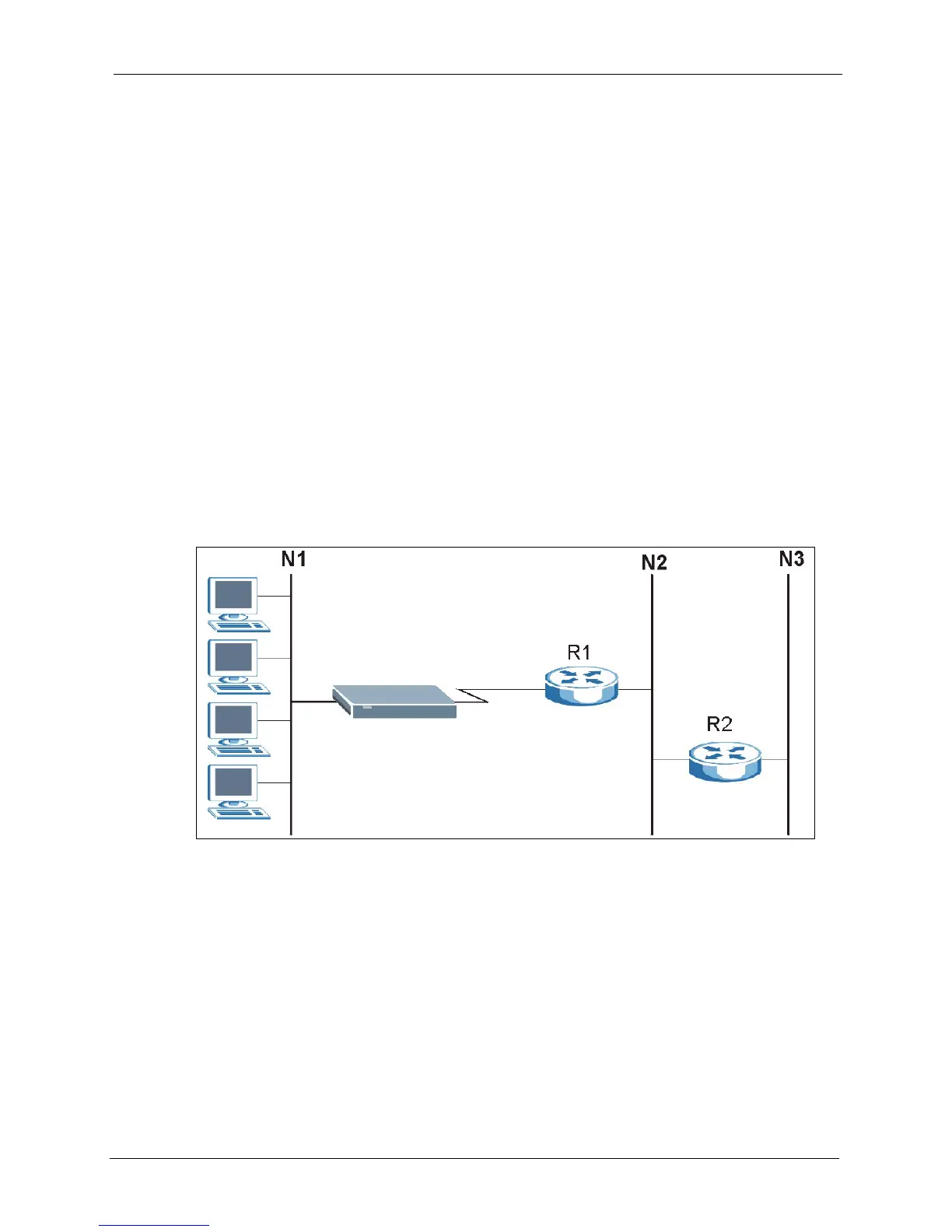

Figure 98 Example of Static Routing Topology
12.2 Configuring Static Route
Click Advanced > Static Route to open the Static Route screen.
