P-660HW-T v2 User’s Guide

Chapter 16 Universal Plug-and-Play (UPnP) 213

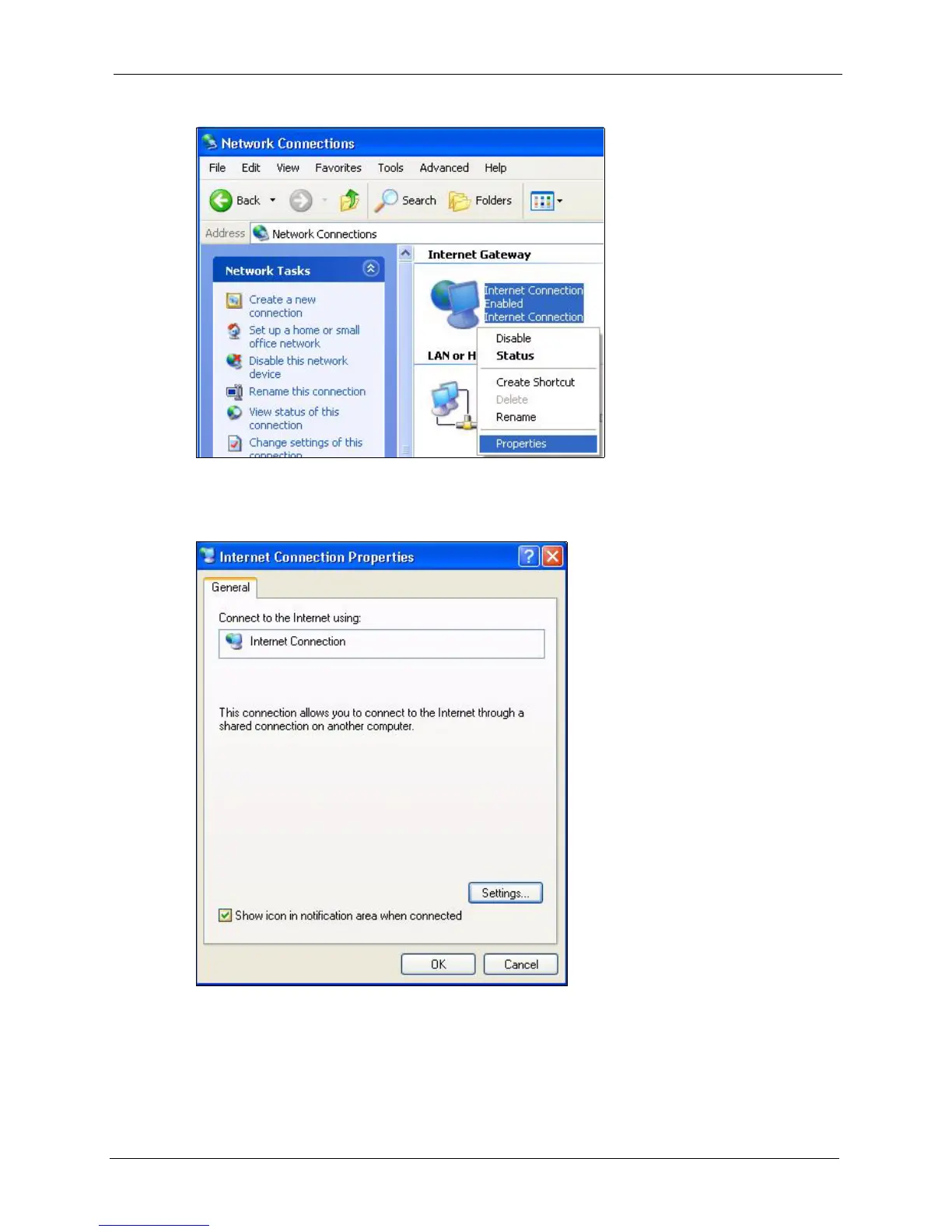

Figure 122 Network Connections

3 In the Internet Connection Properties window, click Settings to see the port mappings

there were automatically created.

Figure 123 Internet Connection Properties

4 You may edit or delete the port mappings or click Add to manually add port mappings.
