P-660HW-T v2 User’s Guide

216 Chapter 16 Universal Plug-and-Play (UPnP)

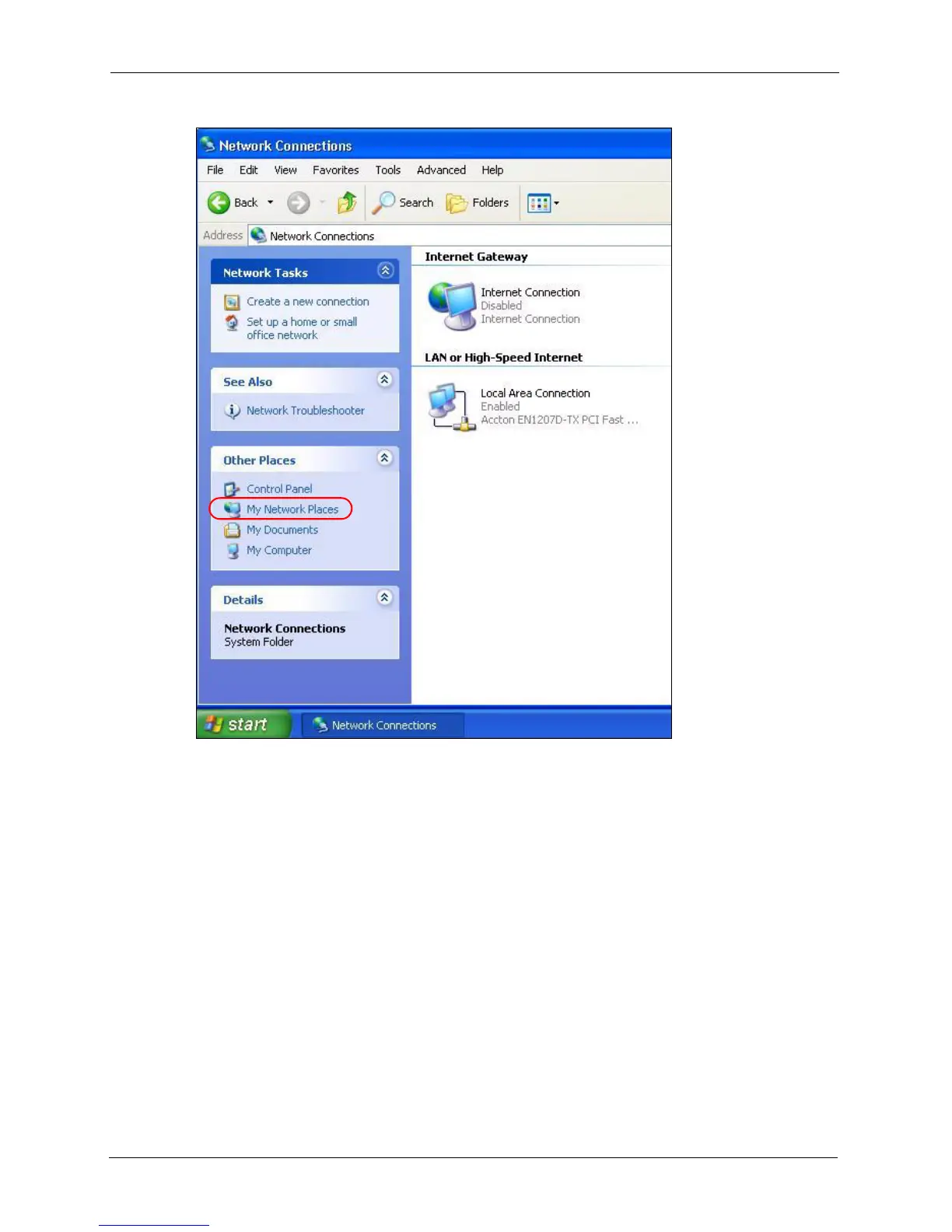

Figure 128 Network Connections

4 An icon with the description for each UPnP-enabled device displays under Local

Network.

5 Right-click on the icon for your ZyXEL Device and select Invoke. The web configurator
