P-660HW-T v2 User’s Guide

Chapter 16 Universal Plug-and-Play (UPnP) 215

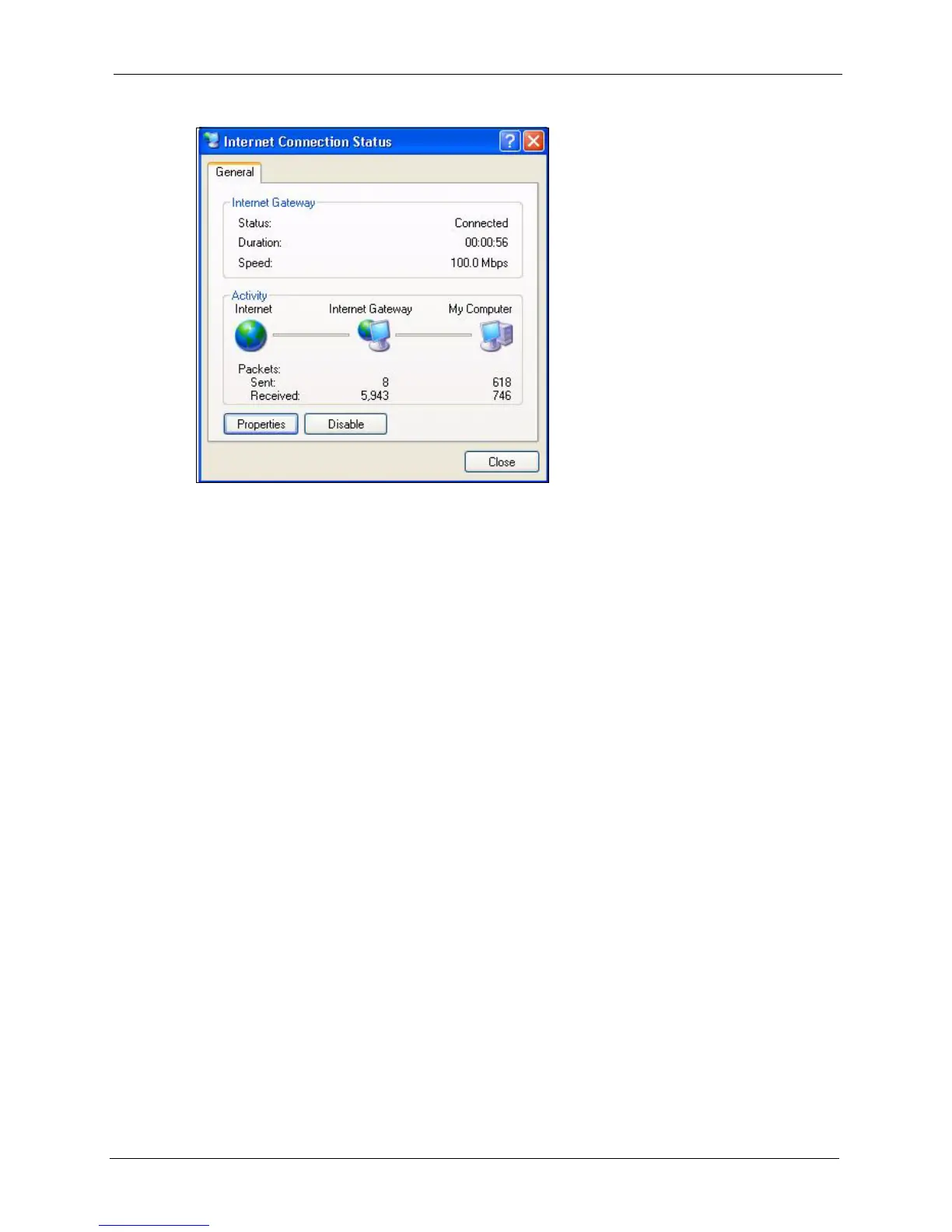

Figure 127 Internet Connection Status

16.4.2 Web Configurator Easy Access

With UPnP, you can access the web-based configurator on the ZyXEL Device without finding

out the IP address of the ZyXEL Device first. This comes helpful if you do not know the IP

address of the ZyXEL Device.

Follow the steps below to access the web configurator.

1 Click Start and then Control Panel.

2 Double-click Network Connections.

3 Select My Network Places under Other Places.
