P-660HW-T v2 User’s Guide

38 Chapter 1 Getting To Know Your ZyXEL Device

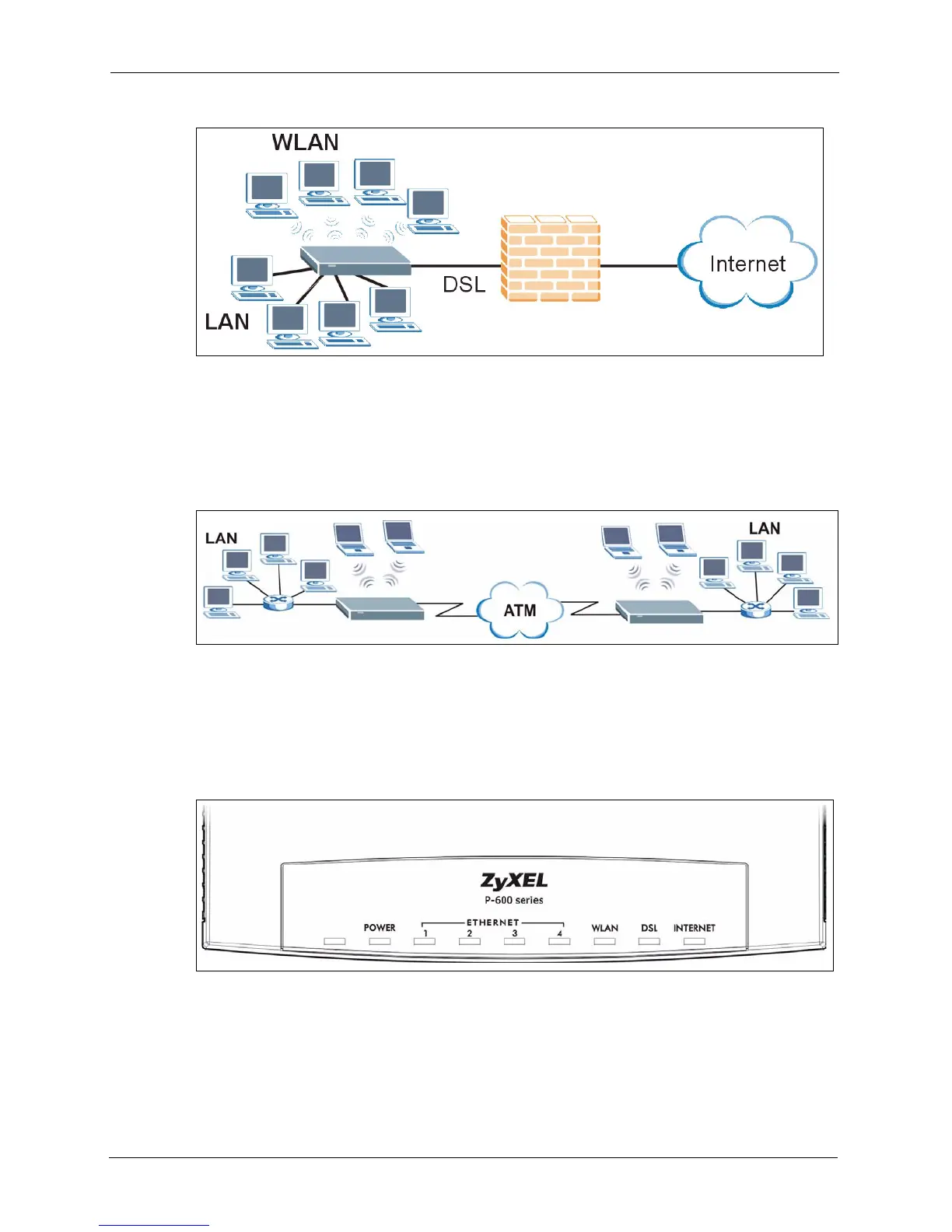

Figure 1 Protected Internet Access Applications

1.3.2 LAN to LAN Application

You can use the ZyXEL Device to connect two geographically dispersed networks over the

ADSL line. A typical LAN-to-LAN application example is shown as follows.

Figure 2 LAN-to-LAN Application Example

1.4 Front Panel LEDs

The following figure shows the front panel LEDs.

Figure 3 Front Panel
