P-660HW-T v2 User’s Guide

Chapter 19 Tools 247

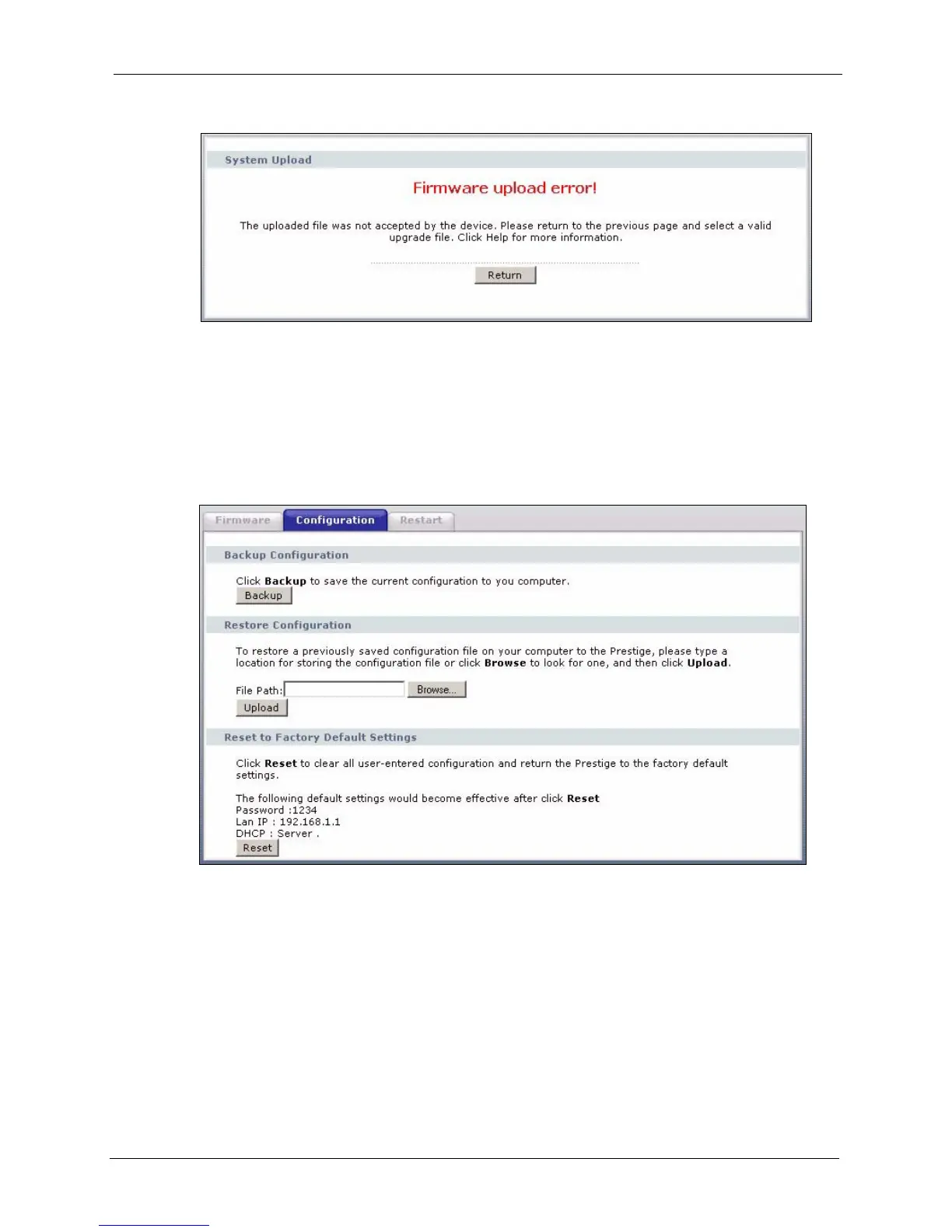

Figure 139 Error Message

19.2 Configuration Screen

Click Maintenance > Tools > Configuration. Information related to factory defaults, backup

configuration, and restoring configuration appears as shown next.

Figure 140 Configuration

19.2.1 Backup Configuration

Backup configuration allows you to back up (save) the ZyXEL Device’s current configuration

to a file on your computer. Once your ZyXEL Device is configured and functioning properly,

it is highly recommended that you back up your configuration file before making

configuration changes. The backup configuration file will be useful in case you need to return

to your previous settings.

Click Backup to save the ZyXEL Device’s current configuration to your computer
