P-660HW-T v2 User’s Guide

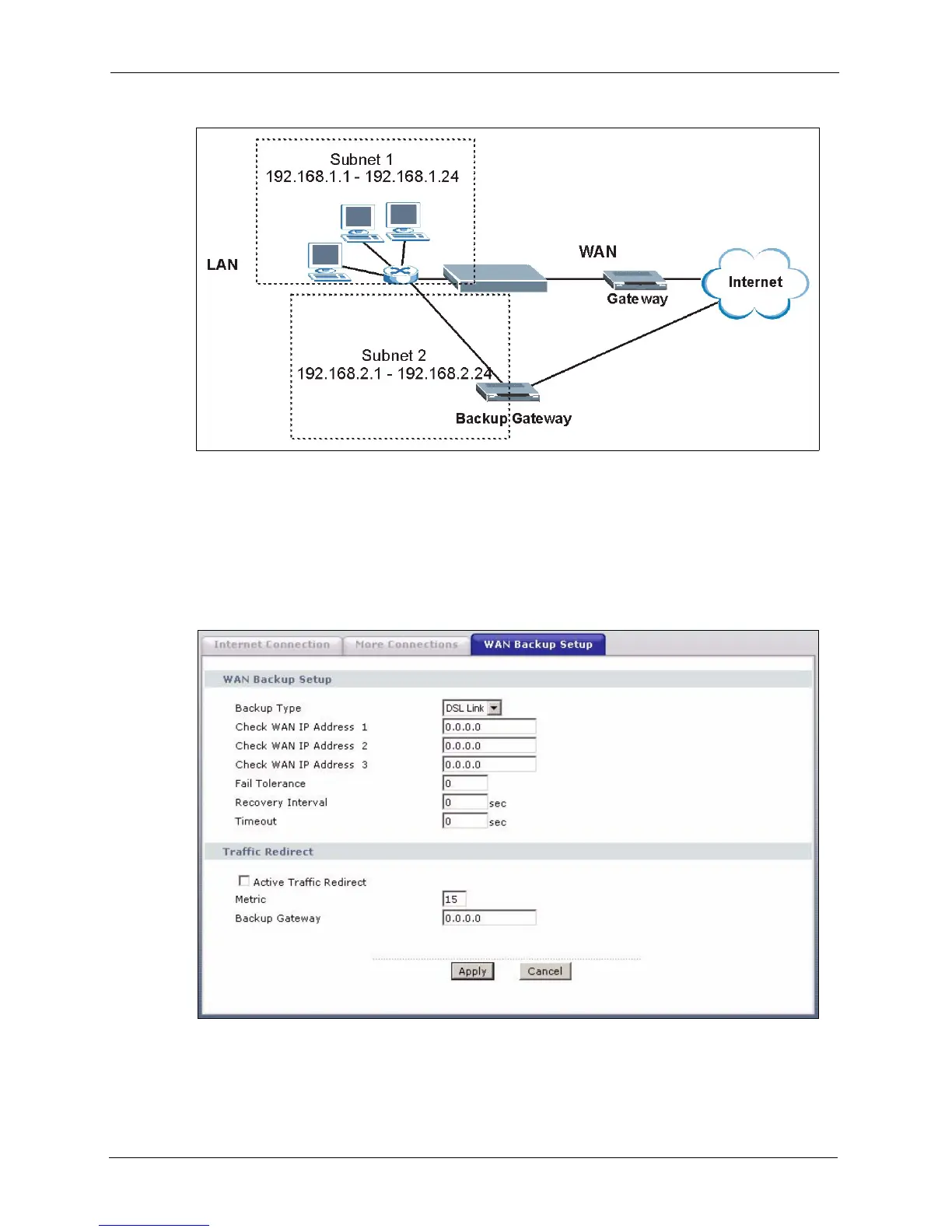

90 Chapter 5 WAN Setup

Figure 45 Traffic Redirect LAN Setup

5.8 Configuring WAN Backup

To change your ZyXEL Device’s WAN backup settings, click Network > WAN > WAN

Backup Setup. The screen appears as shown.

Figure 46 WAN Backup Setup
