P-660HW-T v2 User’s Guide

68 Chapter 3 Wizard Setup for Internet Access

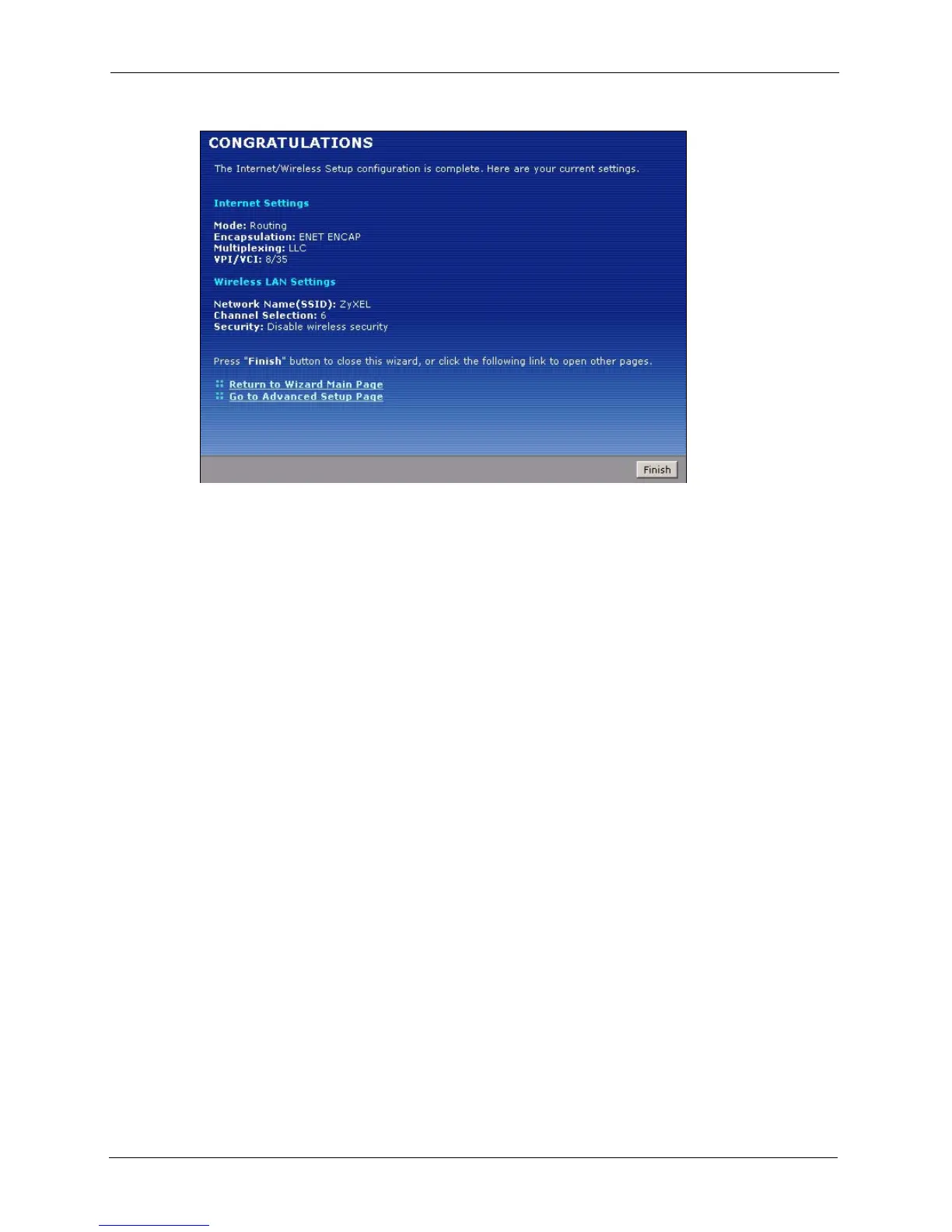

Figure 32 Internet Access and WLAN Wizard Setup Complete

7 Launch your web browser and navigate to www.zyxel.com. Internet access is just the

beginning. Refer to the rest of this guide for more detailed information on the complete

range of ZyXEL Device features. If you cannot access the Internet, open the web

configurator again to confirm that the Internet settings you configured in the wizard setup

are correct.
