P-660HW-T v2 User’s Guide

Chapter 4 Bandwidth Management Wizard 73

5 Follow the on-screen instructions and click Finish to complete the wizard setup and save

your configuration.

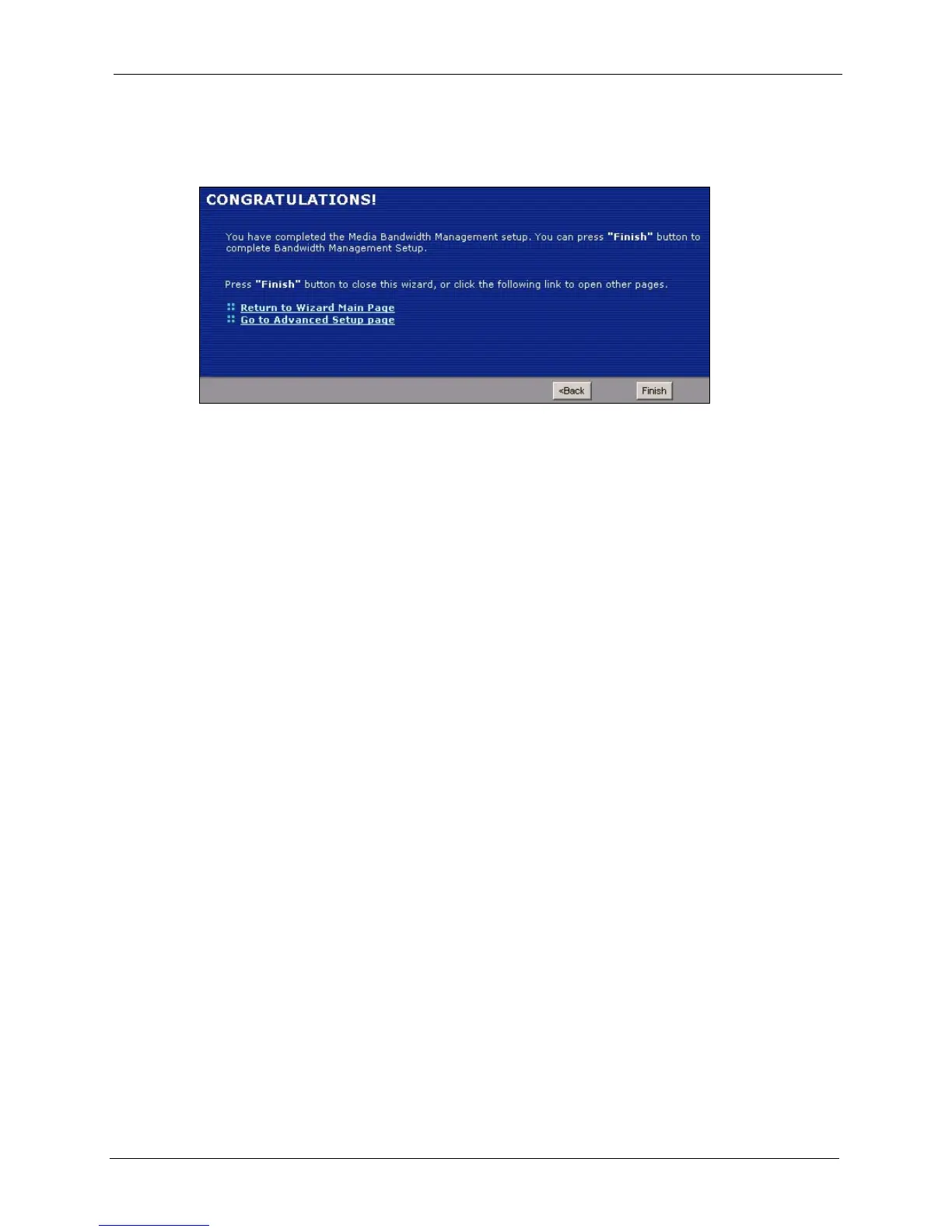

Figure 37 Bandwidth Management Wizard: Complete
