6 Base Station

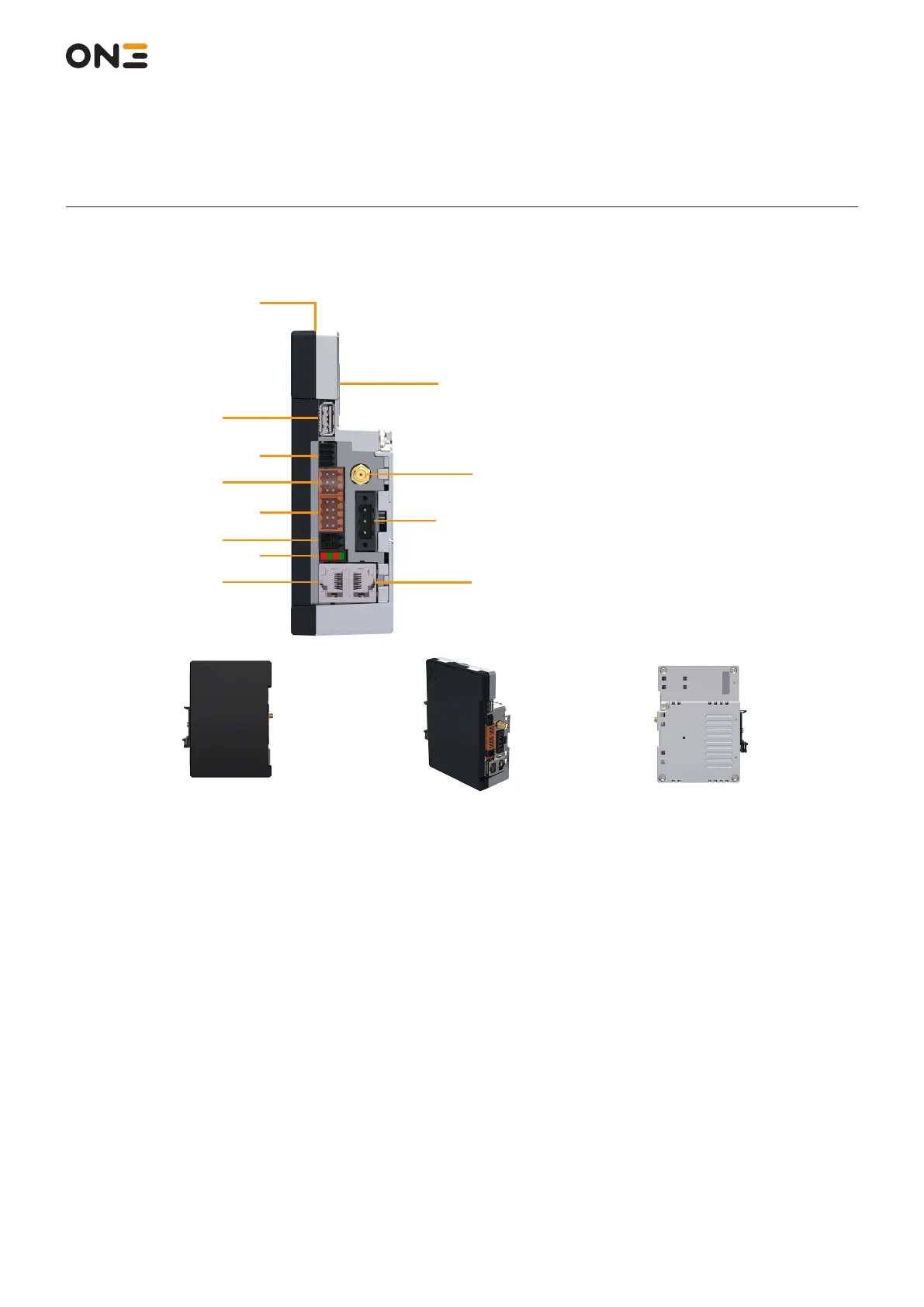

6.1 Overview
7
5
1
8
9
10
11
3 4
2
12
6
Base Station is a compact controller designed for machine installation with DIN bar. The device is equipped with several
communication ports for interfacing with various devices:
• 2 ports Ethernet 10/100 T-base
• 1 programmable Serial Port RS232/485/422
• 1 USB Host 2.0 port
• 1 SD-Card connector
• Support expansion modules (plug-ins)
• Safety Devices (relay outputs for emergency key and enabling device, Outputs for Selector)
The device is equipped with dual band Wi-Fi interface 2.4/5GHz, compatible IEEE 802.11a/b/g/n, on SMA connector
for external antenna.
1 Serial Port
2 Power Supply
3 Ethernet Port #1
4 Ethernet Port #0
5 USB Host
6 Plug-in Expansion Slot
7 SD Card Slot
8 Selector Outputs
9 Safety Module Outputs
10 Auxiliary I/O
11 Status LEDs
12 Wi-Fi Antenna
